Menu Item Descriptions

SmartTune

SmartTune™ automates the discovery of a clear
operating frequency. It does this by scanning all the
available operating frequencies within the system's fre-
quency block range (in 100 kHz increments) and then
selecting the frequency with the least amount of RF
interference. When SmartTune
to the Main Window displaying the selected operating
frequency.

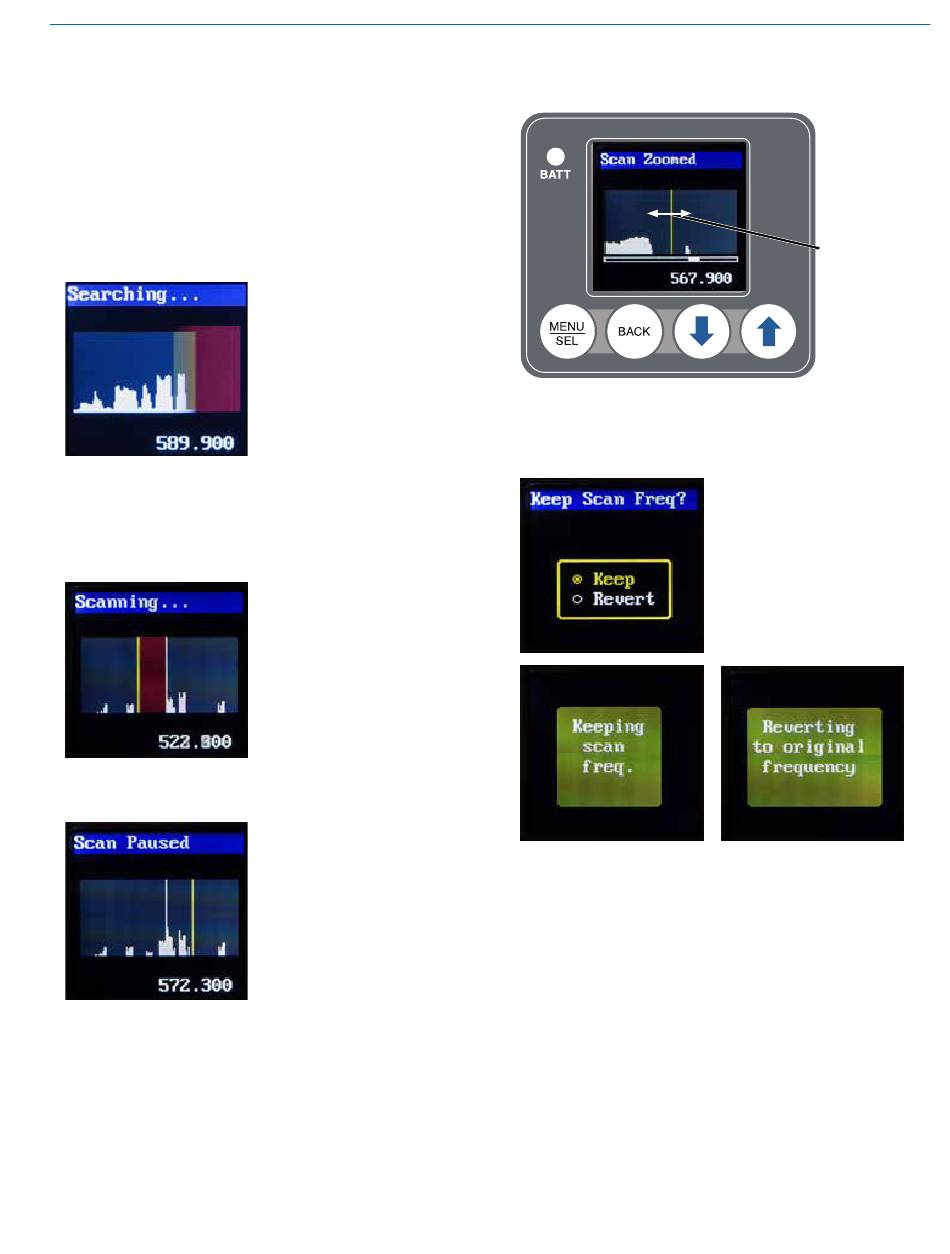

Scan

Use the scan function to identify a usable frequency.
The area in red has not been scanned. Allow the scan
to continue until the entire band has been scanned.
Once a full cycle has been completed, press MENU/
SELECT again to pause the scan.
Rio Rancho, NM
is complete, it returns
™
Digital IEM System with Encryption
Use the UP and DOWN arrows to roughly tune the
receiver by moving the cursor to an open spot. Press
MENU/SELECT to zoom in for fine tuning.
When a usable frequency has been selected, press
the BACK button for the option to keep your newly se-
lected frequency or to revert to where it was set before
the scan.
To capture this scan info in the transmitter and thus
make it available to wireless designer, use the SYNC
SCAN menu funtion in the M2T Transmitter.
Use the UP
and DOWN
arrows to
move the
cursor to
an open
frequency in
the spectrum
