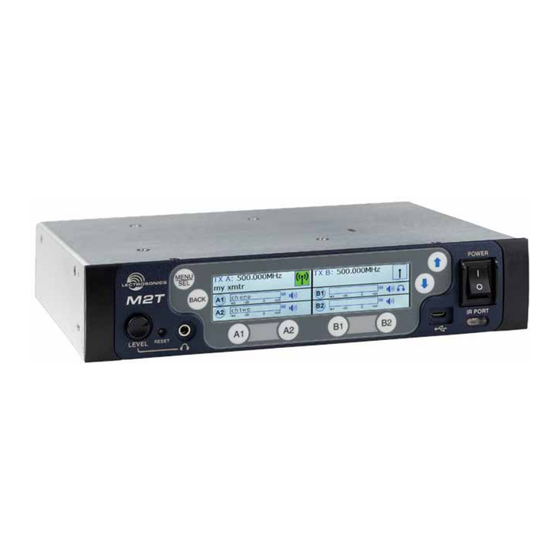

Lectrosonics M2T-X Series Instruction Manual

Digital iem transmitter with encryption
Hide thumbs Also See for M2T-X Series:
Table of Contents

Advertisement

Quick Links

Download this manual

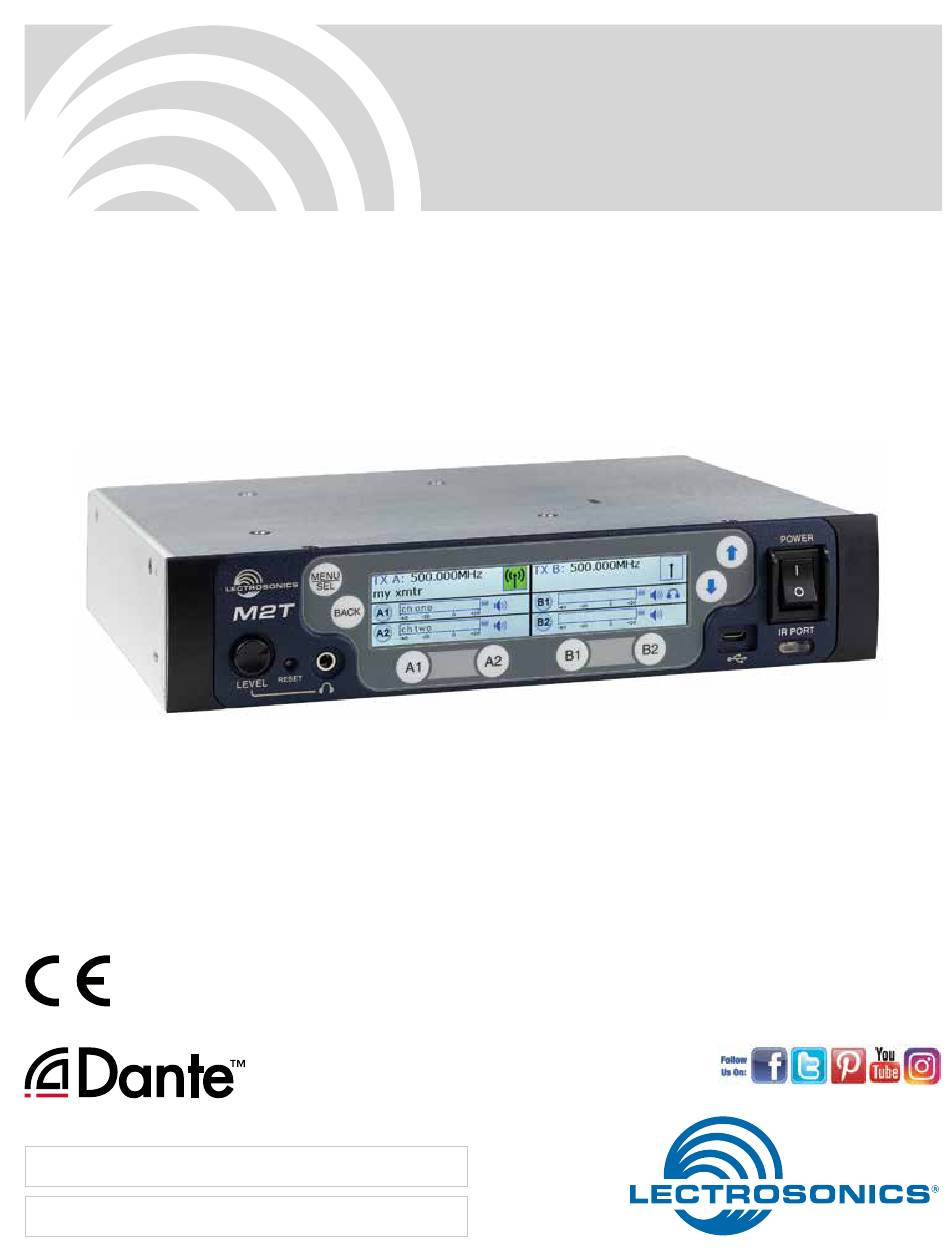

M2T-X* and M2T-X/ND*
Digital IEM Transmitter with Encryption
M2T-X Dante
M2T-X Non Dante
M2T-X/E01 Dante
M2T-X/E01 Non Dante
M2T-X/E06
Fill in for your records:
Serial Number:
Purchase Date:
INSTRUCTION MANUAL
* M2T-X is a firmware option for the M2T
allowing encryption and removing the
flexlist feature.
Rio Rancho, NM, USA
www.lectrosonics.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M2T-X Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lectrosonics M2T-X Series

Summary of Contents for Lectrosonics M2T-X Series

  • Page 1 M2T-X Dante M2T-X Non Dante M2T-X/E01 Dante M2T-X/E01 Non Dante M2T-X/E06 * M2T-X is a firmware option for the M2T allowing encryption and removing the flexlist feature. Fill in for your records: Serial Number: Purchase Date: Rio Rancho, NM, USA www.lectrosonics.com...
  • Page 2 M2T-X LECTROSONICS, INC.

  • Page 3: Table Of Contents

    Digital IEM Transmitter Table of Contents Introduction ................4 Encryption ................4 What is Dante? ..............4 System Setup Procedures ............5 Summary of Steps ...............5 Panels and Features ..............6 M2T Front Panel ..............6 M2T Back Panel ..............6 Operating Instructions ............7 IR (infrared) Port ..............7 USB Port ................7 Headphone Volume Adjustment ...........7 Dante Ports (optional) ............7...

  • Page 4: Introduction

    For instances where your audio transmis- sion needs to be kept secure, without sacrificing audio quality, Lectrosonics introduces Encryption Keys. Truly entropic encryption keys are first created by the M2T-X Transmitter. The key is then synced with an encryption capable receiver via the IR port.

  • Page 5: System Setup Procedures

    Digital IEM Transmitter System Setup Procedures Summary of Steps 1) Connect M2T power using supplied DCR15/4AU power supply, and power on the transmitter (RF off). 2) Power receiver and scan RF spectrum on site. 3) Sync Scan to transfer information from receiver to transmitter.

  • Page 6: Panels And Features

    Power switch buttons previous screen Headphone Volume Headphone Jack USB Port IR Port Adjustment Channel Function Buttons/ Quick Sync M2T Back Panel Antenna Antenna Jack Dante Ports (optional) Jack XLR/TRS Combo Analog Ethernet Port Input Connectors Power Inlet LECTROSONICS, INC.

  • Page 7: Operating Instructions

    Power Screens When powering on the M2T, there are two screens that IR (infrared) Port appear in the following order, Duet and Lectrosonics: Settings, including frequency, name, limiter, mix mode, encryption keys, etc. can be transferred to and from the M2T transmitter via this port to an IR enabled receiver to simplify setup.

  • Page 8: Lcd Menu Map

    Use arrow keys Press SEL to DEFAULTS DEFAULTS to select yes BACK execute or no No selections available; for ABOUT ABOUT BACK information purposes only LINKS LINKS No selections available; use phone to scan QR code BACK for more information LECTROSONICS, INC.

  • Page 9: Menu Item Descriptions

    Digital IEM Transmitter Menu Item Descriptions Sync Settings Allows sending or retrieving setup data, including fre- RF Enable/Level quency, name and talkback settings, via the IR port. Sync options: Choose to send frequency, send all Allows RF transmission to be turned on and off and set settings, retrieve (get) frequency or retrieve (get) all RF levels at 10, 25 or 50 mW.

  • Page 10: Audio Polarity

    • Universal: This is the most convenient en- cryption option available. All encryption-capable • Startup RF state Lectrosonics transmitters and receivers contain • Quick Sync Mode the Universal Key. The key does not have to be Sync All: A long (1 second) press of generated by the M2T-X.

  • Page 11: Edit Names

    Management for more information. Links 3. A message will pop up on the screen warning the QR codes with links to the Lectrosonics website, the user that all receivers will need a new key. Select M2T User Manual online and YouTube video tutorials.

  • Page 12: Wireless Designer Software

    The other end of the cable would normally be a USB A-Type male con- nectorto fit the most common type of USB jack used on computers. Refer to Help in Wireless Designer software for the procedure. LECTROSONICS, INC.

  • Page 13: Hardware Installation

    Digital IEM Transmitter Hardware Installation DCR15/4AU DC power supply 21926 Cable USB 35800 Hex L 25991 Bracket key wrench front tie 25990 Bracket rear tie 27076 Rack flange bracket 27082 Rack handle 35959 Hole Plug (4) 28885 SCR10 cap screw (4) 35664 Rubber foot large (2) A500RA20...

  • Page 14: Installing Two M2T Transmitters Into A Single Rack Space

    NOTE: The retaining nuts on the panel and tie brackets are “tensioning lock nut” types designed to prevent the screws from coming loose due to vibration. You will usually feel resistance as you tighten the screws - this is normal. LECTROSONICS, INC.
  • Page 15 Digital IEM Transmitter Rear tie bracket (Part #25990) Tensioning lock Front tie bracket nuts on the rear (Part #25991) side of the bracket 6. Install one side of the front tie bracket (Part #25991) Slide the other transmitter over the tie bracket and into the side panel opening in one of the transmit- insert the screws, but do not tighten them complete- ters.

  • Page 16: Accessories

    RMPM2T-1 Rack kit for mounting one M2T into a single rack space ARG 25; ARG 50; ARG 100 Antenna cable of Belden 9913F low-loss coax cable with BNC connectors at each end. Number speci- fies length in feet. LECTROSONICS, INC.

  • Page 17: Specifications

    Digital IEM Transmitter Specifications RF Power Output: • Two carriers; two audio channels each • M2T: Power adjustable on each carrier to 10, 25 or 50 mW • M2T/E06: Power adjustable on each carrier to 20, 50 or100 mW EIRP Antenna Output: 2 x BNC sockets Operating Frequencies:...

  • Page 18: Service And Repair

    LECTROSONICS’ Service Department is equipped and staffed to quickly repair your equipment. In warranty repairs are made at no charge in accordance with the terms of the warranty. Out-of-warranty repairs are charged at a modest flat rate plus parts and shipping.
  • Page 19 Digital IEM Transmitter ISEDC Notices: Per RSS-210 This device operates on a no-protection no-interference basis. Should the user seek to obtain protection from other radio services operating in the same TV bands, a radio licence is required. Please consult Industry Canada’s document CPC-2-1-28, Optional Licensing for Low-Power Radio Apparatus in the TV Bands, for details.
  • Page 20 This warranty does not apply to used or demonstrator equipment. Should any defect develop, Lectrosonics, Inc. will, at our option, repair or replace any defective parts without charge for either parts or labor. If Lectrosonics, Inc. cannot correct the defect in your equipment, it will be replaced at no charge with a similar new item.

This manual is also suitable for:

M2t-x non danteM2t-x nd seriesM2t-x danteM2t-x/e01 danteM2t-x/e01 non dante
