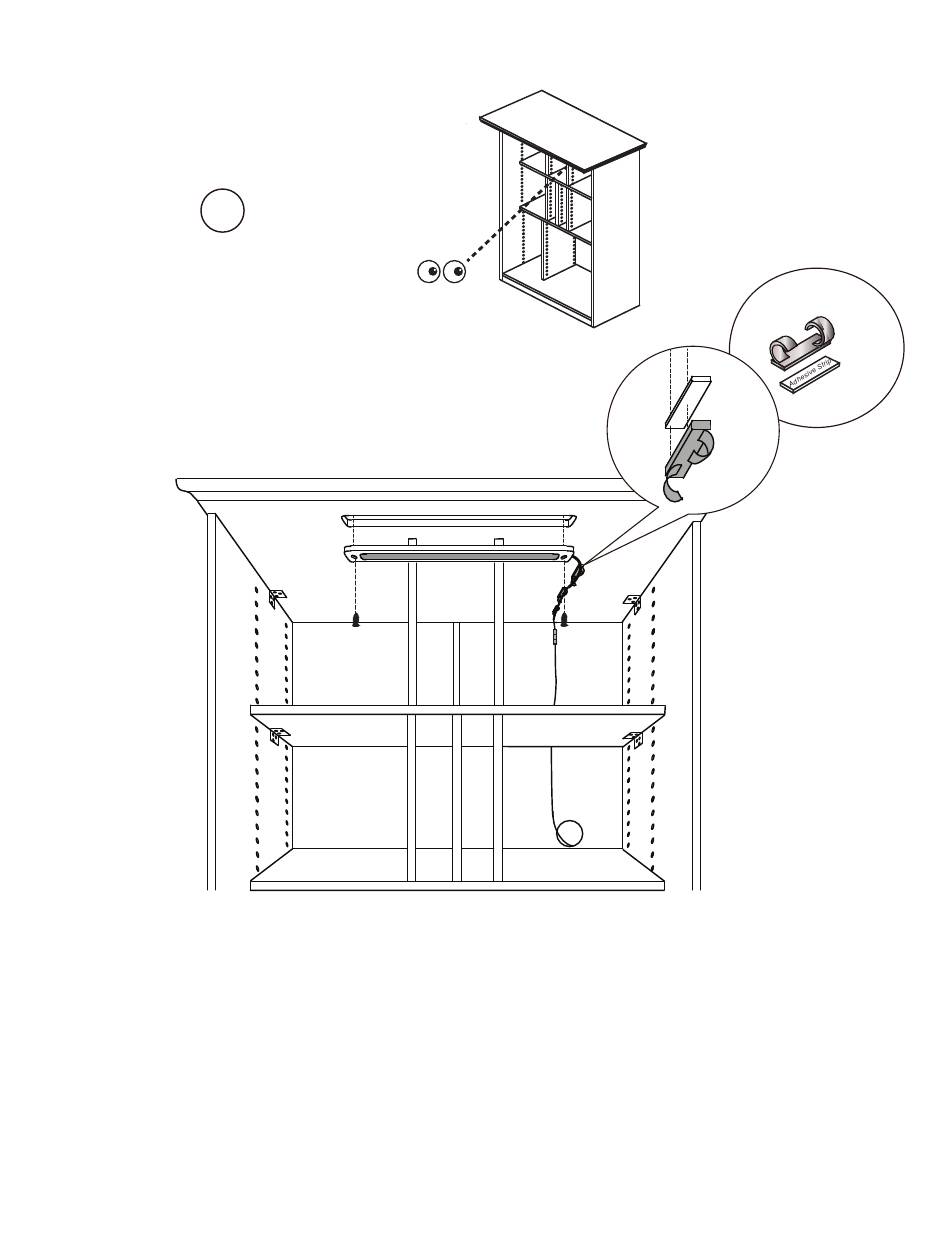

22 - To install light into CenterBox crown top, remove 2 rubber plugs and t light strip into crown top opening.
22. To install light into Center Box crown top, remove 2 rubber plugs and fit light strip
Make sure cord is on the right as shown. Attach light strip with two 14 mm screws. Be sure the electrical
into crown top opening. Make sure cord is on the right as shown. Attach light strip with
cord is to the side of the pilot hole when screwing in. Cover screws with 2 rubber plugs.
two 14mm srews. Be sure the electrical cord is to the side of the pilot holes when screw-
Install electrical wire clips as shown, 3 on the crown top and 1 on the back panel. Feed cord through electrical
ing in. Cover screws with 2 rubber plugs.
wire clips and down the back panel. You may need to push back the back panel to insert behind the shelf.
Attach electircal wire to transformer with plug.
Install electrical wire cord clips as shown, 3 on the crown top and 1 on the back panel.
Feed cord through electrical wire clips and down the back panel. You may need to push
back the back panel to insert behind the shelf. Attach electrical wire to transformer with
plug.
21 Proprietary, patented product and assembly instructions. Do not copy or distribute.
Custom LED light Install
22
Center Box
Electrical Wire Clips
4
x
