ScrapBox HER HOBBYBOX Assembly Instructions Manual page 19

Acrylic guard install
*Always use washer
to prevent acrylic guard
from cracking

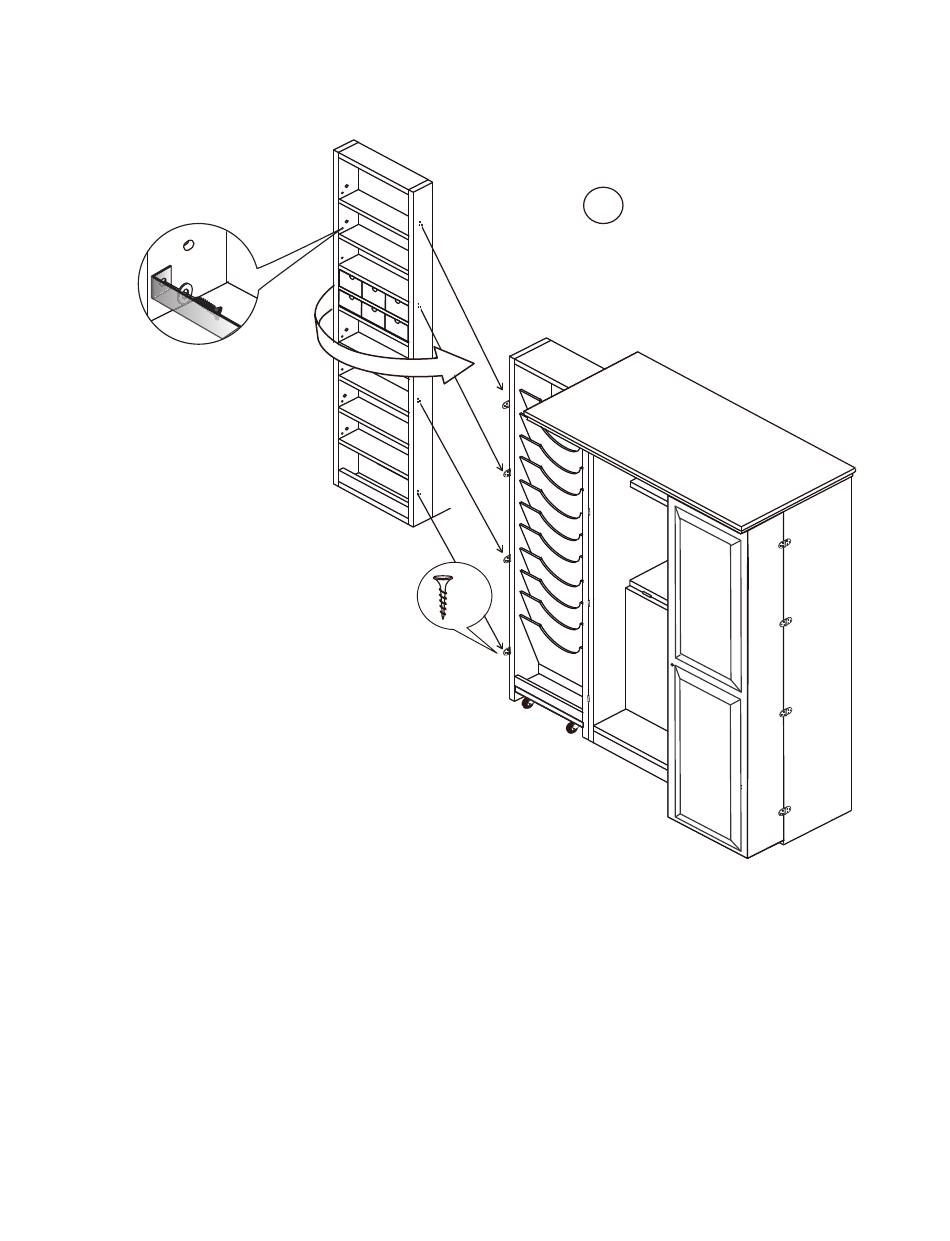

20. Attach Left Box with Shelves to Left Waterfall Box using 12mm screws. 4 hinges
should already be attached to the waterfall box.
20 – Attach Left Box with Shelves to LEFT Waterfall Box using
attached to the waterfall box.
See acrylic guard install in above picture (7 acrylic guards, (14) 10mm screws and 14
washer included in hardware).
See acyrlic guard install in above picture (7 acrylic guards, 14 - 10 mm
Install crystal door knobs.
screws and 14 washers included in hardware.)
DO NOT OVER TIGHTEN. DAMAGES DURING ASSEMBLY MAY NOT BE
Install crystal door knobs.
COVERED BY WARRANTY.
DO NOT OVER TIGHTEN. DAMAGES DURING ASSEMBLY MAY NOT BE COVERED BY WARRANTY.
19 Proprietary, patented product and assembly instructions. Do not copy or distribute.
Left Box with Shelves
12mm
20
12mm screws. 4 hinges should already be
