ScrapBox HER HOBBYBOX Assembly Instructions Manual page 11

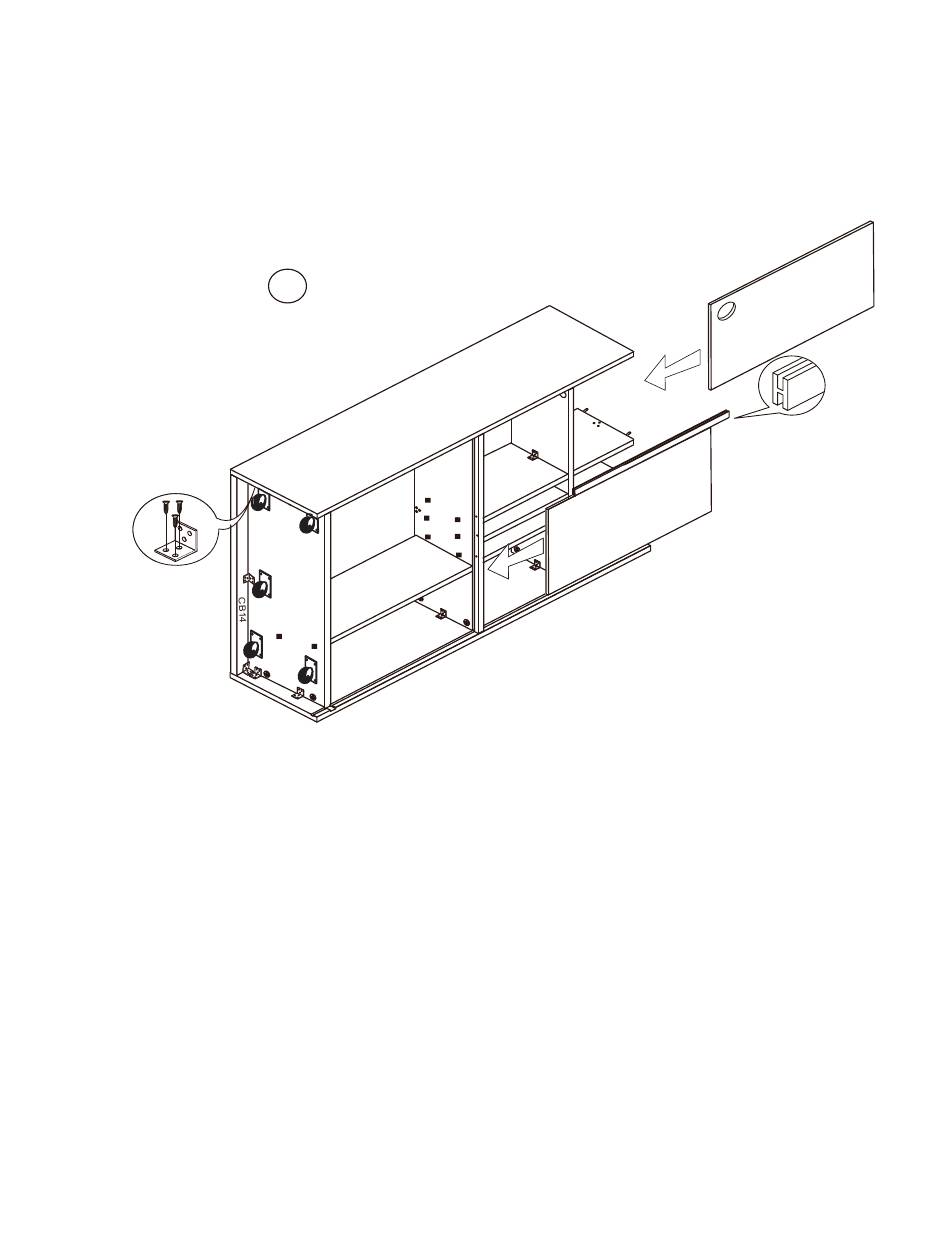

12. Add:
2 angle brackets attaching CB5 to CB2,
12 - Add: angle brackets attaching CB5 to CB2
1 angle bracket attaching CB14 ot CB2
1 angle bracket attaching CB14 to CB2
– Place CB11 (Upper Back Panel WITHOUT hole) into upper groove of CB1.
- Add LONG Back Panel Center Strip.
Place CB11 (Upper Back panel WITHOUT hole) into upper groove of CB1.
- Slide CB10 (Upper Back Panel WITH hole) into CB2 groove and Center Strip as shown.
Add Long Back Panel Center Strip
(CB10 and CB11 will NOT b
Slide CB10 (upper back panel WITH hole) into CB2 groove and Center Strip as shown.
and CB11 are secure into groove of CB3.)
*CB10 and CB11 will NOT be flush with CB1 and CB2. They will extend out about 1/4". Make sure
CB10 and CB11 are secure into the groove of CB3.
11 Proprietary, patented product and assembly instructions. Do not copy or distribute.
12
CB2
CB3
CB5
CB6
ush with CB1 and CB2. They will extend out about 1/4". Make sure the CB10
CB4
CB8
CB7
CB11
CB1
CB10
Long Back Panel Center Strip
