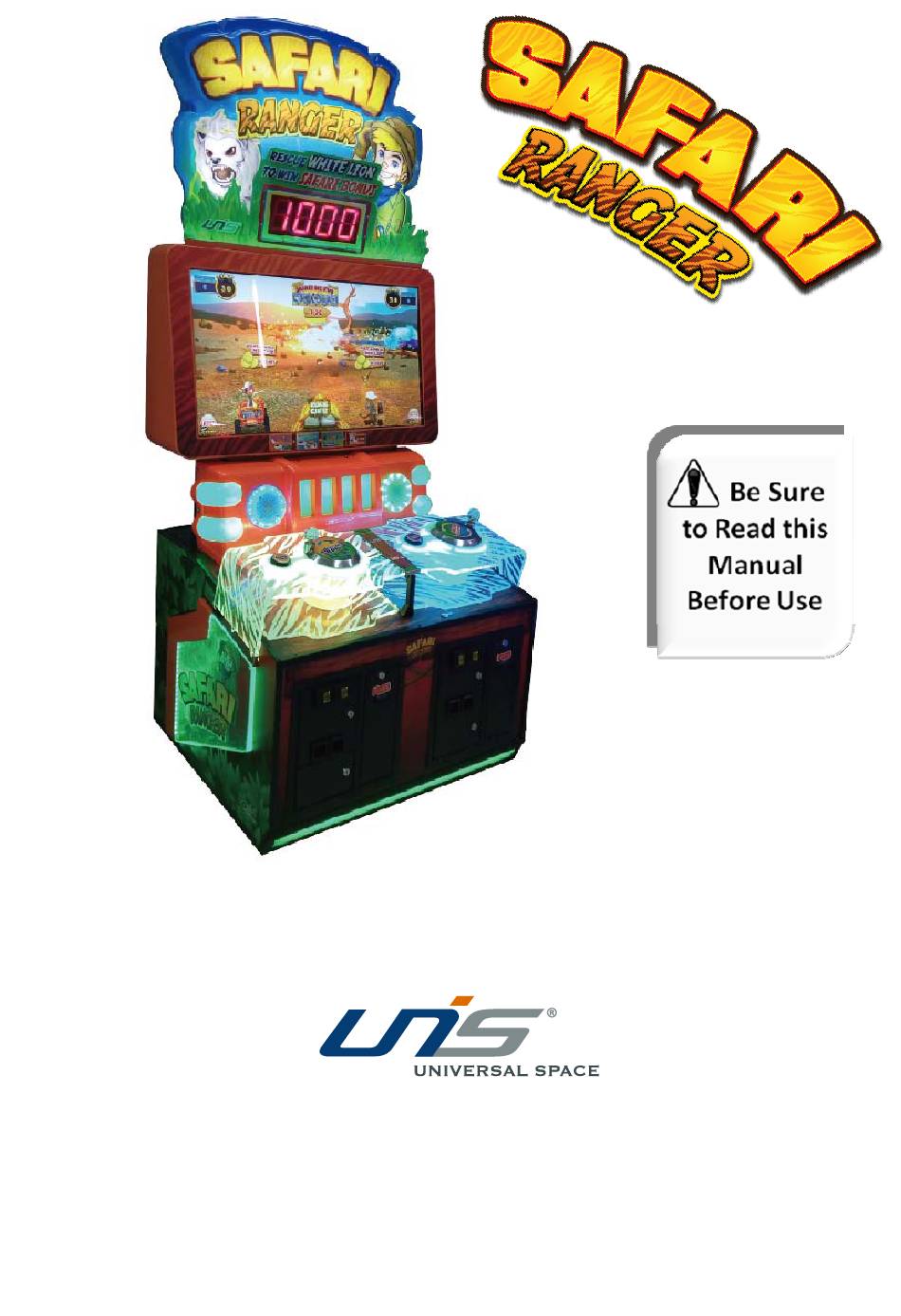

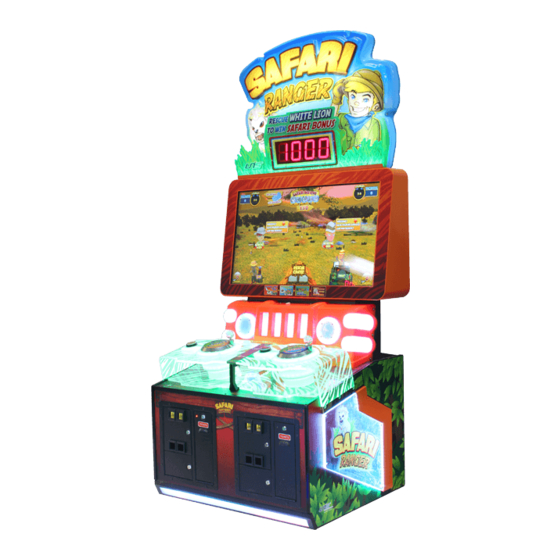

  • Page 1 Operation Manual    www.universal-space.com...

  • Page 2: Table Of Contents

    Safari Ranger Rev1.02 Manual CONTENT Important Safety Instructions...................2 1. SPECIFICATIONS ....................4 2. PACKAGE CONTENTS ................... 5 3. PART NAMES ......................6 4. SET UP & INSTALLATION ..................7 5. HOW TO PLAY ...................... 10 6. GAME OPTION ....................11 7.

  • Page 3: Important Safety Instructions

    Safari Ranger Rev1.02 Manual Thank you for purchasing Safari Ranger from Universal Space. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 4 Safari Ranger Rev1.02 Manual safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...

  • Page 5: Specifications

    Safari Ranger Rev1.02 Manual 1. SPECIFICATIONS Rated power supply: AC220-240V 50/60Hz Min. Power consumption: 120W Max. Power consumption：150W Dimensions： W1017×D850×H2458 (mm) Weight： Approximately 250kg NOTICE: After turning off the game, please wait at least 1 minute before restarting again. Note: Game parameters are subject to change without notice.

  • Page 6: Package Contents

    Safari Ranger Rev1.02 Manual 2. PACKAGE CONTENTS Open the package and make sure all the items are included:  1 x Body Assembly  Following accessories Part number Code Name Qty Illustration SPEC. S123-469-000 25300172002 171B S123-468-000 25300171002 Φ5×20mm T5A...

  • Page 7: Part Names

    Safari Ranger Rev1.02 Manual 3. PART NAME Marquee Safari BONUS Display 42” Monitor Truck head Speaker Vacuum form Reel Controller Rescue Animal Button Ticket Dispenser Coin Mech...

  • Page 8: Set Up & Installation

    Safari Ranger Rev1.02 Manual 4. SET UP & INSTALLATION This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 2) for places to avoid  Place the unit on a dry level surface ...
  • Page 9 Safari Ranger Rev1.02 Manual Install this machine on a flat surface. Adjust levers to lift casters off the ground to level the game If the game is installed on an unsuitable floor, it could cause game malfunction. To secure the game, adjust the Leveler down until it touches the floor, lifting the casters off the ground by 5mm.
  • Page 10 Safari Ranger Rev1.02 Manual 4.4 Connecting Power WARNING: Check the voltage rating before you connect the equipment to an electrical outlet to ensure that the required voltage and frequency match the available power source. Please refer the label of the machine.

  • Page 11: How To Play

    Safari Ranger Rev1.02 Manual 5. HOW TO PLAY 5.1 Game Interface Play time Current tickets Main play zone Current coins Player 1 Player 2 5.2 How To Play...

  • Page 12: Game Option

    Safari Ranger Rev1.02 Manual 6. GAME OPTIONS 6.1 Main Menu Operation 1. Press TEST button and go into the Main Menu for the settings. 2. Press Service button for credits. 6.2 Main Menu Options: Main Menu Basic Setting Customized Setting...
  • Page 13 Safari Ranger Rev1.02 Manual 6.2.2 Customized Setting Items Description Fixed Ticket OFF Set to pay out fixed ticket every time. Divided by 2 OFF Set to pay out half of the won tickets. Point Mode/Ticket Mode Ticket Set the animal indicate point or ticket.
  • Page 14 Safari Ranger Rev1.02 Manual 6.2.3 Input Test Items Description Coin Mech 1 OFF Test the coin mech 1 input signal. Coin Mech 2 OFF Test the coin mech 1 input signal. Throw Button 1 OFF Test Lasso button 1 input signal.
  • Page 15 Safari Ranger Rev1.02 Manual 6.2.6 Date/Time Setting Items Description Year 2014 Set the year of the date. Month 9 Set the month of the date. 18 Set the day of the date. Hour(24) 18 Set the house of the date 10 Set the minute of the date.

  • Page 16: Error Message And Recovery

    Safari Ranger Rev1.02 Manual 7. ERROR MESSAGE AND RECOVERY 7.1 Error Message Symptom: Screen displays message “Communication ERROR” (there is communication problem with the game) Possible Causes & Fixes:  Communication data wire is damaged  Replace the data wire.

  • Page 17: Maintenance, Inspection

    Safari Ranger Rev1.02 Manual 8. MAINTENANCE & INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Try to run the game before operation each day. 2. Conduct monthly routine checks of game components ensure good working condition 3.

  • Page 18: Overall Construction

    Safari Ranger Rev1.02 Manual 9. OVERALL CONSTRUCTION 9.1 Mechanical Part Part No. Draw No. Name Material S123-114-000 20211403013 Control panel reinforced plate Q235 S123-504-000 20311403005 Cabinet front plate MDF black S123-112-000 20611403002 Cabinet front bottom plastic S123-111-000 20211403011 Cabinet front bottom light plate...
  • Page 19 Safari Ranger Rev1.02 Manual Part No. Draw No. Name Material S123-107-000 20211403006 Side reinforced plate Q235 S123-119-000 20211403018 Back protected plate Q235 S123-116-000 20211403015 Left side light fixed plate Q235 S123-701-000 20511403001 Left side decal Clear plastic S123-106-000 20611403001 Main board protected cover...
  • Page 20 Safari Ranger Rev1.02 Manual Part No. Draw No. Name Material S123-101-000 20211403001 Truck head fixed plate Q235 S123-102-000 20211403002 Truck head light fixed plate Q235 S123-110-000 20211403009 Left side reinforce plate Q235 S123-123-000 20211403022 Truck head left fixed plate Q235...
  • Page 21 Safari Ranger Rev1.02 Manual Part No. Draw No. Name Material S123-125-000 20211403024 Monitor frame Q235 S123-126-000 20611403003 Monitor glass Glass S123-128-000 20611403005 Short foam pad Black foam S123-127-000 20611403004 Long foam pad Black foam S123-130-000 20211403026 Monitor bottom bracket Q235...
  • Page 22 Safari Ranger Rev1.02 Manual Part No. Draw No. Name Material S123-156-000 26000057001 Speaker light cover Clear PVC S123-157-000 26000057002 Speaker light holder Metal S123-146-000 20611403009 Truck head side light cover S123-145-000 20611403008 Truck head S123-147-000 20211403039 Truck head side light fixed plate...
  • Page 23 Safari Ranger Rev1.02 Manual Part No. Draw No. Name Material Marquee fixed S123-132-000 20211403028 Q235 plate S123-708-000 20511403008 Marquee decal Clear plastic S123-144-000 20211403038 Display bracket Q235 S123-426-000 29711406002 BONUS display FZXLR-LED40B4.PCB(V1.0) Marquee front S123-143-000 20211403037 Q235 bracket S123-704-000 20511403004...
  • Page 24 Safari Ranger Rev1.02 Manual Part No. Draw No. Name Material S123-141-000 20211403041 Ball with shaft Stainless steel Non-metallic hexagon lock S123-319-000 20102000001 Q235 S123-142-000 20211403036 Joy stick shaft base Stainless steel S123-140-000 20211403034 Reel cover Chroming S123-139-000 20611403007 Reel base cover...
  • Page 25 Safari Ranger Rev1.02 Manual Part No. Draw No. Name Material S123-149-000 20211403040 PC fixed bracket Metal S123-150-000 20611403012 PC cushion S123-406-000 21101000023 DELL pc DELL 3020 S123-519-000 20311403020 PC bed plate MDF black mica...
  • Page 26 Safari Ranger Rev1.02 Manual Part No. Draw No. Name Material Cross recessed hexagon screw S123-332-000 20104023002 Q235 S123-152-000 26000009000 Leveller Q235 S123-457-000 25501000056 Caster 3-2689-52 S123-153-000 26000010000 Caster bracket Q235...
  • Page 27 Safari Ranger Rev1.02 Manual 9.2 Mechanical Part...
  • Page 28 Safari Ranger Rev1.02 Manual Part No. Draw No. Name SPEC. FZXLR-LED40B4.PCB(V S123-426-000 29711406002 BONUS display 1.0) Marquee light W5630-LC30cm-60z/m S123-453-000 22003080003 (short) -DC12V Marquee light W5630-LC55cm-60z/m S123-454-000 22003080005 (long) -DC12V S123-439-000 22301000007 Coin mech TW-800Ⅱ S123-442-000 23100000005 Ticket dispenser CL-022Q-270...
  • Page 29 Safari Ranger Rev1.02 Manual...
  • Page 30 Safari Ranger Rev1.02 Manual Part No. Draw No. Name SPEC. S123-455-000 23309000166 Cable suite MW-ADS-15512 S123-416-000 21602000093 Power supply (12V/11A,5V/3A) S123-414-000 23301018002 Power cord 3x18AWG 0.5M UL S123-410-000 23304000100 USB cable A type 0.5M (male-female) S123-411-000 23307000014 DVI video cable DVI-DVI(1.5m)
  • Page 31 Safari Ranger Rev1.02 Manual 9.3 Decal Part Part No. Draw No. Name SPEC. S123-708-000 20511403008 Marquee decal 1157x834x5 S123-709-000 20511403009 Monitor decal 1092x470 S123-710-000 20511403010 Truck head decal 959x606 S123-712-000 20511403012 Left decal 853x707 S123-713-000 20511403013 Right decal 853x707 S123-701-000 20511403001...
  • Page 32 Safari Ranger Rev1.02 Manual Part No. Draw No. Name SPEC. S123-728-000 25600000101 Counter label 88×35 S123-720-000 25600000037 Warning label- L 62×88 S123-726-000 25600000095 Service label-L 100X50 S123-722-000 25600000067 Warning label 100×60 S123-721-000 25600000042 Service label 1 100×50 S123-716-000 20511403016 Uncertified 110V nameplate 128x68...
  • Page 33 Safari Ranger Rev1.02 Manual Wiring Diagram...
  • Page 35 Have Questions? Contact us! www.universal-space.com International Support Center USA Support Center Tel: +1-905-477-2823 Tel: 972-241-4263 Fax: +1-905-477-2660 Fax: 214-919-4918 Email: service@universal-space.com Email:tsnelling@unisusasupportcenter.com (Contact: Clement Yau) (Contact: Tim Snelling)
