Summary of Contents for UNIS SPACE SHIP

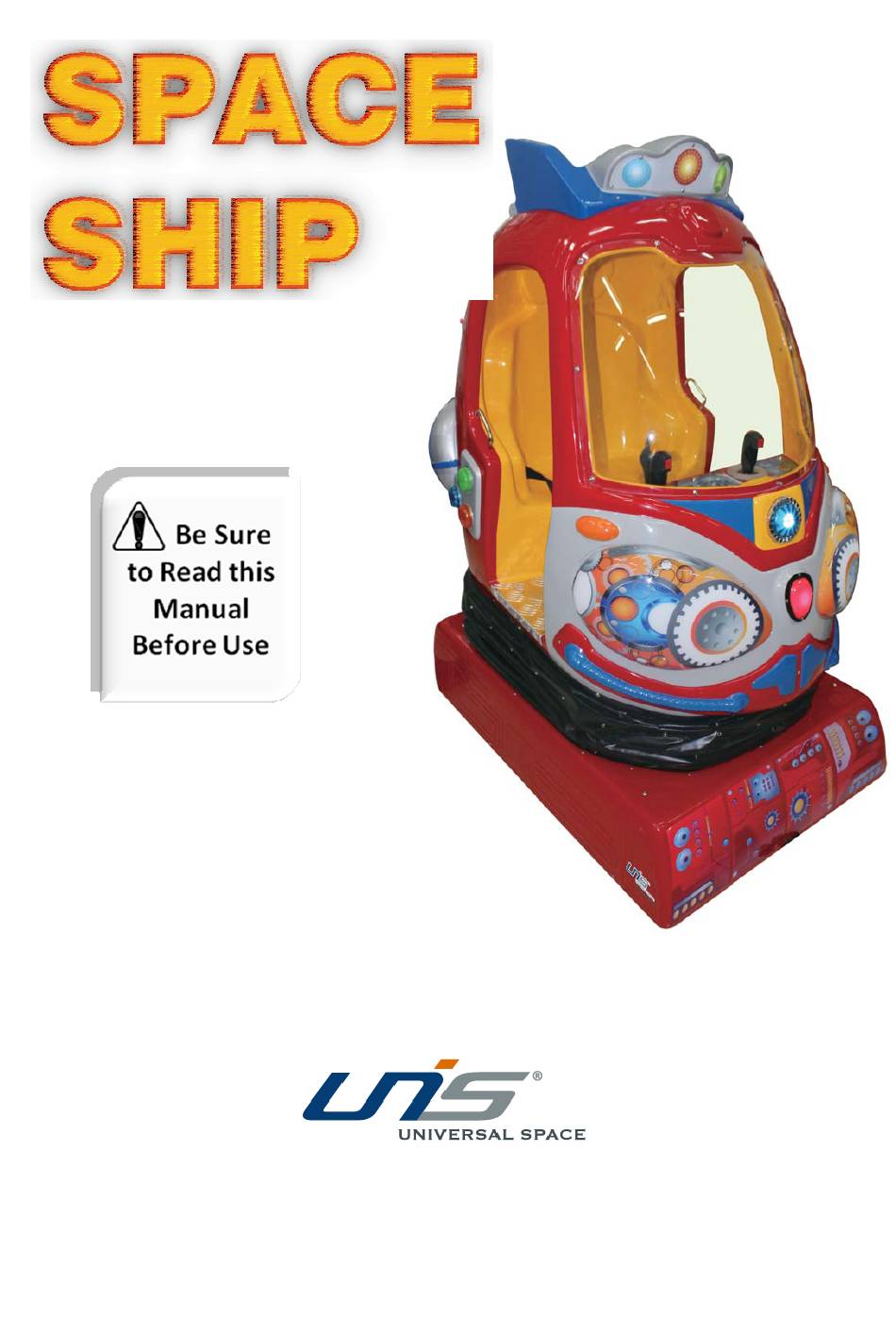

  • Page 1 Operation Manual    www.universal-space.com...

  • Page 2: Table Of Contents

    Space ship manual CONTENT Important Safety Instructions ................... 2 1. SPECIFICATIONS ..................... 4 2. PACKAGE CONTENTS ....................5 3. PART NAMES ......................6 4. SET UP & INSTALLATION ..................7 5. HOW TO PLAY ......................10 6. MAINTENANCE, INSPECTION ................11 7.

  • Page 3: Important Safety Instructions

    Space ship manual Thank you for purchasing Space Ship. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 4 Space ship manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: •...

  • Page 5: Specifications

    Space ship manual 1. SPECIFICATIONS Rated power supply： 110V, 50/60Hz Min. Power consumption： 88W Max. Power consumption： 1650W Dimensions： W830×D1300×H1760 (mm) Weight： Approximately 180KG NOTICE: After turning off the game, please wait at least 1 minute before restarting again. Note: Game parameters are subject to change without notice.

  • Page 6: Package Contents

    Space ship manual 2. PACKAGE CONTENTS Open the package and make sure all the items are included: • 1 x Body Assembly Part No. Draw No. Name Illustration S111-400-000 23301000001 Power cord S111-401-000 21901000030 Fuse S111-403-000 25300171002 S111-700-000 41451107001 Manual •...

  • Page 7: Part Names

    Space ship manual 3. PART NAMES Top Light Safety belt Joystick Control panel Safety skirt Base Vacuum form light...

  • Page 8: Set Up & Installation

    Space ship manual 4. SET UP & INSTALLATION This product is an indoor game machine. Do not install outdoors. Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 2) for places to avoid Place the unit on a dry level surface Ventilation openings in the back of the unit must not be obstructed by objects or by wall.
  • Page 9 Space ship manual 4.2 Level Adjustment Install this machine on a flat surface. Adjust levers to lift casters off the ground to level the game If the game is installed on an unsuitable floor, it could cause game malfunction. To secure the game, adjust the Leveler down until it touches the floor, lifting the casters off the ground by 5mm.
  • Page 10 Space ship manual 4.4 Connecting Power WARNING: Check the voltage rating before you connect the equipment to an electrical outlet to ensure that the required voltage and frequency match the available power source. Please refer the label of the machine.

  • Page 11: How To Play

    Space ship manual 5. HOW TO PLAY Space ship is designed for the children entertainment. 1. Sit on the seat and fasten the safty belt. 2. Insert coins, starting speech prompt. Cabin rise and swing, players control the swing through handles.

  • Page 12: Maintenance, Inspection

    Space ship manual 6. MAINTENANCE & INSPECTION 6.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Try to run the game before operation each day. 2. Conduct monthly routine checks of game components ensure good working condition 3.

  • Page 13: Overall Construction

    Space ship manual 7. OVERALL CONSTRUCTION 7.1 Base mechanism...
  • Page 14 Space ship manual Part No. Code Name S111-100-000 20251107001 Base(29951107001) S111-500-000 20351107001 Cabin support board S111-101-000 20251107002 Bar fixed assembly S111-600-000 20651107001 Bar pad S111-102-000 20251107003 Screw washer S111-103-000 20251107004 Limited rob 1 S111-104-000 20251107005 Limited rob 2 S111-105-000 20251107006...
  • Page 15 Space ship manual 7.2 Pneumatic Component Part No. Code Name S111-407-000 25106020194 8mm wind pipe S111-408-000 25101190004 Straight thread S111-409-000 25101190003 Straight thread S111-410-000 25101230002 Tracheal bent joints S111-411-000 25101230003 Tracheal bent joints S111-412-000 25101041001 8 four ventilation joint S111-413-000...
  • Page 16 Space ship manual 7.3 Spaceship Component 15,16,18 19, 20 Part No. Code Name S111-605-000 20451107002 Ship body S111-606-000 20451107003 Front decoration pipe S111-607-000 20451107004 Top decoration light cover S111-608-000 20451107005 Back decoration light cover S111-609-000 20451107006 Back decoration shield S111-610-000 20451107007...
  • Page 17 Space ship manual 7.4 Air System Part 7, 12 Part No. Code Name S111-130-000 25106030401 6mm silicon tube S111-131-000 20251107035 Fan cover S111-132-000 20251107037 Silicon tube connecter S111-133-000 20251107034 ball valve fixed plate S111-134-000 25101112011 6mm tube-1/4” connecter S111-135-000 25101120076...
  • Page 18 Space ship manual 7.5 Electrical Parts List 18,33 20,37...
  • Page 19 Space ship manual Part No. Code Name S111-427-000 22801000005 Speaker S111-428-000 21412000001 Terminal S111-429-000 21602000004 SW power box S111-430-000 22601000005 Small rocker SW S111-431-000 21902000006 Fuse base S111-432-000 22702010021 DC exhaust fan S111-433-000 21901000030 Fuse S111-434-000 23201000002 Filter S111-435-000 21606000084...
  • Page 20 Space ship manual 7.6 Game Decals:...
  • Page 21 Space ship manual Part No. Code Name S111-701-000 20551107001 Small light cover decal S111-702-000 20551107002 L-front light cover decal S111-703-000 20551107003 R-front light cover decal S111-704-000 20551107004 Control panel decal S111-705-000 20551107005 Top marquee decal S111-708-000 20551107008 Control panel down L decal...
  • Page 22 Space ship manual...

  • Page 23: Io Chart

    Space ship manual Part No. Code Name S111-706-000 20551107006 Tail light piece decal S111-707-000 20551107007 Back light piece decal S111-710-000 20551107010 Back company logo label S111-716-000 20551107016 110V nameplate S111-717-000 20551107017 FCC certification nameplate S111-718-000 25600000001 Coin counter S111-719-000 25600000003...
  • Page 24 Space ship manual 8. IO CHART DIP adjust Item Content SW11 SW12 SW13 SW14 SW15 SW16 SW17 SW18 Coins game Running Time(s) Demo music Test Working condition Working Main board input output part Input part Output part Input Content Output...
  • Page 25 Space ship manual LED control panel output part Input part Output part Input Content Output Content Output Content J4-1 OUT1-1 Front moving light 1 OUT2-1 Back moving light 1 J4-2 OUT1-2 Front moving light 2 OUT2-2 Back moving light 2...
  • Page 26 Space ship manual 9. WIRING DIAGRAM OUT1 Socket 16P...
  • Page 27 WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Email: service@unispartsandservice.com...
