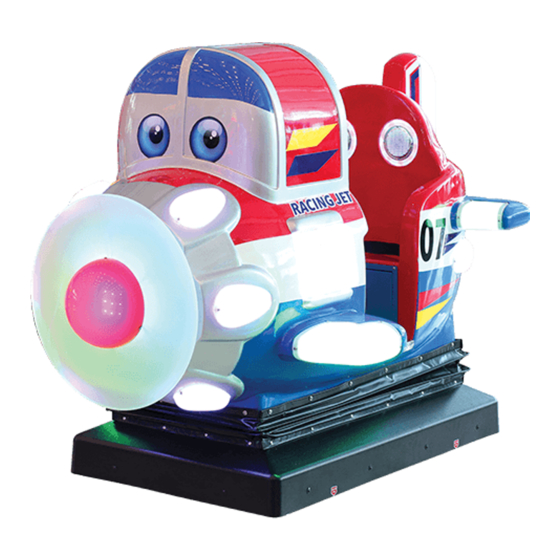

UNIS RACING JET Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operation Manual
www.universal-space.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RACING JET and is the answer not in the manual?

Questions and answers

Related Manuals for UNIS RACING JET

Summary of Contents for UNIS RACING JET

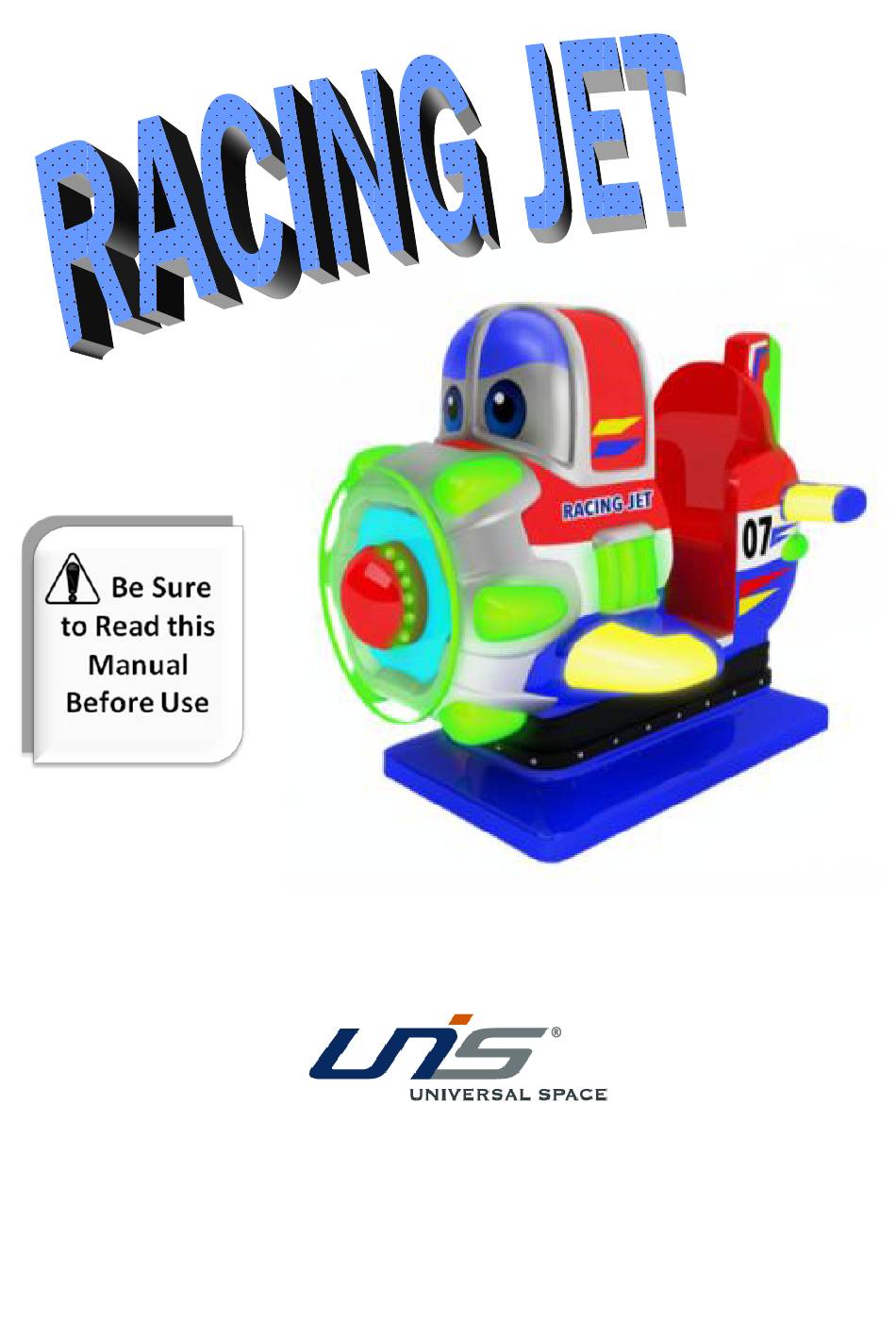

  • Page 1 Operation Manual www.universal-space.com...

  • Page 2: Table Of Contents

    Racing Jet Manual CONTENT Important Safety Instructions............2 1. SPECIFICATIONS ..............4 2. PACKAGE CONTENTS ............. 5 3. PART NAME ................6 4. SET UP & INSTALLATION ............7 5. HOW TO PLAY ................ 10 6. MAINTENANCE & INSPECTION ..........11 7.

  • Page 3: Important Safety Instructions

    Racing Jet Manual Thank you for purchasing RACING JET from Universal Space. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 4 Racing Jet Manual safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...

  • Page 5: Specifications

    Racing Jet Manual 1. SPECIFICATIONS Seat height Rated power supply: AC220-240V, AC110V 50/60Hz Min. Power consumption: 100W Max. Power consumption：300W Dimensions： W160× D120× H118 (mm) Weight： Approximately 200kg Load weight: About 150kg NOTICE: After turning off the game, please wait at least 1 minute before restarting again.

  • Page 6: Package Contents

    Racing Jet Manual 2. PACKAGE CONTENTS Open the package and make sure all the items are included:  1 x Body Assembly  Following accessories Part No. Name SPEC. Illustration Qty. R120-301-000 Power cord 1.5 m R120-302-000 Fuse R120-303-000 Manual...

  • Page 7: Part Name

    Racing Jet Manual 3. PART NAME Fiberglass Seat Flashing head light Footboard Protected skirt Cabinet base...

  • Page 8: Set Up & Installation

    Racing Jet Manual 4. SET UP & INSTALLATION This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 2) for places to avoid  Place the unit on a dry level surface ...
  • Page 9 Racing Jet Manual 4.3 Transporting the Game If you need to move the game, adjust the levelers back to an “up” position so the casters touch the ground. Leveler Caster Move NOTICE  Be careful not to damage the machine during transport.
  • Page 10 Racing Jet Manual WARNING Ensure no heavy objects rest on the power cord. Check to make sure the game cabinet does not sit on the power cord as this could damage the cord and become hazardous. To disconnect the game, grip the plug and pull it from the wall outlet. Never pull by the cord.

  • Page 11: How To Play

    Racing Jet Manual 5. HOW TO PLAY 5.1 Game Flow Insert coin(s) Game start Game starts moving. Balls are blown out Player presses the button on the steering. The plane rotates with 360 degrees. Balls are blown into the basket and fall into the slot to get scores.

  • Page 12: Maintenance & Inspection

    Racing Jet Manual 6. MAINTENANCE & INSPECTION 6.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Try to run the game before operation each day. 2. Conduct monthly routine checks of game components ensure good working condition 3.

  • Page 13: Trouble Shooting

    Racing Jet Manual 7. TROUBLE SHOOTING Problem 1: The machine without respond when power on. Solution: A. Check the machine external power supply is normal. B. Check the power SW is “NO” status. C. Check if the fuse blown out.

  • Page 14: Overall Construction

    Racing Jet Manual 8. OVERALL CONSTRUCTION 8.1 General Part Steering Basket wheel assembly Plane cabinet Skirt Base...
  • Page 15 Racing Jet Manual 8.2 Base Assembly...
  • Page 16 Racing Jet Manual Part No. Name Material Qty. R120-101-000 Upper moving bracket Welding assembly R120-102-000 Base cover Black ABS R120-103-000 Bottom moving bracket Welding assembly R120-104-000 BR. With seat UCP205 R120-105-000 Transducer R120-106-000 Oscillating BR. M16 male R120-107-000 Oscillating BR.
  • Page 17 Racing Jet Manual 8.3 Plane Cabinet Assembly...
  • Page 18 Racing Jet Manual Part No. Name Material Qty. R120-123-000 Display panel Plywood R120-124-000 Display plastic plate Plastic R120-125-000 Marquee mounted plate Stainless steel R120-126-000 Side fixed plate R120-127-000 Guiding tube Clear plastic R120-128-000 Stopped ball plate Clear plastic R120-129-000 Window plastic...
  • Page 19 Racing Jet Manual 8.4 Basket assembly Part No. Name Spec. R120-307-000 Motor Optical coupling fixed R120-160-000 Stainless steel bracket Motor synchronizing R120-161-000 Aluminium alloy wheel R120-162-000 Optical coupling plate Stainless steel R120-308-000 Sensor R120-601-000 Plane arm cover Plexi. R120-309-000 Synchronizing wheel...
  • Page 20 Racing Jet Manual 8.5 Steering wheel assembly Part No. Name Spec. R120-310-000 Button Purchased part R120-311-000 Butterfly type wheel Purchased part R120-168-000 Steering wheel br. Steering wheel R120-606-000 Red ABS vacuum foam R120-312-000 Purchased part Steering wheel fixed R120-169-000 Q235...
  • Page 21 Racing Jet Manual 8.6 Electrical Part...
  • Page 22 Racing Jet Manual Part No. Name SPEC. Qty. R120-401-000 Tail light 5050 RGB 2 R120-402-000 Colorful light belt WS2811B 3 R120-403-000 RBG light belt 5050 RGB 4 R120-405-000 Front light 5050 green 5 R120-406-000 Rear light 5050 green R120-407-000 Display...
  • Page 23 Racing Jet Manual Part No. Name SPEC. Qty. 1 R120-411-000 2 R120-412-000 Power supply 150w 3 R120-413-000 Main board Sxkj-2013.pcv ver1.0 4 R120-414-000 Solid state relay SSR-10 DA 5 R120-415-000 Light controller XXH-150703A 6 R120-416-000 Ribbon cable...
  • Page 24 Racing Jet Manual Part No. Name SPEC. Qty. R120-417-000 Coin door Iron R120-418-000 AH57 lock 57 lock R120-419-000 Ticket light Red light R120-420-000 Coin mech. TW-131 R120-421-000 Coin box Iron R120-422-000 AH78 lcok 78 lock R120-423-000 Tik. dispenser LK003C Meter support...
  • Page 25 Racing Jet Manual Part No. Name SPEC. Qty. R120-429-000 Speaker R120-430-000 Plexi. Plexi. R120-431-000 Speaker light PCB Red green blue R120-432-000 Speaker cover Silver Part No. Name SPEC. Qty. R120-433-000 Fuse base R120-434-000 Power cord 6.3A/250V...
  • Page 26 Racing Jet Manual 8.7 Decal Part...
  • Page 27 Racing Jet Manual Part No. Name SPEC. Qty. R120-701-000 Eye decal 2 R120-702-000 Display Plastic 3 R120-703-000 Tail decal 4 R120-704-000 Cover plate vacuum form Vacuum form 5 R120-705-000 Side decal 1 6 R120-706-000 Side decal 2 R120-707-000 Side decal 3...
  • Page 28 Racing Jet Manual Part No. Name SPEC. Qty. R120-716-000 Plane decal C R120-717-000 Plane decal A R120-718-000 Plane decal E R120-719-000 Plane decal D...
  • Page 29 Racing Jet Manual Part No. Name SPEC. Qty. R120-720-000 Danger warning label R120-721-000 Cabinet nameplate label Indoor used nameplate R120-722-000 label R120-723-000 Fuse label R120-724-000 Force point label R120-725-000 Ticket out label High voltage & high R120-726-000 temperature label R120-727-000 High voltage danger label...

  • Page 30: Io Chart

    Racing Jet Manual 9. IO chart Item Option Coin per game Game time (s) Score ticket Ticket off Item Option Mercy ticket Demo music Data memory Free Play pulse 1RMB...
  • Page 31 Have Questions? Contact us! www.universal-space.com International Support Center USA Support Center Tel: +1-905-477-2823 Tel: 972-241-4263 Fax: +1-905-477-2660 Fax: 214-919-4918 Email: service@universal-space.com Email:tsnelling@unisusasupportcenter.com (Contact: Clement Yau) (Contact: Tim Snelling)
