Connects2 CTSJD001.2 Installation Manual

Steering wheel control interface for john deere 6r series vehicles

Download this manual

iii

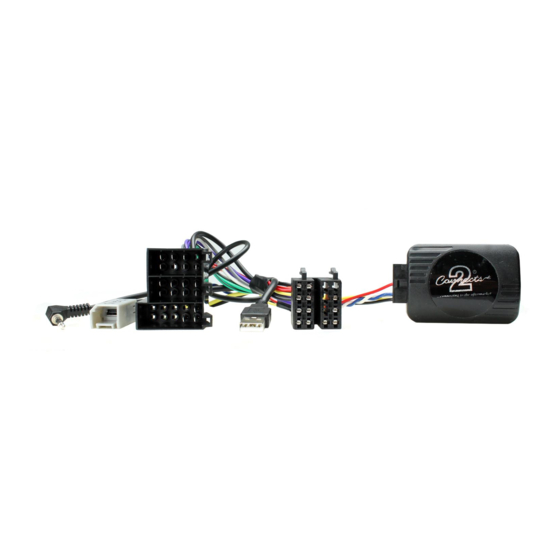

i. Interface Box

ii. ISO Connector (16 Pin)

iii. Mini ISO Connector

iv. USB Male/Female Connectors

v. 3.5mm Jack Connector

vi. DAB Splitter

APPLICATION

John Deere 6R Series

FEATURES

• Retains Steering Wheel Control Functionality

• Retains USB Input

• Retains AUX Input

• Retains & Amplifies Original FM Antenna

• Retains OEM Screen

• Updatable via USB

The information provided in this document is subject to change without notice due to manufacturer changes and/or improvements to the product/s. This

instruction manual is based on documented data and research. The manufacturer of this product cannot be held responsible for any changes made to the

vehicle by the manufacturer or damages that may occur through the installation of this product in accordance with the steps outlined herein.

Interface for John Deere Vehicles

(select functionality only)

(contact supplier for more information)

Steering Wheel Control

Note: Application data is subject to change at any time

DISCLAIMER

CTSJD001.2

CTSJD001.2_IG _en-GB_v1

Need help?

Do you have a question about the CTSJD001.2 and is the answer not in the manual?

Page 1 CTSJD001.2 Steering Wheel Control Interface for John Deere Vehicles i. Interface Box ii. ISO Connector (16 Pin) iii. Mini ISO Connector iv. USB Male/Female Connectors v. 3.5mm Jack Connector vi. DAB Splitter APPLICATION Note: Application data is subject to change at any time...
Page 2 Please ensure that the correct tools are using during the installation to avoid damage to the vehicle or product. Connects2 can not be held responsible for the installation of this product.
Page 3 8. Test stereo and steering wheel control functionality for correct operation before reassembling the vehicle dashboard. If steering wheel control functions are unresponsive, please uninstall the interface and wiring and reinstall carefully in accordance with the above steps. Need help? Visit support.connects2.com/tickets/technical CTSJD001.2_IG _en-GB_v1...
Page 4 WIRING DIAGRAM ISO Connector [16 Pin] Mini ISO Connector [26 Pin] Connect to aftermarket stereo Connect to corresponding connector from vehicle Female USB Connector Male USB Connector Connect to vehicle Connect to aftermarket stereo 3.5mm Jack Connector Connect to AUX input on aftermarket stereo DIN Male &...
