ix

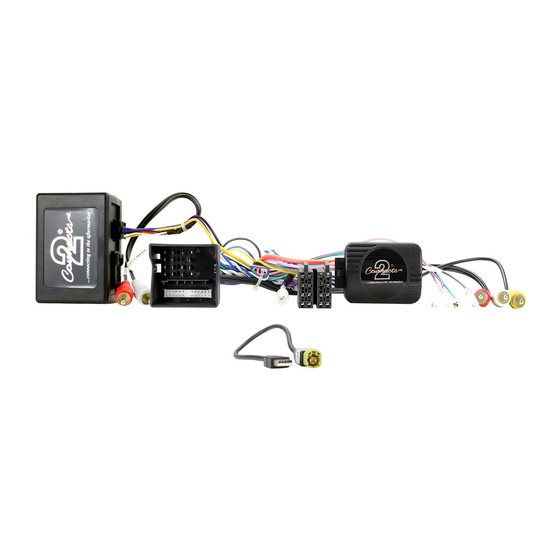

i. Interface Box
ii. ISO Connector (16 Pin)
iii. Quadlock Connector (40 Pin)
iv. RCA Amplifier (Red/White)
v. RCA AUX (Red/White)
APPLICATION
Porsche Panamera
Porsche Macan (95B)
Porsche Cayenne
For fiber-amplified vehicles with MOST 25 systems and quadlock connectors.
FEATURES
• Retains Factory Steering Wheel Control Functionality
• Retains Factory Phone Button Functionality
• Retains MOST 25 Fiber Amplified System
• Retains USB and AUX Inputs
• Retains Reversing Camera
• Retains Parking Sensor Audio
• Provides Outputs for Park Brake, Reverse Gear, Speed Pulse, Mute & Amp Remote
• Updateable via USB
The information provided in this document is subject to change without notice due to manufacturer changes and/or improvements to the product/s. This
instruction manual is based on documented data and research. The manufacturer of this product cannot be held responsible for any changes made to the
vehicle by the manufacturer or damages that may occur through the installation of this product in accordance with the steps outlined herein.
iv
iii
vi. RCA Camera (Yellow)
vii. Flying Wires
viii. USB Retention Harness
ix. Amp Retention Interface
2009 - 2016
2014 - 2016
2011 - 2016
(contact supplier for more information)
Steering Wheel Control
Interface for Porsche Vehicles
viii
Note: Application data is subject to change at any time
DISCLAIMER
CTSPO007.2
ii
i
vii
CTSPO007.2_IG_en-GB_v1
v
vi
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Connects2 CTSPO007.2
Summary of Contents for Connects2 CTSPO007.2

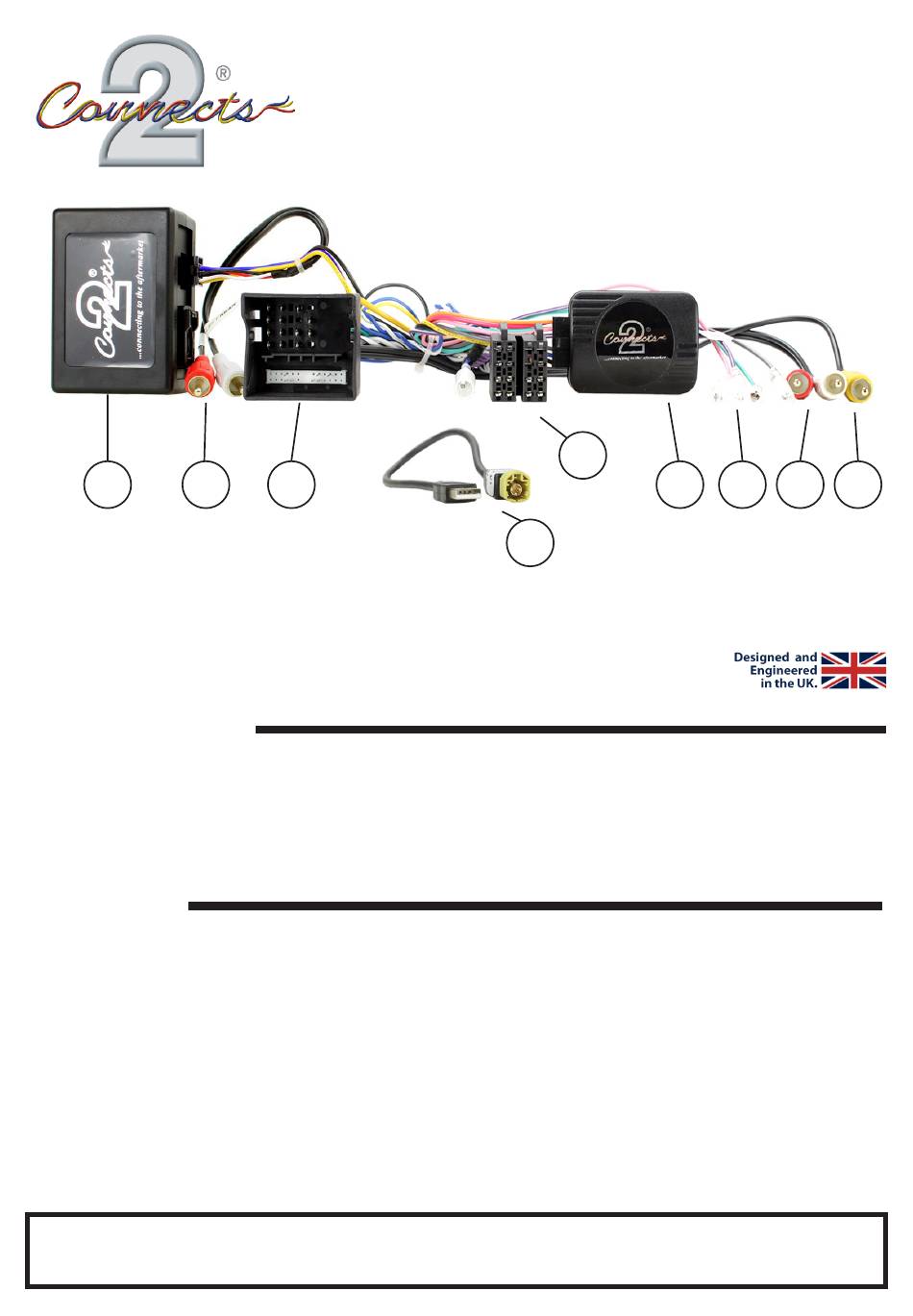

- Page 1 CTSPO007.2 Steering Wheel Control Interface for Porsche Vehicles viii i. Interface Box vi. RCA Camera (Yellow) ii. ISO Connector (16 Pin) vii. Flying Wires iii. Quadlock Connector (40 Pin) viii. USB Retention Harness iv. RCA Amplifier (Red/White) ix. Amp Retention Interface v.
- Page 2 Please ensure that the correct tools are used during the installation to avoid damage to the vehicle or product. Connects2 can not be held responsible for the installation of this product.
- Page 3 If steering wheel control functions are unresponsive, please uninstall the interface and wiring and reinstall carefully in accordance with the above steps. For further help and support, please contact us directly at support.connects2.com/tickets/technical and fill out a support ticket with the full details of your issue.
- Page 4 WIRING DIAGRAM Connect to aftermarket stereo Connect to vehicle USB Retention Lead Flying Wires Pink - Speed Pulse Green - Park Brake Purple/White - Reverse Gear Blue/White - Amp Remote Quadlock Connector Grey - Mute Connect to quadlock connector from vehicle ISO Connector Connect to aftermarket stereo White/Red RCA Connectors (AUX)
