Connects2 CTSPO008.2 Installation Manual

Connects2 CTSPO008.2 Installation Manual

Steering wheel control interface for porsche vehicles

Advertisement

Quick Links

ix
iv

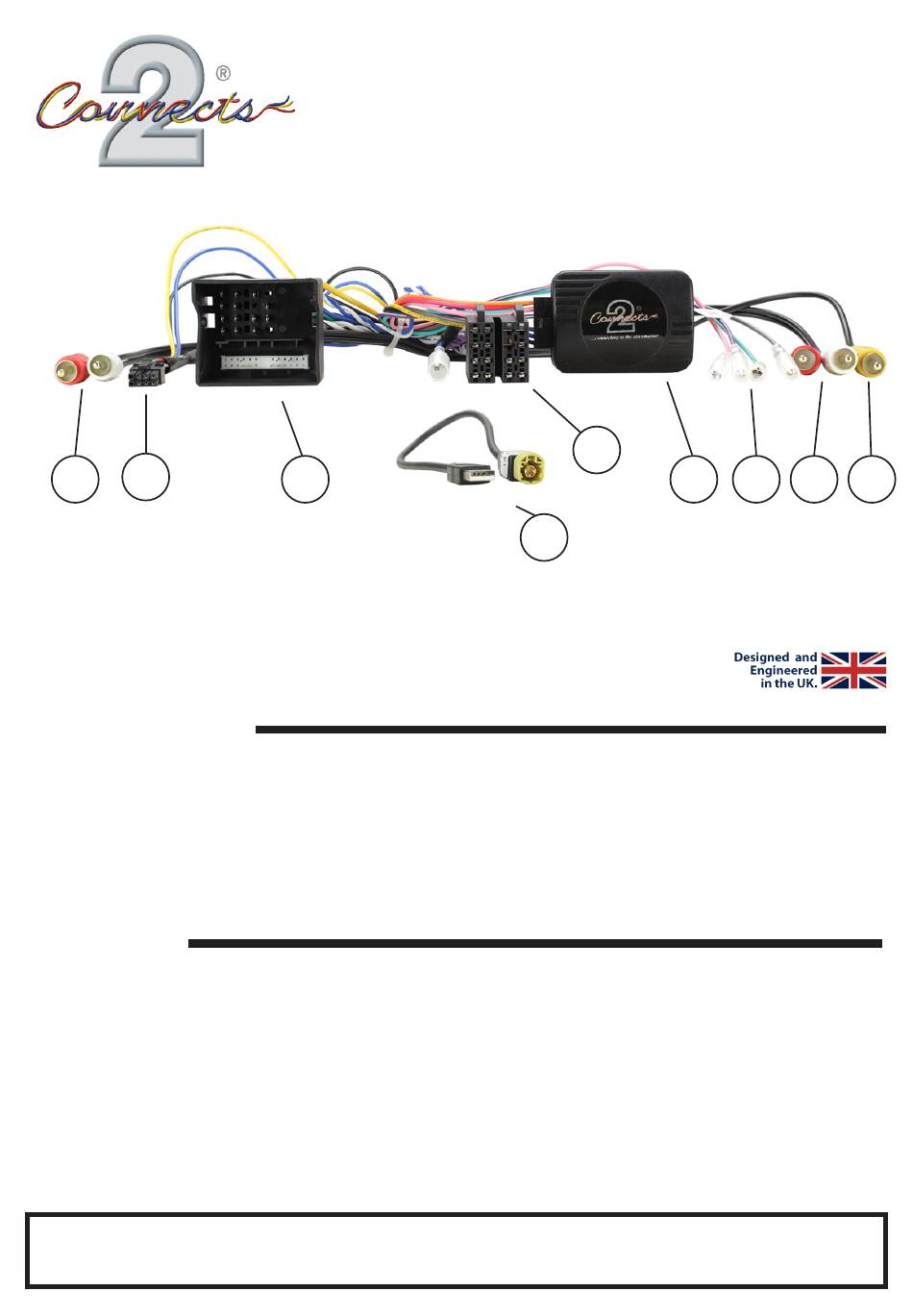

i. Interface Box
ii. ISO Connector (16 Pin)
iii. Quadlock Connector (40 Pin)
iv. RCA - Not Used
v. RCA AUX (Red/White)

APPLICATION

Porsche Panamera
Porsche Macan (95B)
Porsche Cayenne
For non-amplified vehicles with quadlock connectors.

FEATURES

• Retains Factory Steering Wheel Control Functionality
• Retains Factory Phone Button Functionality
• Retains USB and AUX Inputs
• Retains Reversing Camera
• Retains Parking Sensor Audio
• Provides Outputs for Park Brake, Reverse Gear, Speed Pulse, Mute & Amp Remote
• Updateable via USB
The information provided in this document is subject to change without notice due to manufacturer changes and/or improvements to the product/s. This
instruction manual is based on documented data and research. The manufacturer of this product cannot be held responsible for any changes made to the
vehicle by the manufacturer or damages that may occur through the installation of this product in accordance with the steps outlined herein.
Interface for Porsche Vehicles
iii
vi. RCA Camera (Yellow)
vii. Flying Wires
viii. USB Retention Harness
ix. Molex - Not Used
2012 - UP
2014 - UP
2012 - 2016
(contact supplier for more information)

DISCLAIMER

Steering Wheel Control
ii
viii
Note: Application data is subject to change at any time
CTSPO008.2
i
vii
v
CTSPO008.2_IG_en-GB_v1
vi

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CTSPO008.2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Connects2 CTSPO008.2

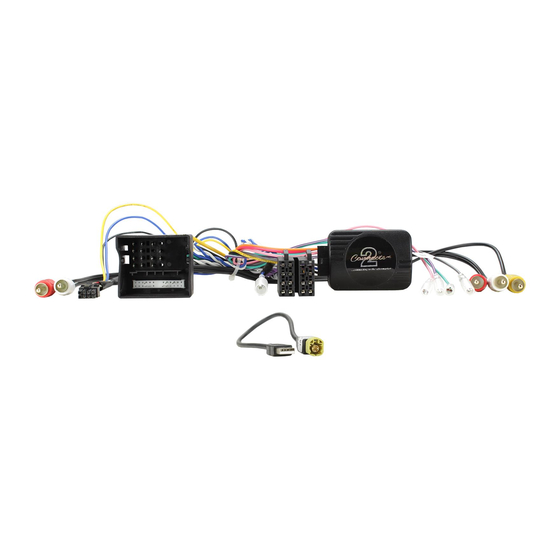

  • Page 1 CTSPO008.2 Steering Wheel Control Interface for Porsche Vehicles viii i. Interface Box vi. RCA Camera (Yellow) ii. ISO Connector (16 Pin) vii. Flying Wires iii. Quadlock Connector (40 Pin) viii. USB Retention Harness iv. RCA - Not Used ix. Molex - Not Used v.
  • Page 2 Please ensure that the correct tools are used during the installation to avoid damage to the vehicle or product. Connects2 can not be held responsible for the installation of this product.
  • Page 3 If steering wheel control functions are unresponsive, please uninstall the interface and wiring and reinstall carefully in accordance with the above steps. For further help and support, please contact us directly at support.connects2.com/tickets/technical and fill out a support ticket with the full details of your issue.
  • Page 4: Wiring Diagram

    WIRING DIAGRAM Connect to aftermarket stereo Connect to vehicle USB Retention Lead Flying Wires Pink - Speed Pulse Green - Park Brake Purple/White - Reverse Gear Blue/White - Amp Remote Quadlock Connector Grey - Mute Connect to quadlock connector from vehicle ISO Connector Connect to aftermarket stereo White/Red RCA Connectors (AUX)
