INSTALLATION INSTRUCTIONS
Item Qty.
Part No.
1
1 Set
3903250AA
2
1 Set
3903250BA
3
2 Pc
3903250CA
4
6 Pc
3750110
5
6 Pc
-
6
6 Pc
-
7
6 Pc
-
8
12 Pc
-
9
12 Pc
-
10
12 Pc
-
2
Passenger
Required tools
A. Ratchet
B. Ratchet extension
C. 19mm Socket
Before beginning the installation, please read all directions carefully and verify that all necessary hardware
is accounted for. If any parts are missing, stop the installation and contact your distributor immediately.
To maintain and care this product keep it clean and do not use abrasive cleaners or polish waxes. We re-
commend to use only non-abrasive automotive wax such as pure carnauba to avoid scratches and rust.
The approximate installation time is 45 min.
1. Remove the black cover under de vehicle
Rev. 12-01-16 - Diseño - Calidad - FODI7.003.E
KIA SORENTO
2015-2016

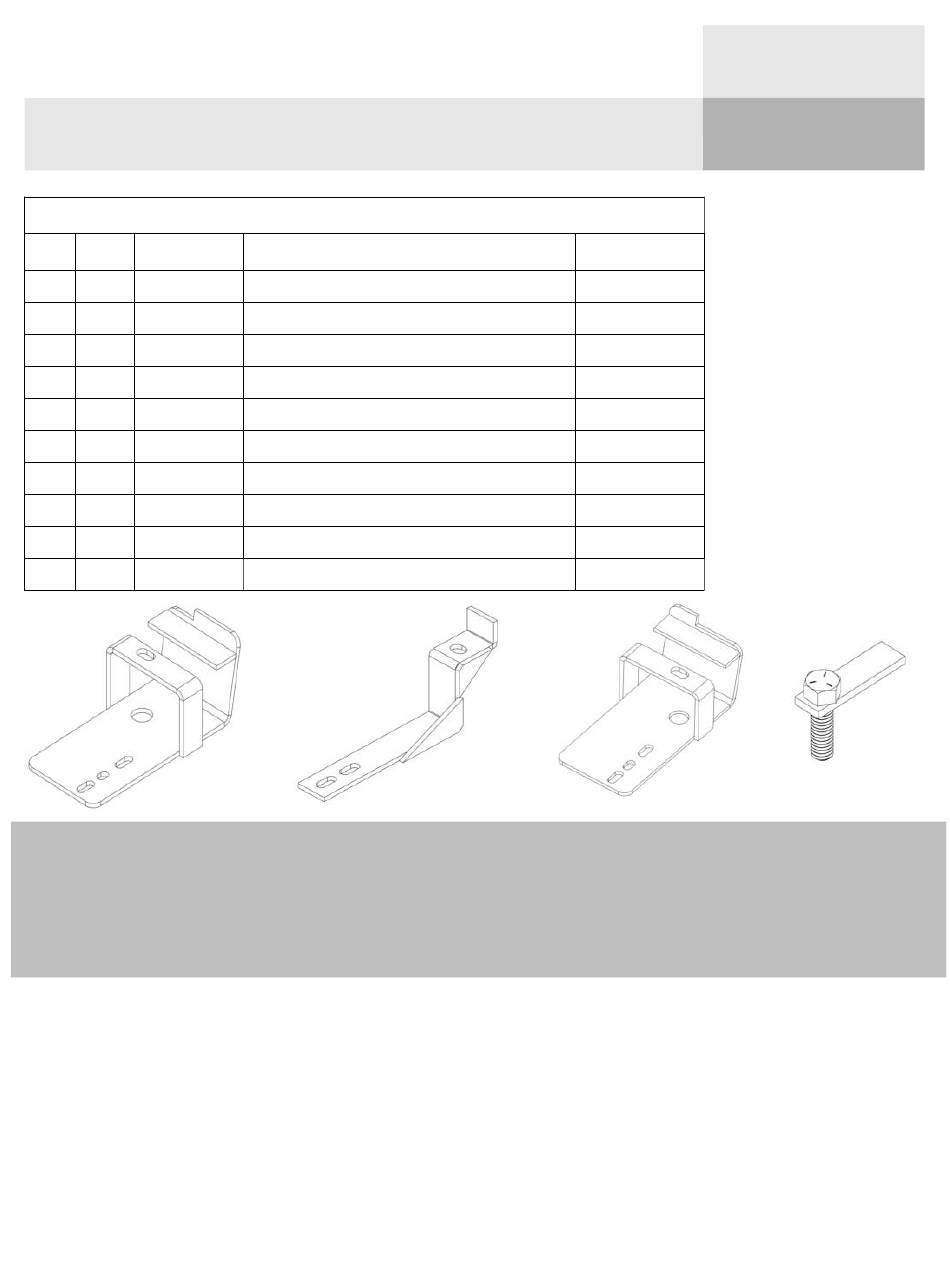

PARTS LIST
Description
Front bracket
Rear bracket
Middle bracket
1/2" T Bolt
1/2" Flat Washer
1/2" Lock washer
1/2" Hex nut
5/16" x 1" Hex head bolt
5/16" Flat washer
5/16" Lock washer
3
Passenger &
Driver
390325 / 6849045
Torque
-
-
-
75 Lb.Ft
-
-
75 Lb.Ft
11 Lb.Ft
-
-
1
Driver
Página 1/4
BRACKETS
4
Advertisement
Table of Contents
Related Manuals for Go Rhino 390325
Summary of Contents for Go Rhino 390325
- Page 1 BRACKETS INSTALLATION INSTRUCTIONS KIA SORENTO 390325 / 6849045 2015-2016 PARTS LIST Item Qty. Part No. Description Torque 1 Set 3903250AA Front bracket 1 Set 3903250BA Rear bracket Middle bracket 2 Pc 3903250CA 6 Pc 3750110 1/2” T Bolt 75 Lb.Ft 6 Pc 1/2”...
- Page 2 2. Remove the plastic caps located on the front, middle and rear of the vehicle. (Img. 1) Img. 1 3. Place (1) “T” bolt in the front and rear holes (Img. 2 y 3) Img. 2 Img. 3 4. Install rear bracket to the “T” bolt using (1) ½” flat and lock washer and (1) ½” hex nut. Leave loose for final adjustment.
- Page 3 Img. 5 6. Install front bracket to the “T” bolt using (1) ½” flat and lock washer and (1) ½” hex nut. Leave loose for final adjustment. . (Img. 6) Img. 6 7. Repeat steps on the other side of the vehicle. 8.
- Page 4 Img. 7 3 ¼” 3 ¼” 4” 6” 9. Install the covers with the original hardware. (Img. 8 y 9) Img. 8 Img. 9 MIDDLE FRONT 10. Install the side steps using the “U” brackets that came with the side steps, (6) 5/16” x 1” bolts and (6) 5/16”...
