Go Rhino 3219MC Installation Instructions

Installation Instructions (assembly)

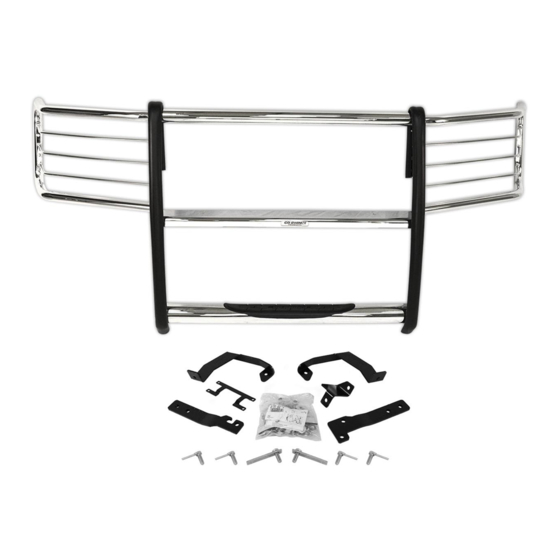

3000 Series StepGuard (Grille Guard & Brush Guards) Part Number 3219MB, 3219MC
2010-2016 Dodge Ram 2500HD & 3500HD 2/4WD
(Not compatible with ParkSense® Front Park Assist)
QTY PART DESCRIPTION
¼" X 1" BUTTON HEAD BOLT
8
¼" FLAT WASHER
4
¼" LOCK NUT
4
5/16" X 1" BUTTON HEAD BOLT
8
5/16" FLAT WASHER
8
5/16" LOCK NUT
8
3/8" X 1 1/4" BUTTON HEAD BOLT
8
3/8" X 1 1/4" HEX BOLT
4
3/8" LOCK WASHER
8
3/8" HEX NUT
4
READ THE ASSEMBLY AND INSTALLATION INSTRUCTIONS COMPLETELY BEFORE YOU BEGIN.
STEP-1 BEGIN THE ASSEMBLY BY LAYING THE COMPONENTS OUT ON A PROTECTIVE SURFACE.
STEP-2 ATTACH THE (2) CENTER PLATE BRACKETS TO THE CENTER PLATE USING (4) 1/4" X 1" BUTTON HEAD
BOLTS, (4) 1/4" FLAT WASHERS, AND (4) 1/4" LOCK NUTS. PHOTO #1
STEP-3 POSITION THE GRILLE GUARD SIDE PLATES WITH THE FRONT EDGE DOWN AND THE TOP TUBE, CENTER
PLATE AND BOTTOM STEP TUBE BETWEEN THE SIDE PLATES.
STEP-4 ATTACH THE TOP TUBE TO THE SIDE PLATES USING (2) 3/8" X 1 1/4" HEX BOLTS AND (2) 3/8" LOCK
WASHERS. DO NOT TIGHTEN.
STEP-5 ATTACH THE CENTER PLATE TO THE SIDE PLATES USING (4) 3/8" X 1 1/4" BUTTON HEAD BOLTS, (4) 3/8" FLAT
WASHERS, (4) 3/8" LOCK WASHERS AND (4) 3/8" HEX NUTS. DO NOT TIGHTEN.
STEP-6 ATTACH THE BOTTOM STEP TUBE TO THE SIDE PLATES USING (4) 3/8" X 1 1/4" BUTTON HEAD BOLTS.
STEP-7 ALIGN THE GRILLE GUARD ASSEMBLY, AND TIGHTEN ALL NUTS AND BOLTS.
STEP-8 POSITION THE DRIVER SIDE BRUSH GUARD UP TO THE GRILLE GUARD ASSEMBLY AND ATTACH THE
BOTTOM OF THE BRUSH GUARD TO THE GRILLE GUARD SIDE PLATE USING (1) 3/8" X 1 ¼" HEX BOLT AND (1) 3/8"
LOCK WASHER. ATTACH THE TOP OF THE BRUSH GUARD TO THE SIDE PLATE USING (2) 5/16" X 1" BUTTON HEAD
BOLTS, (2) 5/16" FLAT WASHERS AND (2) 5/16" LOCK NUTS. DO NOT TIGHTEN.
STEP-9 ATTACH THE DRIVER SIDE HEAD LIGHT PROTECTOR TO THE BRUSH GUARD USING (2) ¼" X 1" BUTTON
HEAD BOLTS, AND TO THE SIDE PLATE USING (2) 5/16" X 1" BUTTON HEAD BOLTS, (2) 5/16" FLAT WASHERS AND
(2) 5/16" LOCK NUTS. DO NOT TIGHTEN. REPEAT THE STEPS TO INSTALL THE PASSENGER SIDE BRUSH GUARD
AND HEAD LIGHT PROTECTOR.
STEP-10 ALIGN THE GRILLE AND BRUSH GUARD ASSEMBLY, AND TIGHTEN ALL NUTS AND BOLTS.
PARTS LIST
QTY
4
2
1
1
1
1
1
1
1
2
ASSEMBLY
PART DESCRIPTION
3/8" FLAT WASHER
3219) SIDE PLATE
3218P) PASSENGER BRUSH GUARD
3218D) DRIVER BRUSH GUARD
D6P) PASSENGER HEAD LIGHT PROTECTOR
D6D) DRIVER HEAD LIGHT PROTECTOR
ST3934) 3" X 39 ¾" BOTTOM STEP TUBE
CP3219) 39 ¾" CENTER PLATE
TT3934) 2" X 39 ¾" TOP TUBE
21930) CENTER PLATE BRACKET
Page 1 of 5
