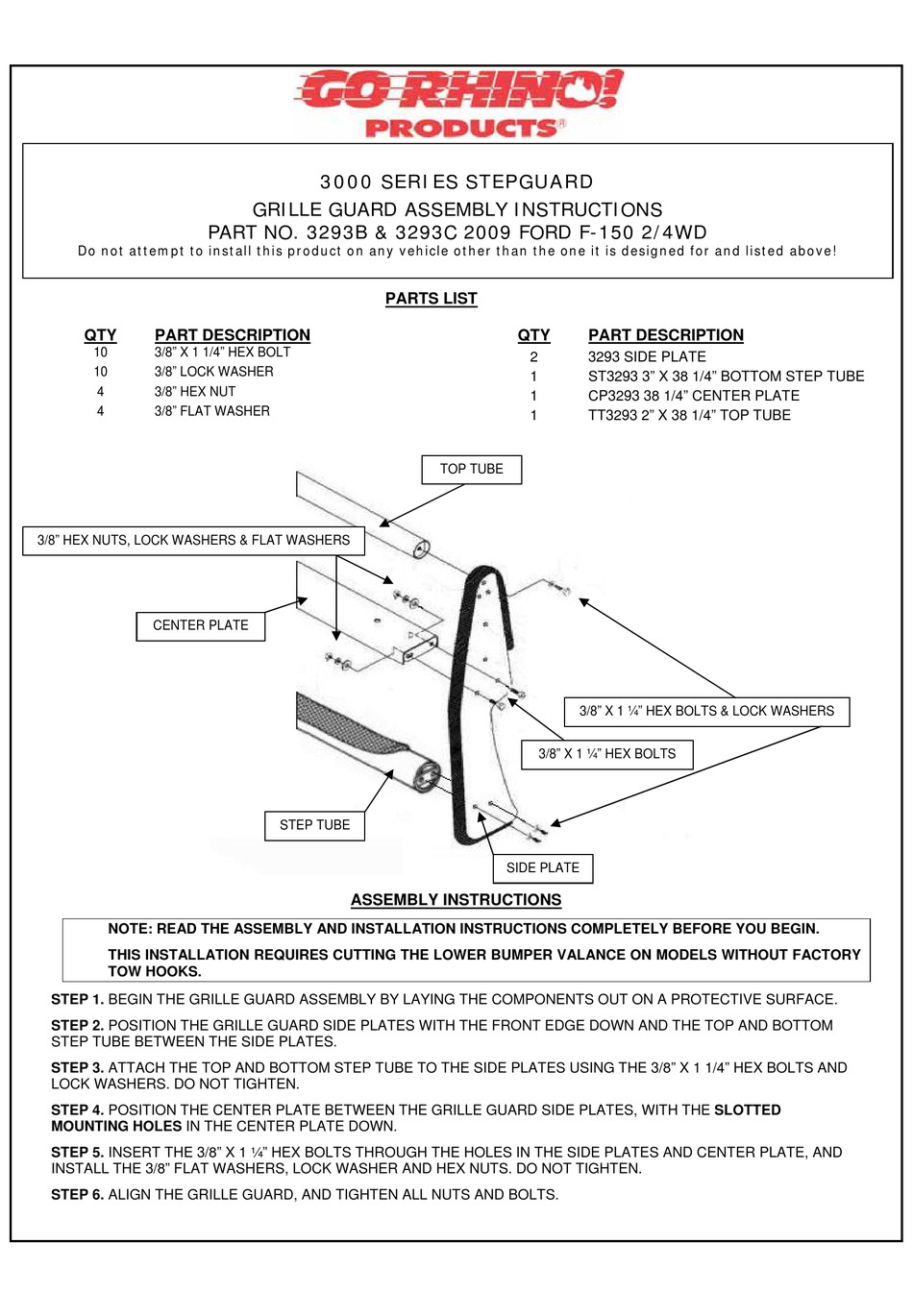

Go Rhino 3293B Assembly Instructions

PART NO. 3293B & 3293C 2009 FORD F-150 2/4WD
PART NO. 3293B & 3293C FORD F-150 / LOBO ( INCL. ECOBOOST ) 2009 - 2012
Do not attempt to install this product on any vehicle other than the one it is designed for and listed above!
QTY PART DESCRIPTION
10 3/8" X 1 1/4" HEX BOLT
10 3/8" LOCK WASHER
4 3/8" HEX NUT
4 3/8" FLAT WASHER
3/8" HEX NUTS, LOCK WASHERS & FLAT WASHERS
CENTER PLATE
NOTE: READ THE ASSEMBLY AND INSTALLATION INSTRUCTIONS COMPLETELY BEFORE YOU BEGIN.
THIS INSTALLATION REQUIRES CUTTING THE LOWER BUMPER VALANCE ON MODELS WITHOUT FACTORY
TOW HOOKS.
STEP 1. BEGIN THE GRILLE GUARD ASSEMBLY BY LAYING THE COMPONENTS OUT ON A PROTECTIVE SURFACE.
STEP 2. POSITION THE GRILLE GUARD SIDE PLATES WITH THE FRONT EDGE DOWN AND THE TOP AND BOTTOM
STEP TUBE BETWEEN THE SIDE PLATES.
STEP 3. ATTACH THE TOP AND BOTTOM STEP TUBE TO THE SIDE PLATES USING THE 3/8" X 1 1/4" HEX BOLTS AND
LOCK WASHERS. DO NOT TIGHTEN.
STEP 4. POSITION THE CENTER PLATE BETWEEN THE GRILLE GUARD SIDE PLATES, WITH THE SLOTTED
MOUNTING HOLES IN THE CENTER PLATE DOWN.
STEP 5. INSERT THE 3/8" X 1 ¼" HEX BOLTS THROUGH THE HOLES IN THE SIDE PLATES AND CENTER PLATE, AND
INSTALL THE 3/8" FLAT WASHERS, LOCK WASHER AND HEX NUTS. DO NOT TIGHTEN.
STEP 6. ALIGN THE GRILLE GUARD, AND TIGHTEN ALL NUTS AND BOLTS.
3000 SERIES STEPGUARD
GRILLE GUARD ASSEMBLY INSTRUCTIONS

PARTS LIST

STEP TUBE
ASSEMBLY INSTRUCTIONS
QTY PART DESCRIPTION
2 3293 SIDE PLATE
1 ST3293 3" X 38 1/4" BOTTOM STEP TUBE
1 CP3293 38 1/4" CENTER PLATE
1 TT3293 2" X 38 1/4" TOP TUBE
TOP TUBE
3/8" X 1 ¼" HEX BOLTS & LOCK WASHERS
3/8" X 1 ¼" HEX BOLTS
SIDE PLATE
