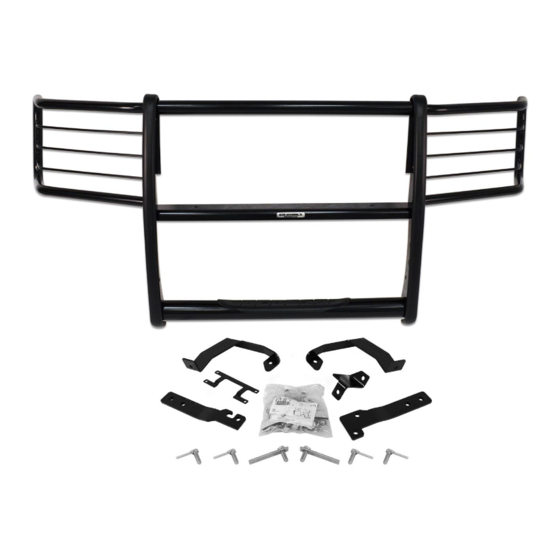

Go Rhino 3096MB Assembly Instructions

PART NO. 3096MB & 3096MC 01 - 02 Chevy Silverado 1500HD, 99 - 02 Silverado 2500
Do not attempt to install this product on any vehicle other than the one it is designed for and listed above!
QTY PART DESCRIPTION
2 1/2 x 1 1/2" HEX BOLT
6 1/2" FLAT WASHER
4 1/2" LOCK WASHER
2 1/2" HEX NUT
2 M12 HEX NUT
2 SQUARE NUT SPACER
4 3/8 x 1" BUTTON ALLEN BOLT
12 3/8 x 1" HEX BOLT
2 3/8" FLAT WASHER
14 3/8" LOCK WASHER
10 3/8" HEX NUT
READ THE ASSEMBLY AND INSTALLATION INSTRUCTIONS COMPLETELY BEFORE YOU BEGIN.
STEP 1. BEGIN THE GRILLE ASSEMBLY BY LAYING THE COMPONENTS OUT ON A PROTECTIVE SURFACE.
STEP 2. LOOSELY ATTACHING THE BOTTOM PLATE TO THE GRILLE GUARD SIDE PLATES USING THE 3/8" X
1" BUTTON BOLTS.
STEP 3. INSERT THE FLANGE WASHERS IN THE SIDE PLATES. POSITION THE TOP TUBE BETWEEN THE
GRILLE GUARD SIDE PLATES, AND SLIDE THE BRUSH GUARDS THROUGH THE SIDE PLATES, FLANGED
WASHERS AND INTO THE TOP TUBE. NOTE: LUBRICATE BRUSH GUARD TUBES TO EASE ASSEMBLY.
STEP 4. ATTACH EUROTUBE TO BRUSHGUARDS USING 5/16 x 1 3/4" FLAT HEAD SCREWS AS SHOWN IN
DIAGRAM. DO NOT SECURE.
STEP 5. POSITION THE CENTER PLATE BETWEEN THE SIDE PLATES, AND ATTACH THE CENTER PLATE
USING THE 3/8" X 1" HEX HEAD BOLTS, FLAT AND LOCK WASHERS, AND NUTS.
STEP 6. ALIGN THE GRILLE ASSEMBLY AND TIGHTEN ALL NUTS AND BOLTS. NOTE: SECURE THE TOP
TUBE USING THE 1/4" SOCKET SCREWS.
STEP 7. ATTACH THE HEAD LIGHT PROTECTORS TO THE BRUSH GUARDS USING THE 1/4" x 3/4" BUTTON
HEAD BOLTS AND TO THE SIDE PLATES USING THE 5/16" X 1" BUTTON HEAD BOLTS AND LOCK NUTS.
3000 SERIES STEPGUARD
GRILLE GUARD ASSEMBLY INSTRUCTIONS
Crew Cab P/U / 00 - 06 Suburban 2500 2/4 WD
ASSEMBLY INSTRUCTIONS
PART LIST
QTY PART DESCRIPTION
2 1037A CENTER PLATE BRACKETS
1 1038BD DRIVER UPPER BRACKET
1 1038BP PASSENGER UPPER BRACKET
1 1038CD DRIVER FRAME BRACKET
1 1038CP PASSENGER FRAME BRACKET
1 P200 PLUG KIT
2 1/4" SOCKET SCREW
2 NYLON FLANGE WASHER
4 5/16" LOCK NUT
2 5/16 X 1 3/4" FLAT HEAD BOLT
4 5/16 x 1" BUTTON BOLT
