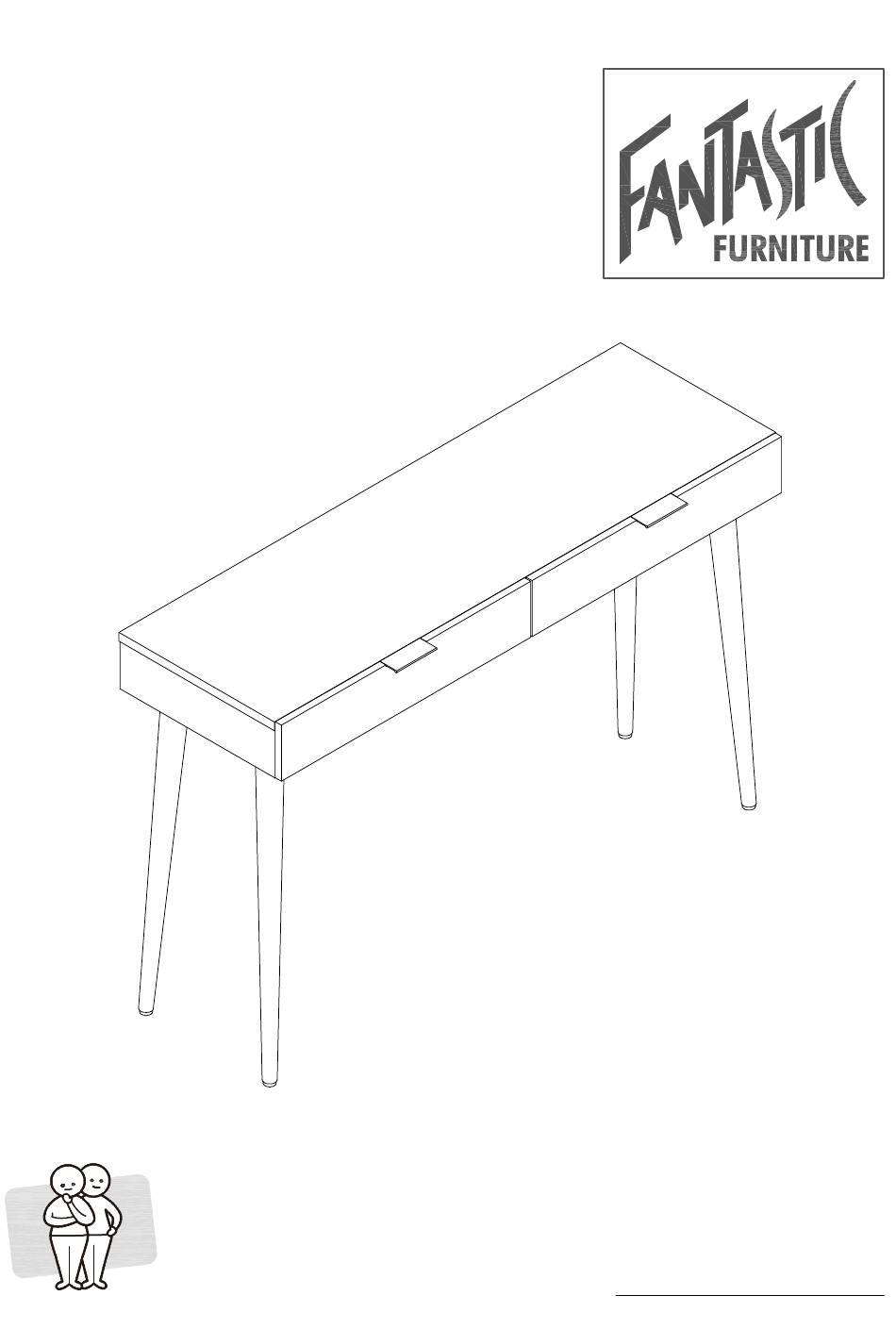

- Page 1 Version 1.0 MONACO TWO PEOPLE Hall Table 2 Drawer www.fantasticfurniture.com.au REQUIRED...
- Page 2 Enjoy Your purchase from Australia's Best Value Furniture Store WARNING: ENSURE THE WALL BRACKET IS ATTACHED TO AVOID SERIOUS INJURY. To avoid any serious or fatal injury, this product has been fitted with a wall bracket to prevent toppling. We strongly recommend that this product is permanently fixed to the wall or other suitable surface.
-
Page 3: Assembly Checklist
Assembly checklist Read through the instructions carefully Make sure you have all the required tools. Never use power tools unless instructed. before you begin. Identify and lay out all of the components Unless instructed, do not fully tighten screws before you begin assembly. until the item is fully assembled. -
Page 4: What You Need
What you need to assemble the product Top Panel (P1) Other tools you need Flat head screwdriver; Phillips head Divider (P10) screwdriver; Mallet Panel (P5) Drawer Back (P8) Panel (P10) (P9) (P11) Drawer Left Side (P8) Metal Bar(P13) Part list Box 1: 4x Leg (P14);... - Page 5 Step 1 You will need 6 x Cam Phillips head Bolt (H1) screwdriver Screw 6 x Cam Bolts (H1) into Top Panel (P1) as shown. Step 2 Separate the Slide Runners (H18-2) and Slide Tracks (H18-1) from Slide (H18) by following the steps below: Extend the Slide Runner all the way forward.
- Page 6 Step 3 You will need H18-1 2 x Slide 4 x Big Wood Dowel (H4) Track (H18-1) 6 x Screw (H7) Phillips head Mallet screwdriver Insert 4 x Big Wood Dowels (H4) into Divider Panel (P5). Attach 1 x Slide Track (H18-1) onto one side of Divider Panel (P5) with 3 x Screws (H7); Turn Divider Panel (P5) around and attach 1 x Slide Track (H18-1) onto another side with 3 x Screws (H7).
- Page 7 Step 5 You will need 2 x Screw Allen Key (H3) (H12) (P2) Position Bottom Panel (P2) on its edge with its groove nearer to the floor. Position the Divider Panel (P5) onto the Bottom Panel (P2), with its bare edge facing downward, and its cam nut holes are furthest away from the Bottom Panel.
- Page 8 Step 7 You will need 12 x Bolt Allen Key (H16) (H12) 1 x Screw 1 x Wall (H7) Bracket (H13) Phillips head screwdriver Fix each Metal Leg (P14) onto Bottom Panel (P2) with 3 x Bolts (H16) using Allen Key (H12). Fasten Wall Bracket (H13) onto Bottom Panel (P2) with Screw (H7) as shown.
- Page 9 Step 9 (P4) (P2) (P3) Slide Back Panel (P12) into the grooves as shown. Step 10 You will need 6 x Big Cam Flat head Nut (H2) screwdriver (P4) (P5) (P3) This is how a cam nut works..The head of the cam bolt goes into the open mouth of the cam nut.
- Page 10 Step 11 You will need XX = YY 4 x Screw 4 x Back Panel Connector (H15) (H14) (P1) Phillips head screwdriver (P3) If necessary, gently adjust the Top Panel (P1) sideway in either direction until XX and YY are equal. Fix the Back Panel Connectors (H15) with Screws (H14) as shown.
- Page 11 Step 13 You will need (P8) Insert 1x Small Wood Dowel (H5) 4 xSmall 4 xSlide into each Drawer Left Side (P8) and Runner (H18-2) Cam Bolt (H10) Drawer Right Side (P9) as shown. Attach 1 x Slide Runner (H18-2) onto each Drawer Sides (P8) &...
- Page 12 Step 15 You will need 4 x Small Phillips head Cam Nut (H9) screwdriver (P6) (P7) (P9) (P9) (P8) Position Drawer Front (P6) onto Drawer Sides (P8) & (P9). Rotate 1x Small Cam Nut (H9) so the arrow points towards the incoming cam bolt and insert the Small Cam Nut (H9) into Drawer Side Panel (P8) or (P9).
- Page 13 Step 17 √ Move Inner Ball Bearing Track outward. Push Middle Track in. Gently Insert Slide Runner into Ball Bearing Track. Position Drawer so that Slide Runner (H17-2) aligns with Slide Track (H17-1) as shown. Gently push drawer into the closed position. www.fantasticfurniture.com.au PAGE 13...
- Page 14 Step 18 (P14) (P14) If the Hall Table is not level, you can adjust the height of each Leg by turning the feet of Legs clockwise or counter-clockwise. www.fantasticfurniture.com.au PAGE 14...
-
Page 15: Job Complete
Job Complete !
