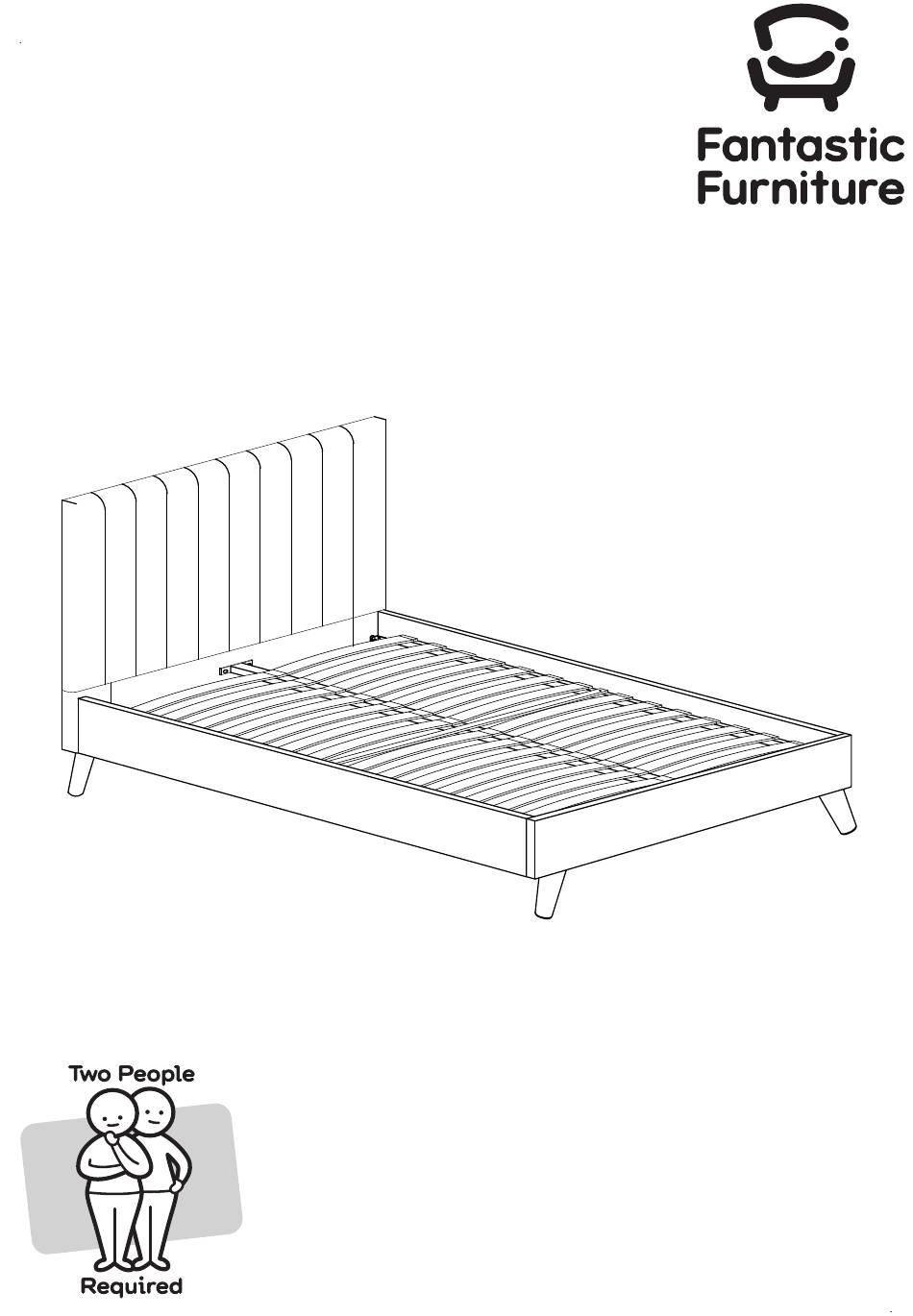

- Page 1 Version 1.4 Montana Bed Queen /Bed King fantasticfurniture.com.au...
- Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture fantasticfurniture.com.au fantasticfurniture.com.au...
- Page 4 What you need to assemble the product Headboard (P1) Side Rail (P6) Other tools you need: Phillips head screwdriver; Leg(P3) Timber Cross Rail Side Rail (P5) (P6) Footboard Centre Rail (P2) (P7) Footboard Leg Support Block (P4) Support leg (P8) Support leg Leg(P3) (P8)
- Page 5 Step 1a You will need Allen Key 6 x Large Bolts 55mm 6 x Washers 6 x Spring Washers (H4) (H9) (H2) (H8) (H2) (H9) (H8) (P2) (H4) (P4) Attention: (P4) Large hole Small hole Do not screw hardware from this side. Screw hardware from this side.
- Page 6 Step 1b You will need 4 x Screws 38mm Phillips head Screwdriver (not provided) (H5) (P2) (H5) Attention: Large hole Small hole Do not screw hardware from this side. Screw hardware from this side. Secure 4 x Screws (H5) to the footboard leg support block (P4) using a phillips head screwdriver (not provided).
- Page 7 Step 2 You will need Allen Key 8 x Washers 8 x Medium Bolts 20mm (H2) (H7) (H4) (P3) (H4) (H7) (H2) (P4) (P3) (P1) (H4) (H7) (H2) (P2) Attach 4 x legs (P3) to the bottom of headboard (P1) and footboard leg support blocks (P4) using 8 x medium bolts (H7) and 8 x washers (H4), tightening with the allen key (H2).
- Page 8 Step 3 You will need Allen Key 8 x Large Head Bolts 16mm (H1) (H2) (P1) (P2) (P6) (H1) (P1) (P6) (H2) (P6) (P2) Install 8 x large head bolts (H1) into the brackets of the headboard (P1) and footboard (P2), tightening two thirds of the way with the allen key (H2) as shown.
- Page 9 Step 5 You will need Allen Key 4 x Washers 4 x Small Bolts 15mm (H2) (H4) (H3) You must use. (P1) (H2) (P7) (H4) (H3) (P6) (P7) (P6) (P2) Adjust the support legs (P8) so there is a gap of 10mm between the bottom of the legs and the floor.
- Page 10 Step 6 You will need 28 x End 14 x Centre (P11) (P11) Connectors Connectors (P10) (P10) (P9) (P9) (P9) 28 x Slats (P11) Connect 2 x end connectors (P9), 2 x slats (P11) and a centre connector (P10) together as shown. Insert the full slat into the side rail and centre rail one by one by pressing down firmly.
- Page 11 Repeat for every bed slat until finished. Step 7 You will need Make sure screws (H5) Allen Key 2 x Screws 38mm are fully tightened. (H2) (H5) (H5) (P5) (H2) Phillips head 1 x Felt Pad Screwdriver (H6) (P1) (P6) (P2) (P5) (H6)
-
Page 12: Job Complete
Step 8 Job complete! In the interest of our environment please dispose of all packaging thoughtfully. fantasticfurniture.com.au Page 12...
