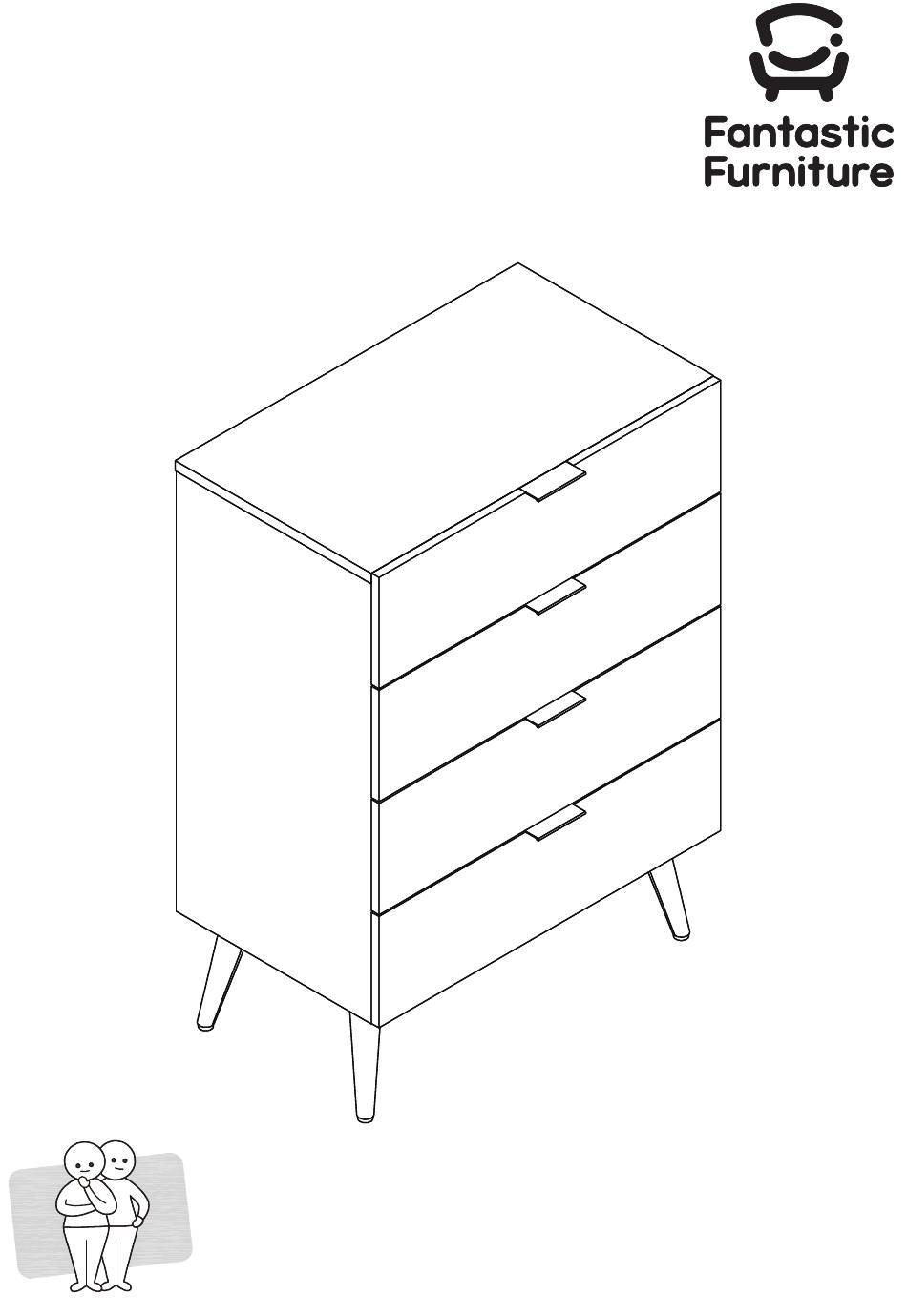

- Page 1 V V e e r r s s i i o o n n 1.2 Monaco Monaco Two People TallBoy 4 Drawers TallBoy 4 Drawers fantasticfurniture.com.au fantasticfurniture.com.au Required...
- Page 2 Secure it! Preventing furniture tip-over accidents WARNING: ENSURE THE WALL STRAP IS ATTACHED TO AVOID SERIOUS INJURY. To avoid any serious or fatal injury, this product has been supplied with a wall strap to prevent toppling. We strongly recommend that this product is permanently fixed to the wall or other suitable surface.
- Page 3 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love Love it? Share it! Fantastic buy! Share how it looks at home for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture fantasticfurniture.com.au Page 3...
-
Page 4: Assembly Checklist
Assembly Checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten Identify and lay out all of the screws until the item is fully assembled. components before you begin assembly. -
Page 5: What You Need
What you need Upper Back Panel (P12) to assemble the product Top Panel (P1) Back Rail Right Side (P6) Panel (P4) Front Rail Other tools you need (P5) Left Side Flat head screwdriver; Panel (P3) (P9) Phillips head screwdriver; Mallet (P10) Drawer Base (P11) - Page 6 Step 1 You will need 4 x Big Cam 1 x Wall Bolt ( H1) Bracket ( H13) 1 x Screw Phillips head ( H7) screwdriver ( P1) Screw 4 x big cam bolts (H1) into top panel (P1) as shown. Fasten wall bracket (H13) on top panel (P1) with screw (H7).
- Page 7 Step 3 You will need Slide Track H17-1 Slide Track H17-2 8 x Slide (H17) Separate the 8 sets of slide runners (H17-2) and slide tracks (H17-1) from slides (H17) by following the steps below: Extend each slide runner fully. Press the release lever of the slide down and pull the slide runner (17-2) out completely.
- Page 8 Step 5 You will need Adjust runner to access the screw holes. 4 x Big Cam 2 x Big plastic dowel (H4) H17-1 Bolt ( H1) H17-1 12 x Screw 4 x Slide (H7) track (H18-1) H17-1 Phillips head Mallet screwdriver (P4) H1 7-1...
- Page 9 Step 6 ( P5) You will need ( P6) x Big Cam Flat head ( P2) Nut (H2) screwdriver This is how a cam nut works..The head of the cam bolt goes into the open mouth of the cam nut. ( P4) You then turn the cam nut so it tightens over the bolt.
- Page 10 Step 8 You will need (P3) Flat head 4 x Big Cam screwdriver Nut ( H2) (P6) This is how a cam nut works..(P5) The head of the cam bolt goes into the open mouth of the cam nut. You then turn the cam nut so it tightens over the bolt.
- Page 11 Step 10 You will need 5 x Bolt Allen Key ( H3) ( H12) (P2) ( P14 ) Attach bottom support (P14) onto bottom panel (P2) with 5 x bolts (H3) using Allen key (H12). With help, carefully turn the assembled unit over. Step 11 ( P1 ) You will need...
- Page 12 Step 12 You will need ( P1 ) 6 x Screw 6 x Back Panel ( P12 ) Connector (H15) (H14) Phillips head ( P13 ) XX = YY screwdriver Two people are needed here. If necessary, gently adjust the top panel (P1) sideways in either direction until XX and YY are equal.
- Page 13 Step 14 You will need 16 x Small Phillips head Cam Bolt (H10) screwdriver (P7) Screw 4 x small cam bolts (H10) into each drawer front (P7) using a Phillips head screwdriver. Step 15 H1 7 -2 You will need 8 x Slide 24 x Screw Runner (H17-2)
- Page 14 Step 16 You will need (P9) 16 x Screw Phillips head (H6) screwdriver (P10) (P8) Attach 1 x drawer left side panel (P8) and 1 x drawer right side panel (P9) to 1 x drawer back panel (P10) with 4 x screws (H6), so that their grooves are aligned. Repeat for all drawer panels.
- Page 15 Step 18 This is how a cam nut works..You will need The head of the cam bolt goes into the open mouth of the cam nut. You then turn the cam nut so it tightens over the bolt. ( P7) 16 x Small Phillips head Cam Nut (H9)
- Page 16 Step 20 ( P1 ) ( P7) ( P3) ( P7) ( P7) ( P7) Move inner ball bearing track to front of slide track (H17-1). H17-1 Gently insert drawer slide runner into ball bearing track. H17-2 H17-1 Position drawer so that slide runners (H17-2) are aligned with slide tracks (H17-1) on both sides of the drawer as shown.
- Page 17 Step 21 (P1 5) (P1 5) If the tallboy is not level, you can adjust the height of each leg by turning the feet of legs clockwise or counter-clockwise. fantasticfurniture.com.au Page 17...
-
Page 18: Job Complete
Step 22 Job complete! In the interest of our environment please dispose of all packaging thoughtfully. fantasticfurniture.com.au Page 18... - Page 19 THIS TOP IS FINISHED WITH A CLEAR LACQUER Avoid placing hot items directly onto the surface unless using a thick insulation material such as placemats or coasters. Heat may lead to discolouration or other damage to the surface of the product. Use a soft cloth that has been dampened in water to clean the surface of this product.
