Conduits For Wiring; Clearances; Figure 3: Conduits For Wiring - Mircom FA-103 Installation And Operation Manual

Mechanical Installation

Conduits for Wiring

AC power must be run through a dedicated conduit, in knockouts A or B, shown in Figure 3. All other circuits are
current limited, and must be run through knockouts C or D.

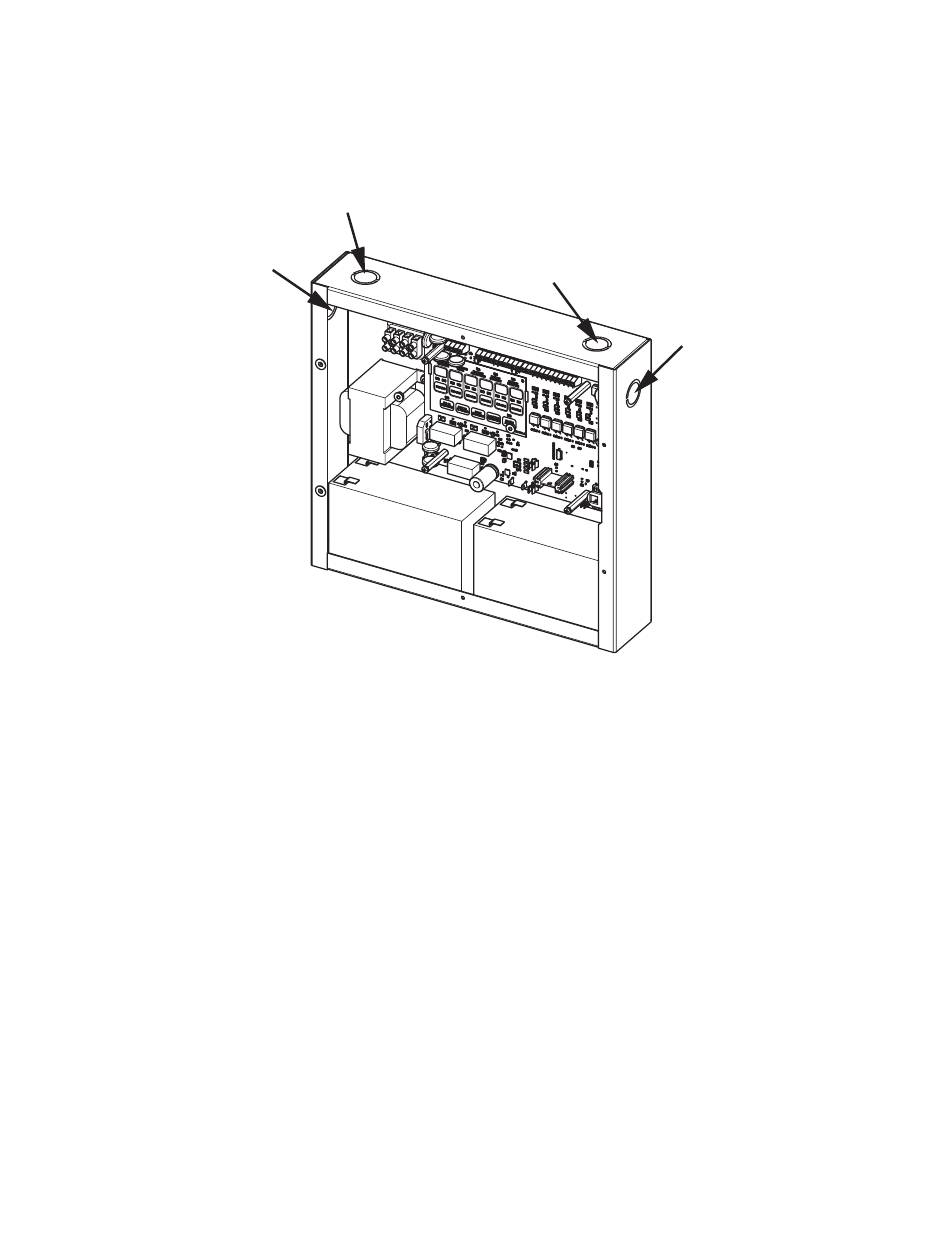

Figure 3: Conduits for Wiring

Clearances

The controls shall be no less than 600 mm and no more than 1800 mm above the finished floor.
