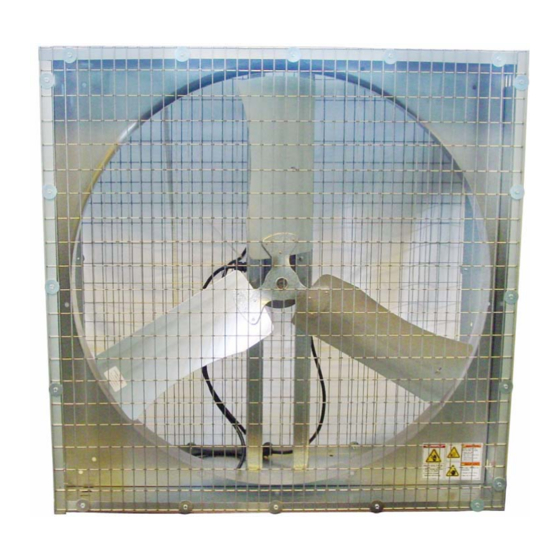

- Page 1 36" Direct Drive Box Fans Installation Manual PNEG-1872 Version: 4.0 Date: 01-31-20 PNEG-1872...
- Page 2 PNEG-1872 36" Direct Drive Box Fans...
-
Page 3: Table Of Contents
36" Motor and Motor Mount/Upright Assembly Instructions ..............13 Motor Mount Uprights to Venturi ......................14 Fan Housing Assembly Instructions .....................15 Propeller Installation ..........................16 Attach Grill Guard ..........................17 Chapter 4 Troubleshooting Guide ........................18 Chapter 5 Warranty ..............................19 PNEG-1872 36" Direct Drive Box Fans... -
Page 4: Chapter 1 Safety
Personnel operating or working around equipment must read this manual. This manual must be delivered with equipment to its owner. Failure to read this manual and its safety instructions is a misuse of the equipment. ST-0001-4 PNEG-1872 36" Direct Drive Box Fans... -
Page 5: Cautionary Symbols Definitions
This symbol is used to address practices not related to NOTICE personal injury. This symbol indicates a general hazard. This symbol indicates a prohibited activity. This symbol indicates a mandatory action. ST-0005-2 PNEG-1872 36" Direct Drive Box Fans... -
Page 6: Safety Cautions
Learn how to operate the machine and how to use controls properly. Do not let anyone operate without instruction. • If you do not understand any part of this manual or need assistance, contact your dealer. ST-0002-1 PNEG-1872 36" Direct Drive Box Fans... - Page 7 The fan described in this manual is designed solely for the purpose of ventilating agricultural buildings. Use of the fan in any other way is a misuse of the equipment and may endanger health and safety. ST-0023-1 PNEG-1872 36" Direct Drive Box Fans...
- Page 8 ST-0018-2 Sharp Edge Hazard • This product has sharp edges, which can cause serious injury. • To avoid injury, handle sharp edges with caution and always use proper protective clothing and equipment. ST-0036-2 PNEG-1872 36" Direct Drive Box Fans...
-
Page 9: Electrical Safety
Do not attempt maintenance or repairs on the fan unless you are competent to do so. Understand service procedures before doing work. • Use only genuine Cumberland parts when maintaining the fan. Use of other non-genuine parts is a misuse and can lead to dangerous situations. •... -
Page 10: Correct Use Of Your Direct Drive Box Fans
Correct Use of Your Direct Drive Box Fans Only genuine Cumberland parts are to be used in the installation, maintenance and use of the Direct Drive Box Fans. Use of other non-genuine parts is a misuse of the system and may lead to dangerous situations imperilling the safety and health of you and others. -
Page 11: Safety Sign-Off Sheet
Below is a sign-off sheet that can be used to verify that all personnel have read and understood the safety instructions. This sign-off sheet is provided for your convenience and personal record keeping. Date Employee Name Supervisor Name ST-0007 PNEG-1872 36" Direct Drive Box Fans... -
Page 12: Chapter 2 Safety Decals
This manual describes the installation and operation for all standard production Direct Drive Box Fans. Safety decals should be read and understood by all people in the Direct Drive Box Fans area. If a decal has been damaged or is missing, contact Cumberland for a free replacement: Cumberland 1004 E. -
Page 13: Chapter 3 Direct Drive Box Fans Assembly Instructions
Use four (4) #10-32 star lock nuts and eight (8) 3/16" back up washers (four (4) on each side of the upright) to secure motor to uprights. (See Figure 3A.) Motor mount uprights Figure 3A PNEG-1872 36" Direct Drive Box Fans... -
Page 14: Motor Mount Uprights To Venturi
3. Direct Drive Box Fans Assembly Instructions Motor Mount Uprights to Venturi Use 3/8" x 3/4" hex bolts and 3/8" nylock nuts to attach the uprights to the venturis. (See Figure 3B.) Figure 3B PNEG-1872 36" Direct Drive Box Fans... -
Page 15: Fan Housing Assembly Instructions
NOTE: Do not overtighten type truss screws or stripping of the holes and/or screws will occur. Install the four (4) housing panels and the venturi together using #14 x 1/2" type truss screws. (See Figure 3C.) Use #14 x 1/2" truss screw Box fan housing panel (4) Figure 3C PNEG-1872 36" Direct Drive Box Fans... -
Page 16: Propeller Installation
Propeller Installation Place propeller on drive shaft until the outside of the hub of the propeller is flush with the end of the shaft. Tighten to 120 inch-pounds of torque. (See Figure 3D.) Figure 3D PNEG-1872 36" Direct Drive Box Fans... -
Page 17: Attach Grill Guard
(See Figure 3E.) Figure 3E 2. Secure wire mesh guard on both sides of fan with #10-32 x 3/4" hex washer head type “F” screws and 1-1/4" outer diameter washers as shown in Figure Figure 3F PNEG-1872 36" Direct Drive Box Fans... -
Page 18: Chapter 4 Troubleshooting Guide
Clean unit. Check line voltage at motor, verify wiring is of sufficient gauge for load and length of Power supply voltage is too low. conductor. Check with local utility supplier for possible line problems. PNEG-1872 36" Direct Drive Box Fans... -
Page 19: Chapter 5 Warranty
GSI warrants, subject to all other conditions described in this Warranty, Service Parts which it manufactures for a period of 12 months from the date of purchase, unless specified in Enhancements above. Parts not manufactured by GSI will carry the Manufacturer’s Warranty. (Protein Limited Warranty_REV01_06 November 2018) PNEG-1872 36" Direct Drive Box Fans... - Page 20 This equipment shall be installed in accordance with the current installation codes and applicable regulations, which should be carefully followed in all cases. Authorities having jurisdiction should be consulted before installations are made. 1004 E. Illinois St. Assumption, IL 62510-0020 Phone: 1-217-226-4421 Fax: 1-217-226-4420 www.cumberlandpoultry.com...
