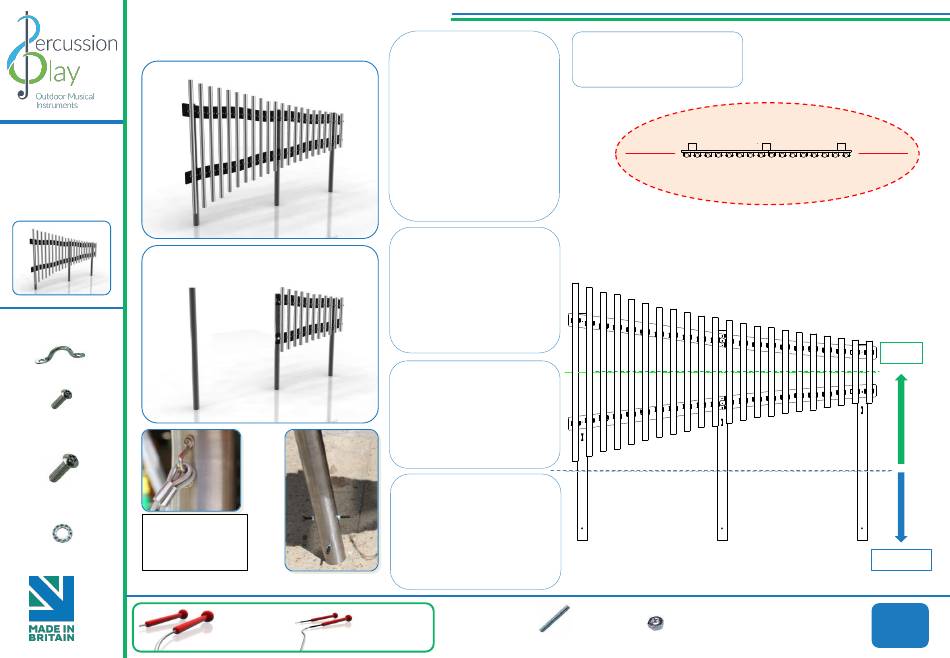

Percussion Play Freechimes Diatonic Symphony Installation Instructions

Installation Instructions

Ground Fixed
Freechimes
Diatonic
Symphony
Page 1 of 4
Components:
Eye Straps
X3
M6x20mm
Secure Screw
X6
M8x40mm
Secure Screw
X10
Metric Conversion:
600mm/ 24"
850mm/ 33"
M8 Lock Washer
1.5m/ 59"
X10
Weight of heaviest part
BS EN 1176
1. Carefully lay 3 x legs on a
level surface and check
distance between each leg is
equal. Join together the 2
parts of the symphony. Line
up pre drilled holes in the
backboards with the legs and
ensure the instrument is
aligned square with the legs.
Fix in place using M8x40mm
screws supplied (see
installation guide)
2.(See ground fix
sheet)Excavate 3 holes on
site of installation
approximately 600mm deep
adjust depth according to age
range for intended players)
Insert M10 Bar and nuts into
holes at base of legs
3. Carefully raise the
instrument from the ground
with legs attached and locate
(lower) legs into holes making
sure they are vertical and
level prior to concreting in
place.
4. Once happy with location
and levels, fill holes using
rapid hardening concrete. Be
sure to compact concrete
around legs and leave to dry
according to manufactures
guidelines
18kg (Freechimes Left Panel)
Pair Large Red Pair Small
Beaters X2 Beaters X1
5. Beaters can be fixed to
Stainless Steel posts with
fixings provided
KS2 – 850mm
Ground Fix
x6
Components:
M10x200 Threaded Bar
1.5m
Ground Surface
Spares available from
x12
percussionplay.com
local distributor
M10 Nut
Install Instrument
with 1.5m free space
(from widest point)
around it.
1.5m
KS2
600mm
30 Kg
or from your
