- Page 1 Powerful Stirring Leading Safety Standards Superior Ease of Use Reduced Cost of Ownership Operating Instructions Overhead Stirrers Hei-TORQUE Operating instructions must be read before initial start- up. Please follow the safety instructions provided. Please keep for future reference.
-
Page 2: Table Of Contents
Safety for the personnel ................8 Safety during use ....................8 Disposal ......................8 Device Description Device overview ....................9 Hei-TORQUE Value overall view ..............9 Hei-TORQUE Value control panel ..............9 Start Up Power cord ......................10 Connect/disconnect power cord ..............10 Switch unit on and off ..................10 Operation Rotation ......................11... - Page 3 Contents Cleaning and Maintenance Cleaning ......................17 Maintenance ....................17 Troubleshooting Malfunctions and clear up ..................18 Assembly Install support rod ...................19 Electrical connections ..................20 Disassembly and Storage Dismantling, transportation and storage ..............21 Dismantling ....................21 Transportation and storage .................21 Accessories and Spare Parts Scope of delivery ....................22 Accessories ......................22 Attachments...
-
Page 4: Safety Instructions Inhaltsverzeichnis
About this Document Safety Instructions Version and variants Version This manual describes the function, operation and maintenance of the stirrer Hei-TORQUE. Version Alteration date 02/2015 Variants The units are available in different confi gurations. Certain features and functions apply to specifi c confi gurations only. -
Page 5: Terms And Signs Used
About this Document Terms and signs used In this manual you will fi nd standardized terms and signs to warn you of possible dangers or give important hints. Please take special notice to these signs to avoid personal injury or damage to the appliance. The following terms and type of signs (basic drawing elements) are used: Symbol Additional term / Description... -
Page 6: Safety Instructions
Safety Instructions Safety Instructions General safety instructions EC Declaration of Conformity This device complies with the following EG-Directives*: ▪ 2006/42/EC Machinery Directive ▪ 2014/35/EU Low-Voltage Directive ▪ 2014/30/EU Electromagnetic Compatibility Directive *Also see attachment “EC Declaration of Conformity”. The device has been constructed according to state-of-the-art technology and recognized safety regulations. -
Page 7: Installation / Electrical Safety
Safety Instructions Installation / Electrical safety ▪ The device may only be connected when the mains voltage corresponds to the infor- mation on the type plate of the unit. ▪ The mains connection must be accessible at all times. ▪ Repairs may only be performed by a qualified electrician. -
Page 8: Changes To The Unit
Safety Instructions Changes to the unit ▪ No unauthorized changes may be made to the unit. ▪ No parts may be used which have not been approved by the manufacturer. ▪ Unauthorized changes result in the EC Declaration of Conformity losing its validity, and the appliance may no longer be operated. -
Page 9: Device Description

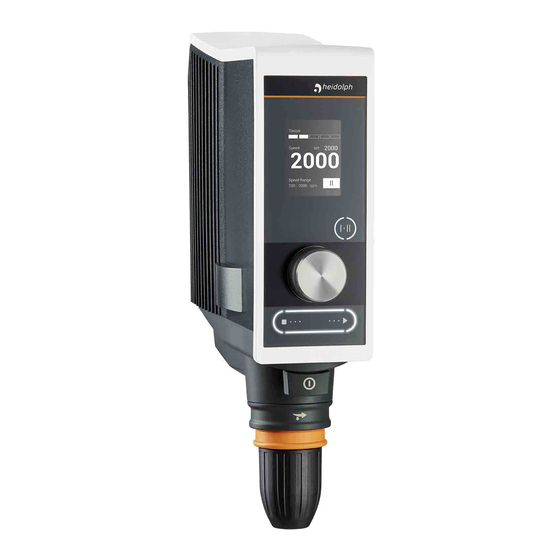

Device Description Device Description Device overview Hei-TORQUE Value overall view Display Gear stage setting (only Hei-TORQUE Value 400 / Hei-TORQUE Precision 400) Speed adjustment On/Off switch rotation On/Off switch Chuck Hei-TORQUE Value control panel Torque performance Set rotation speed Actual rotation speed... -
Page 10: Start Up
Start Up Start Up Power cord Connect/disconnect power cord Connect power cord to unit The plug comes with a yellow clip on the bottom side to ensure a firm attachment. Power cord Clip Plug ➜ Connect the plug to the socket on the back side of the unit with the yellow clip pointing downwards. -
Page 11: Operation
Rotation Speed range and speed adjustment The speed range varies from: ▪ 40 – 2,000 rpm’s for the Hei-TORQUE Value models ▪ 5 – 2,000 rpm’s for the Hei-TORQUE Precision models (For more details see chapter „Technical data”.) The overhead stirrer operates clockwise. -
Page 12: Switch Rotation On And Off
Operation Switch rotation on and off Warning: Risk of injury! Rotating items may partly injure the operator if in contact with hair, clothing, jewelry and other items. ▪ Never touch any rotating parts. ▪ Don’t wear clothing belts, ties which may get gripped by rotating parts. -
Page 13: Speed Range Settings
Operation Speed range settings (only available for Hei-TORQUE Value 400 and Hei-TORQUE Precision 400) To ensure constant speed under changing loads you can choose between two gear settings. Caution: Possible transmission failure Gear transmission can be damaged if you switch between gear stage I and II during operation. -
Page 14: Attach Impellers
Operation Attach impellers Open chuck Warning: Risk of injury! If the unit is not powered off completely, rotation may start unexpectedly while opening or closing the chuck. This may result in serious injuries. Always switch the unit off when opening and closing the chuck. The device is switched off. -
Page 15: Close Chuck
Operation Close chuck Warning: Risk of injury! If the chuck is not closed properly the impeller may disconnect during rotation and result in serious injuries. Impeller is securely attached once the chuck has locked in. ➜ Move the impeller upwards until it has reached an operational position. -
Page 16: Shaft Guard
Operation Shaft guard To prevent injuries caused by rotating parts a shaft guard can be attached. (optional accessory P/N 509-08000-00) To mount the shaft guard use a TORX screw driver T20. Attach shaft guard ➜ Hold the adaptor to the chuck with the cut-out below the on/off switch. -
Page 17: Cleaning And Maintenance
▪ Abrasive cleaning agents such as cleaning rags, scrubbing agents or any other agents which include metal components Maintenance The unit is maintenance-free. Any necessary repair must be performed by an authorized Heidolph distributor. Please contact Heidolph Instruments or your local Heidolph Instruments distributor. -
Page 18: Troubleshooting
Switch off the device and torque display blinks switched the unit off allow it to cool down. ▪ Reduce rotation speed. ▪ Use a different impeller. If you experience a malfunction which can not be resolved, please contact your authorized Heidolph Instruments distributor immediately. -
Page 19: Assembly
Assembly Assembly Install support rod On the back side of the unit you will find a slot to install the support rod. To install the support rod you require a TORX screw driver T20. The back support rod allows you to attach the stirrer to a stand in conjunction with a 2-way clamp or to a wall grid. -
Page 20: Electrical Connections
Repairs are allowed by qualifi ed professionals only. Any improper repair can result in a dangerous situation. Contact your local Heidolph Instruments distributor for any repair you may have. The unit and voltage must match. The type label on the back side of the unit provides all voltage specifi cs. -
Page 21: Disassembly And Storage
Disassembly and Storage Disassembly and Storage Dismantling, transportation and storage Dismantling Warning: Risk of injury! While the unit is plugged in you are at harm if the rotation is accidently switched to ON mode. Prior to dismantling always disconnect the plug from the electrical socket. -
Page 22: Accessories And Spare Parts
Accessories and Spare Parts Scope of delivery Component Variant Quantity Product number Value 100 501-61010-00 Value 200 501-62010-00 Value 400 501-64010-00 Hei-TORQUE Precision 100 501-61020-00 Precision 200 501-62020-00 Precision 400 501-64020-00 Support rod 22-02-14-01-41 Rotation knob 11-300-007-19 Power cord 14-007-045-55... -
Page 23: Attachments
Shaft (Ø x L mm) 13 x 160 Ø Impeller min./max. (mm) 2.5 – 12.5 95 % relative humidity, no condensation Permissible ambient conditions 0 - 40 °C Model Hei-TORQUE Value Precision Interface USB-serial Timer Panel 2.4” TFT-display, monochrom 3.2” TFT-display, colour... - Page 24 Attachments Performance range Hei-TORQUE Value 100 Hei TORQUE Precision 100 Hei-TORQUE Value 200 Hei TORQUE Precision 200 Hei-TORQUE Value 400 Hei TORQUE Precision 400...
-
Page 25: Service
Fax: +49 – 9122 - 9920-84 E-Mail: service@heidolph.de www.heidolph.de Heidolph Instruments North America Phone: 1-866-650-9604 E-mail: service@heidolph.com www.heidolphNA.com Heidolph Instruments United Kingdom Phone: 01799 - 5133-20 E-mail: service@radleys.co.uk www.heidolph-instruments.co.uk All other countries You will fi nd contact details of your local Heidolph distributor at www.heidolph.com... -
Page 26: Warranty
In the case of a part or manufacturing defect, the device shall be repaired or replaced free of charge under the terms of the warranty. Heidolph Instruments shall not assume liability for any damages incurred as a result of improper handling or transport. -
Page 27: Confirmation Of Condition Of Unit
Is the unit in a condition which does not represent any health threats for the staff of our service department? If not, which substances has the unit come into contact with? Legally binding declaration The customer is aware of being legally liable to Heidolph Instruments for any damages arising from incomplete and incorrect information. Date Signature... - Page 28 This documentation is not subject to revision; the latest version of this documentation can be found on our homepage. The copyright for all texts and images is held by Heidolph Instruments GmbH & Co. KG.
