10. Known Issues

Excessive Gain on the Output Stage
Symptom: low input signals yelding to +6dB gain on the
output stage.

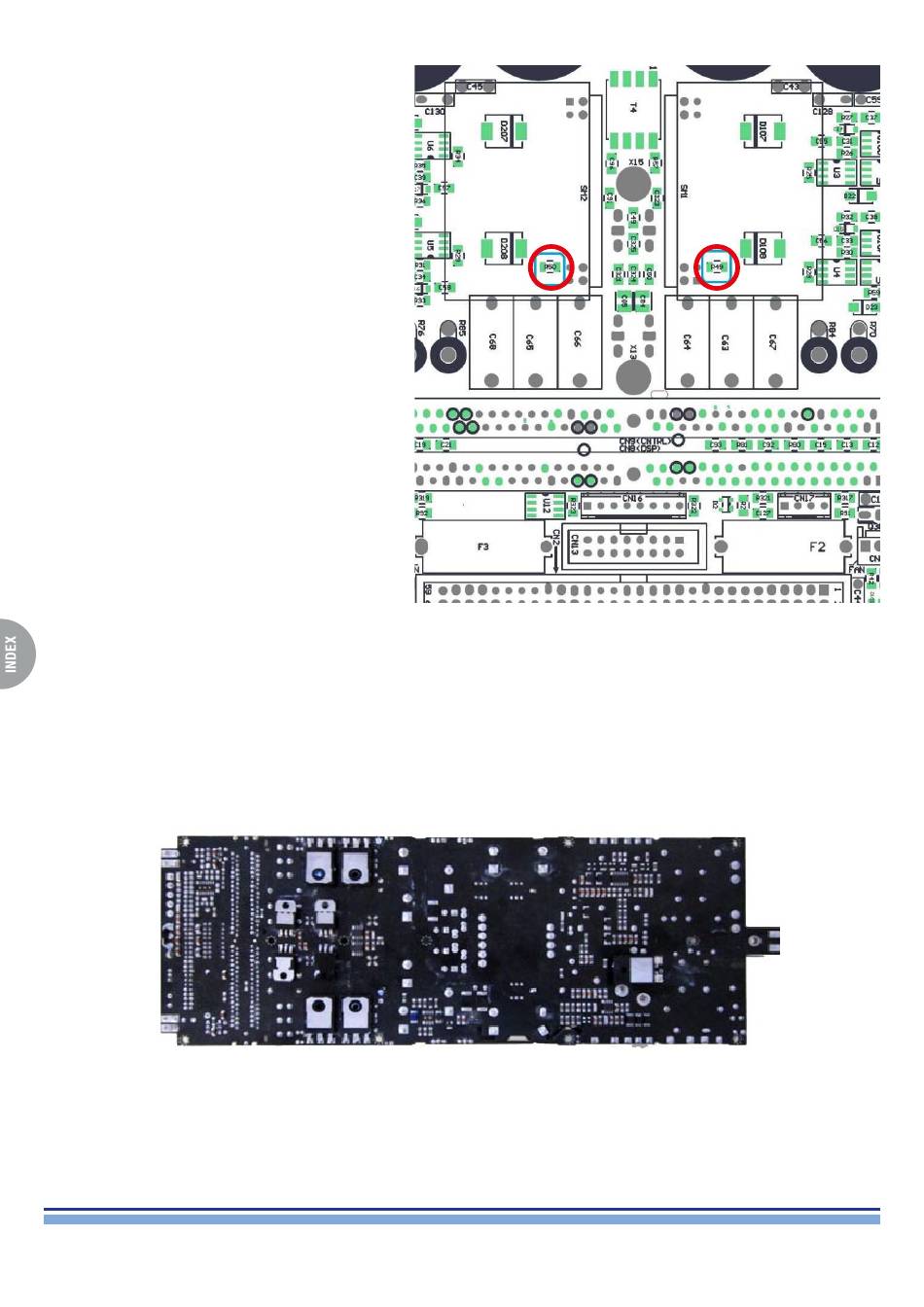

Check R49, R50, highlighted on (Fig. 31), with a
multimeter set to OHM.
(Fig. 31)
11. Reassembling the module
Carefully clean the components on the PCB: remove any residue of glue, dirt and dust. (Fig. 32)
(Fig. 32)
