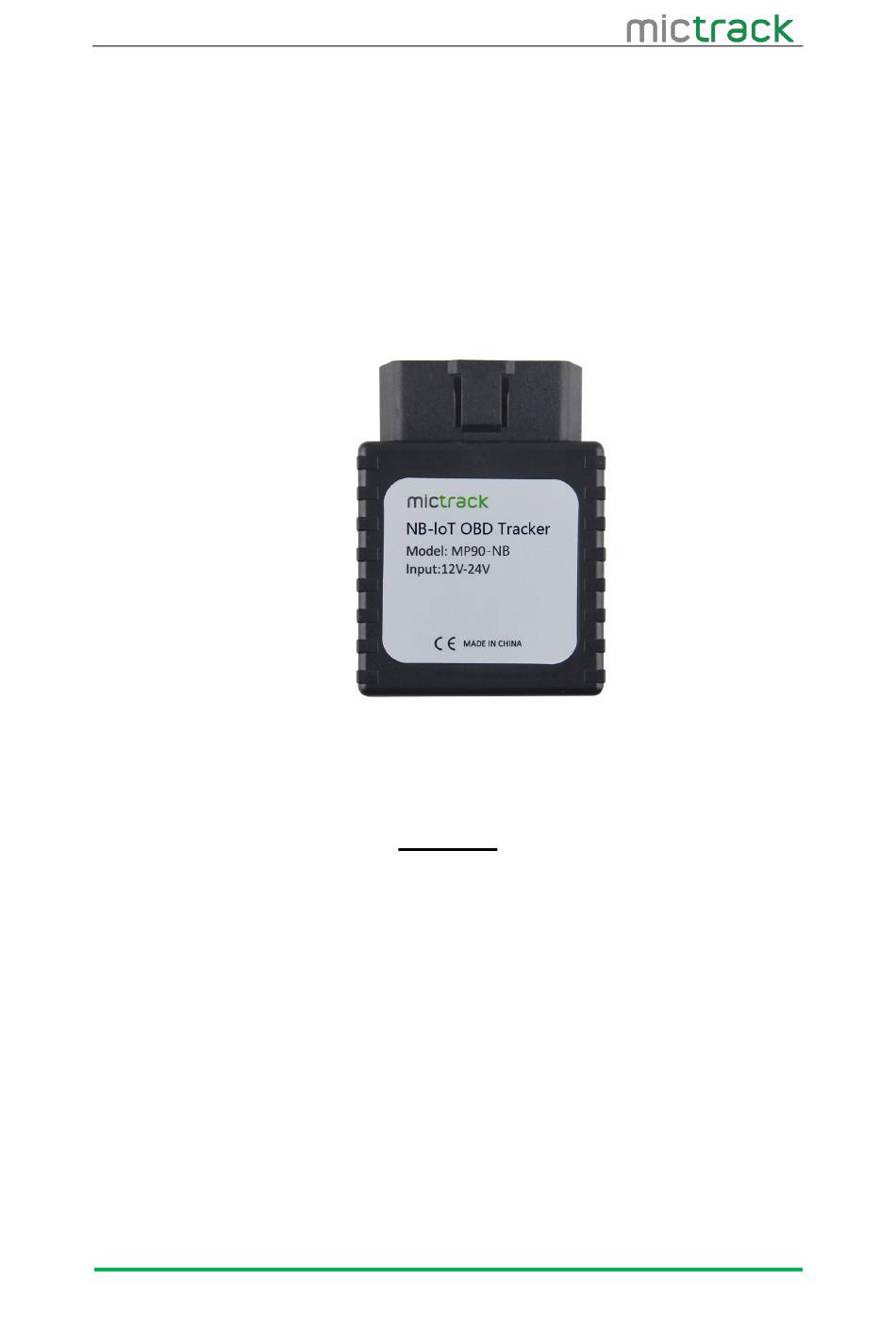

MP90-NB User Manual V1.0
Cat M1 & NB-IoT OBD Tracker
User Manual V1.0
Preface
Congratulations on choosing Mictrack MP90-NB 4G Cat M1 & NB-IoT OBD
tracker. This manual shows how to easily program and setup the tracker for the best
results. Make sure to read this manual carefully before using this product, so as to
avoid delays or confusion with its operation. Please note that specifications and
instructions are subject to change without notice to facilitate product improvement.
Updates and changes will be integrated into the latest release. The manufacturer
assumes no responsibility for any errors or omissions in outdated documents.
http://www.mictrack.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP90-NB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mictrack MP90-NB

  • Page 1 User Manual V1.0 Preface Congratulations on choosing Mictrack MP90-NB 4G Cat M1 & NB-IoT OBD tracker. This manual shows how to easily program and setup the tracker for the best results. Make sure to read this manual carefully before using this product, so as to avoid delays or confusion with its operation.
  • Page 2: Table Of Contents

    MP90-NB User Manual V1.0 Contents 1. Overview............................. 1 2. Application...........................1 3. Specifications..........................1 4. MP90-NB interface........................2 5. Installation........................... 2 5.1 SIM Card installation....................2 5.2 Install the Device......................3 5.3 LED Indications......................3 5.3.1 SYS-System indicator (RED)................ 3 5.3.2 GPS-GPS indicator (BLUE)................3 6.
  • Page 3: Overview

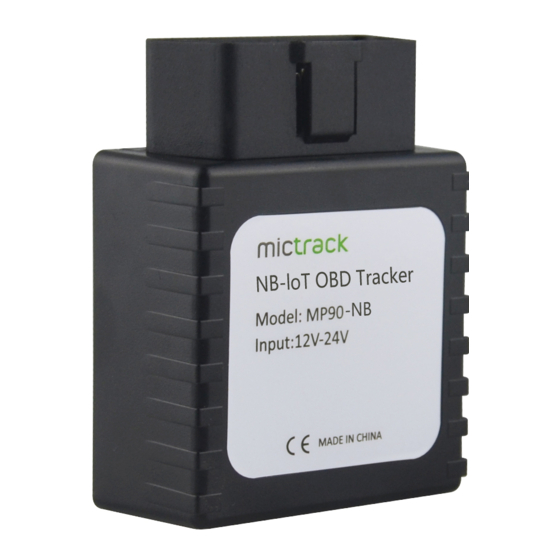

    MP90-NB User Manual V1.0 1. Overview The MP90-NB is a plug-and-play CAT M1 & NB-IoT OBD tracker without wiring. Easy install to any vehicle with a standard OBD II connector. It can be used locate, track and monitor the vehicle via SMS, PC Computer or Mobile APP.
  • Page 4: Mp90-Nb Interface

    MP90-NB User Manual V1.0 Specifications Item Positioning Accuracy 2.5m Cat M1 (LTE-M, eMTC) LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28 Cellular Frequency bands LTE TDD: B39 NB-IoT (CAT NB1): LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28 GSM: 850/900/1800/1900Mhz SIM Interface Micro SIM 4. MP90-NB interface 5. Installation 5.1 SIM Card installation...
  • Page 5: Install The Device

    MP90-NB User Manual V1.0 Attach back housing cover  Device is ready  (Diagram #1) (Diagram #2) 5.2 Install the Device Directly insert the ODB tracker to vehicle’s OBD2 interface 5.3 LED Indications 5.3.1 SYS-System indicator (RED) Status Description Always ON...
  • Page 6: Deleting Authorized Number

    Unit Reply: SET ROUND GEO-FENCE:ON 6.7 Un-plug alarm If the MP90-NB was remove from the OBD connector, it will call the authorized phone numbers, and then send location data to the authorized phone number and upload location data to the Web Tracking Platform server along with the status description “DEF”...
  • Page 7: Low Battery Alarm (Internal Backup Battery)

    MP90-NB User Manual V1.0 6.8 Low battery Alarm (internal backup battery) When the unit’s internal backup battery is low, it will SMS the authorized phone number, and upload location data to the Web Tracking Platform server along with the status description “BLP”...
  • Page 8: Power Saving Mode & Device Stationary

    MP90-NB User Manual V1.0 Example:1010000 Reply:SET POWER SAVE MODE:OFF. Note: Default is OFF 6.13.1 Power Saving Mode & Device Stationary SMS Command format: #807#password#interval time## For example: #807#0000#2## Note: Interval time define is [2,1440] minuets,If interval time is 0, it will stop upload and reply: SET GPS POWER SAVING UPLOAD OFF.
  • Page 9: App & Pc Tracking Platform

    MP90-NB User Manual V1.0 7. App & PC Tracking platform 7.1 Active the device ID number Contact with your sales or distributor  If not please subscribe the server plan from official online shop:  https://www.mictrack.com/shop/gps-tracking-platform-service 7.2 App install & Login tracker”...
  • Page 10: Troubleshooting

    MP90-NB User Manual V1.0 8. Troubleshooting Issues Caused Solutions 1>The device only reply with Cat M1 sim card and will not reply the Please check the SIM card NB-IoT SIM card status and try again. 2>SIM Card have not active 3>Card balance is not enough...
  • Page 11 MP90-NB User Manual V1.0 Any questions please do not hesitate to contact us: Shenzhen Mictrack Electronics Co.,Ltd. Add: B305-306, Kangsheng Electronic Industrial Park, Zhonghua Rd, Longhua District, Shenzhen, China 518131 Tel: +86-755-21014699 Web: www.mictrack.com Email: info@mictrack.com http://www.mictrack.com...
