MT500 User Manual

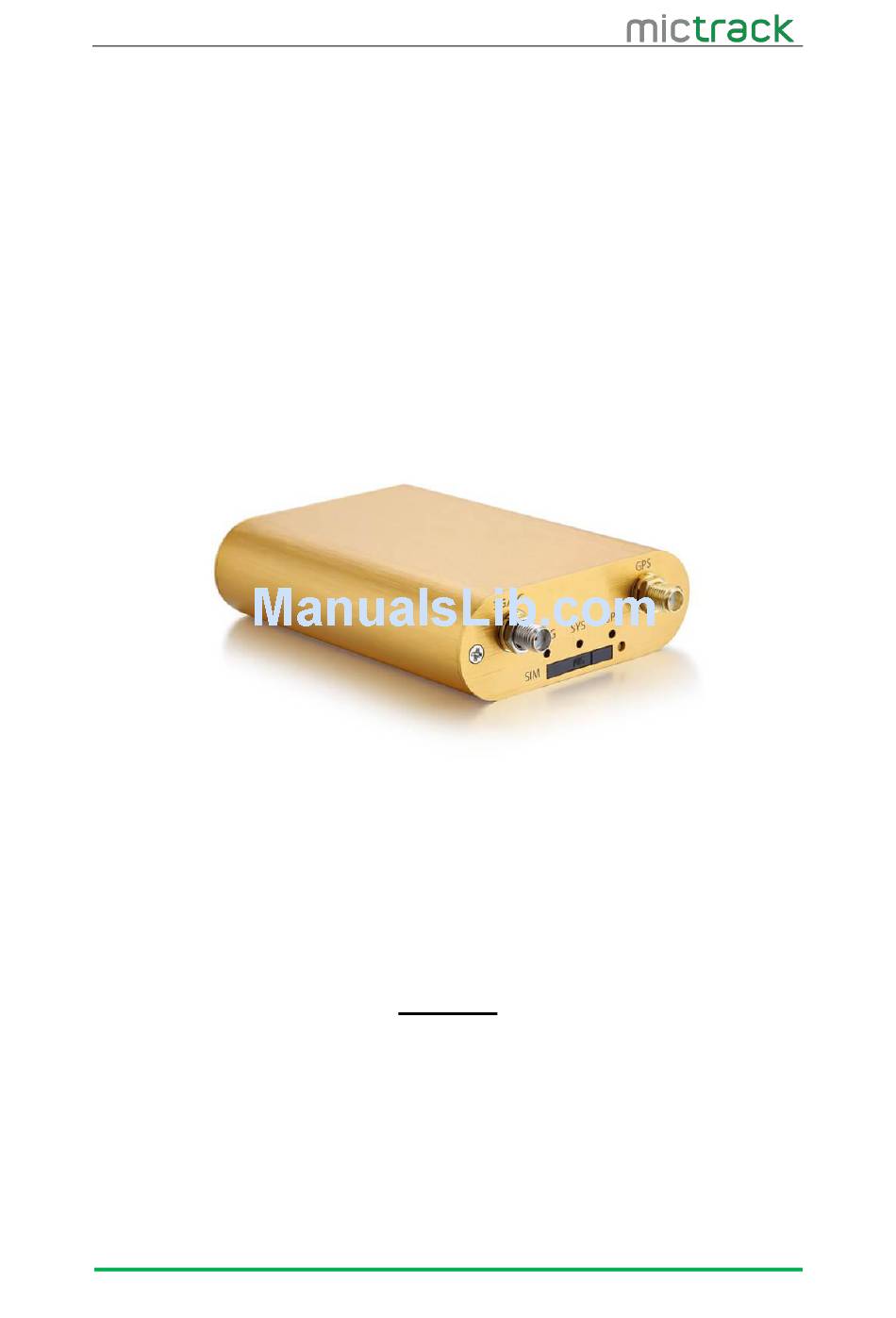

MT500 3G GPS Tracker
User Manual V3.0
Preface
Congratulations on choosing the Mictrack MT500 3G Vehicle GPS tracker. This
manual shows how to easily program and setup the tracker for best results. Make sure to
read this manual carefully before using this product, so as to avoid delays or confusion
with it's operation. Please note that specifications and instructions are subject to change
without notice to facilitate product improvement. Updates and changes will be integrated
into the latest release. The manufacturer assumes no responsibility for any errors or
omissions in outdated documents.
http://www.mictrack.com
Advertisement
Table of Contents
Related Manuals for Mictrack MT500
Summary of Contents for Mictrack MT500
- Page 1 User Manual V3.0 Preface Congratulations on choosing the Mictrack MT500 3G Vehicle GPS tracker. This manual shows how to easily program and setup the tracker for best results. Make sure to read this manual carefully before using this product, so as to avoid delays or confusion with it’s operation.
-
Page 2: Table Of Contents
MT500 User Manual Contents 1. Overview..........................1 2. Application..........................1 3. Specifications........................1 4. MT500 and Accessories....................3 5. Unit Diagram........................3 6. Installation..........................4 6.1 SIM Card installation....................4 6.2 LED Indications......................5 6.2.1 CHG-Charge indicator (RED)..............5 6.2.2 SYS-System indicator (BLUE)..............5 6.2.3 GPS-GPS indicator (GREEN).............. - Page 3 MT500 User Manual 7.19 Set GPRS device name..................11 7.20 Set APN (Access Point Name)............... 11 7.21 Set Tracking Server IP and PORT..............11 7.22 Set GPRS Upload Interval Time..............12 7.22.1 ACC ON (Upload default status is AUTO)..........12 7.22.2 Vehicle Towed Alarm (vehicle moves whilst ACC is turned OFF)..12 7.22.3 ACC OFF &...
-
Page 4: Overview
The user also can remotely cut off Fuel / Ignition and check the historical route travelled and other vehicle data. The MT500 has an excellent track record for stable performance and possesses a wide variety of features. 2. Application 3G WCDMA/UMTS network support ... - Page 5 MT500 User Manual Item Specifications MT500-E 900/2100MHz@UMTS 900/1800MHz@GSM MT500-A 850/1900MHz@UMTS 3G Frequency bands 850/900/1800/1900MHz@GSM MT500-T 850/2100MHz@UMTS 850/900/1800/1900MHz@GSM MT500-G 800/850/900/1900/2100MHz@UMTS 850/900/1800/1900MHz@GSM Power consumption 60mA standby current GPS Chip U-BLOX7 GPS Sensitivity -162dBm Channel 56 Channel Positioning Accuracy Hot start 1s on average...
-
Page 6: Mt500 And Accessories
MT500 User Manual 4. MT500 and Accessories 5. Unit Diagram http://www.mictrack.com... -
Page 7: Installation
MT500 User Manual 6. Installation 6.1 SIM Card installation Please read the following before installing the SIM card: Ensure the SIM card has minimum balance Ensure the SIM card has caller ID and HSPA functions enabled Ensure the SIM card PIN is disabled, and call forwarding not active ... -
Page 8: Led Indications
MT500 User Manual 6.2 LED Indications 6.2.1 CHG-Charge indicator (RED) Status Description Constant ON Currently Charging Charging Complete 6.2.2 SYS-System indicator (BLUE) Status Description Constant ON No SIM Card (or) No Network Reception Vehicle Parked – ACC Power OFF Quick flash Normal Working Mode 6.2.3 GPS-GPS indicator... -
Page 9: Install 3G & Gps Antenna
MT500 User Manual 6.4 Install 3G & GPS Antenna Connect the 3G Antenna firmly to "3G/4G" Socket (Note: the 3G antenna is non-directional and can be hidden anywhere inside the vehicle) Connect the GPS Antenna firmly to “GPS” socket (Note: it is recommended that ... -
Page 10: Install The Sos Switch
MT500 User Manual Black: Connect to Earth (Chassis) Car battery(-) Green: Connect to ACC switched 12V Power Yellow: Connect to wire of supplied SOS switch White: Connect to Relay terminal (85) Pink: Connect to Relay terminal (86) ... -
Page 11: Setup And Configuration
MT500 User Manual (internally or externally) depending on the vehicle, truck, boat or motorcycle, as long as there is access to power and a clear signal from satellites. 7. Setup and Configuration Note: When sending SMS command to the unit, do NOT use spaces or symbols not listed below. -
Page 12: Instant Location Request (Phone Call Activated)-(Only For Model E)
MT500 User Manual When sent, this command will result in a Unit Reply SMS as follows: ID:865662000409210 [Units IMEI #] Date:05:36:59 11/11/2016 Fix:A State:SMS http://maps.google.com/maps?q=+22.63146%2c1+114.03701 Note: This link can to be opened on any Smart Phone to reveal the Google Maps Location of the unit at the time of request. -
Page 13: Square Geo-Fence (Setting Of Dimensions And Shape Of Geo-Fence)
MT500 User Manual Unit Reply: SET ROUND GEO-FENCE: OFF. 7.10 Square Geo-fence (Setting of dimensions and shape of Geo-Fence) SMS Command format: 006+password+G1,IO/I/O,E/W longitude upper limit+N/S latitude upper limit,E/W longitude lower limit+N/S latitude lower limit. For example: 0060000G1,IO,E114.04540N22.59034,E114.05978N22.59797 Unit Reply: SET SQUARE GEO-FENCE1(IO)OK. -
Page 14: High Temperature Alarm
MT500 User Manual location data to the Web Tracking Platform server along with the status description “CLP” 7.16 High Temperature Alarm When the devices internal temperature is high [preset value] it will SMS the authorized phone number, and upload location data to the Web Tracking Platform server along with the status description “HD”... -
Page 15: Set Gprs Upload Interval Time
MT500 User Manual 7.22 Set GPRS Upload Interval Time This sets how often [in seconds] the unit sends location data back to the Tracking Platform whilst the ACC is switched on. This will affect accuracy and data usage. 7.22.1 ACC ON (Upload default status is AUTO) SMS Command format: #805#password#interval time#[command parameter]## Note: Command Parameter here [1=ON] &... -
Page 16: Unit Phone Calling Control (Useful For Sim Card Data Cost Saving)
This can be a common issue, especially when initially setting up a new unit, and the unit fails to reply to a correct SMS command sequence. If you have any questions please do not hesitate to contact us info@mictrack.com. http://www.mictrack.com...
