MT810 User Manual V1.0

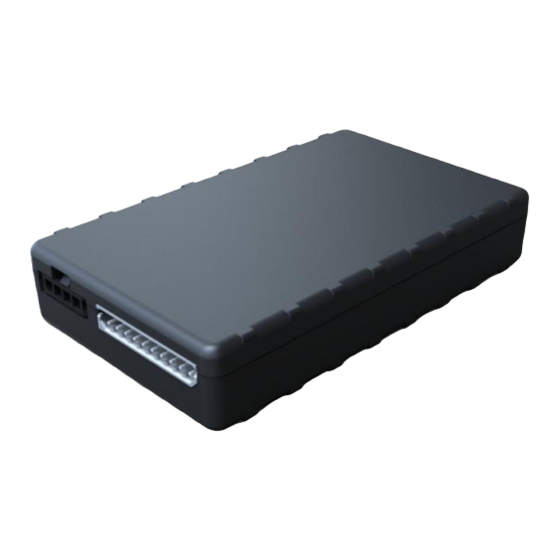

Cat M1 & NB-IoT Wired GPS Tracker
Congratulations on choosing the Mictrack MT810 CAT M1/NB-IoT GPS tracker. This
manual shows how to easily program and setup the tracker for best results. Make sure to read
this manual carefully before using this product, so as to avoid delays or confusion with it's
operation. Please note that specifications and instructions are subject to change without notice
to facilitate product improvement. Updates and changes will be integrated into the latest
release. The manufacturer assumes no responsibility for any errors or omissions in outdated
documents.
http://www.mictrack.com
User Manual V1.0
Preface

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT810 and is the answer not in the manual?

Questions and answers

Summary of Contents for Mictrack MT810

  • Page 1 User Manual V1.0 Preface Congratulations on choosing the Mictrack MT810 CAT M1/NB-IoT GPS tracker. This manual shows how to easily program and setup the tracker for best results. Make sure to read this manual carefully before using this product, so as to avoid delays or confusion with it’s operation.
  • Page 2: Table Of Contents

    MT810 User Manual V1.0 Contents 1. Overview............................. 1 2. Features............................1 3. Applications..........................1 4. Specifications..........................1 5. MT810 interface........................2 6. In the box...........................3 7. Installation........................... 3 7.1 SIM Card installation.....................3 7.2 LED Indications.......................4 7.2.1 Yellow indicator....................4 7.2.2 Green indicator....................4 8.
  • Page 3: Overview

    MT810 User Manual V1.0 1. Overview MT810 is a vehicle GPS tracker that use the latest CAT M1 & NB-IoT technology that can provide low power consumption and optimized data transmission with low cost. This device can be used locate, track and monitor any remote target via PC Computer or Mobile APP.
  • Page 4: Mt810 Interface

    MT810 User Manual V1.0 Specifications Item Input Voltage 12V-24V Backup battery 3.7 V 300mAh Cat M1 (LTE-M, eMTC) LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28 LTE TDD: B39 Cellular Bands NB-IoT (CAT NB1): LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28 GSM: 850/900/1800/1900Mhz Power consumption 20mA standby current Working temperature -20°C to 65°C...
  • Page 5: In The Box

    MT810 User Manual V1.0 Function Note PIN1(Black) Ground PIN2(Red) 12-24V Power PIN3(White) Input 1 High Trigger(ACC) PIN4(Green) Output 1 Relay Control Note: High Trigger level is +4V ~ +42V Connector 1 Description Function 1 Function 2 Function 3 Note PIN5...
  • Page 6: Led Indications

    MT810 User Manual V1.0 Connect to 12V Power and device will power on (yellow and green led will blinking).  After that the device will be ready.  7.2 LED Indications 7.2.1 Yellow indicator Description Status Device Power OFF or in sleep mode...
  • Page 7: Setup The Network

    MT810 User Manual V1.0 8.4 Setup the network 8.4.1 Setup to Cat M1 network only SMS Command format : netlock,password,2,3,0# Example: netlock,0000,2,3,0# Reply: netlock=Success! Note: In this mode device will only works under Cat M1 network. 8.4.2 Setup to NB-IoT network only...
  • Page 8: Vddon/Vddoff

    MT810 User Manual V1.0 Examples: outclr,0000,0# ----Set Output 1(PIN4) to 0. outclr,0000,1# ----Set Output 2(PIN6) to 0. 8.9 Vddon/Vddoff Vdd SMS Command format : Vddon,password# For example :vddon,0000# Reply: vddon=Success! Note: Set output (PIN9) to +5V Vddoff SMS Command format: Vddoff,password#...
  • Page 9: Reboot

    MT810 User Manual V1.0 Note: ID: 866425032496541 APN: cmmtm IP: Port:113.98.254.179:7700 Nomove:1 Interval: 10 Speedalarm: 0 Version: MT810_MICTRACK_B1.05V2.8_20191221 Network: GSM (Cat M1, NB-IoT) 8.14 Reboot SMS Command format : reboot,0000# The device will restart after send this command. Reply: reboot=Success! 8.15 Reset...
  • Page 10: Pc Login

    MT810 User Manual V1.0 9.2 PC login Web: www.trackits.com  No.” Choose “ID  Input your device’s ID number and password(default is 123456) to login  10. Troubleshooting Issues Caused Solutions 1>The device only reply with Cat M1 sim card and will not reply the...
  • Page 11 MT810 User Manual V1.0 Any questions please do not hesitate to contact us: Shenzhen Mictrack Electronics Co.,Ltd. Add: B305-306, Kangsheng Electronic Industrial Park, Zhonghua Rd, Longhua District, Shenzhen, China 518131 Tel: +86-755-21014699 Web: www.mictrack.com Email: info@mictrack.com http://www.mictrack.com...
