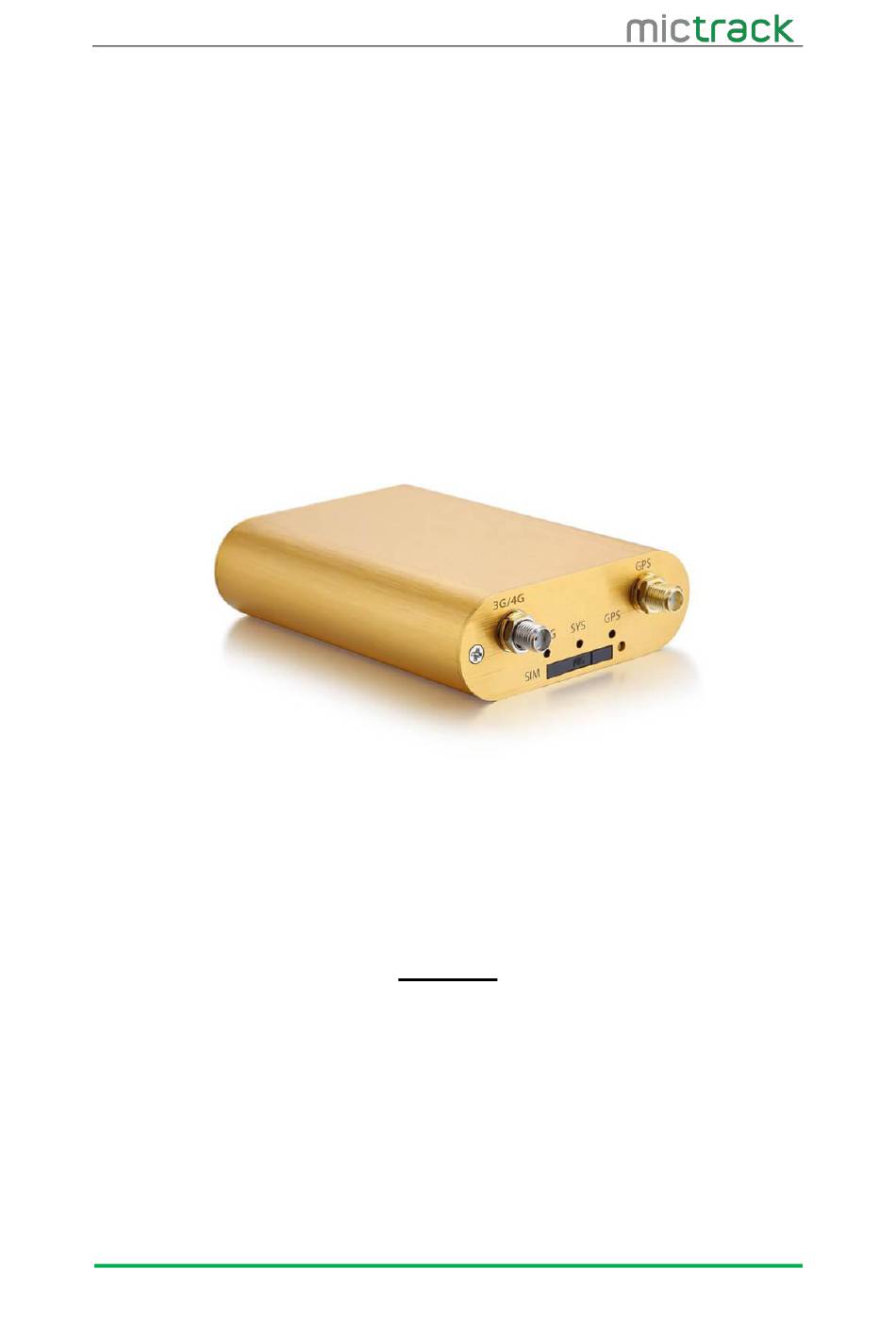

MT600 User Manual V3.0

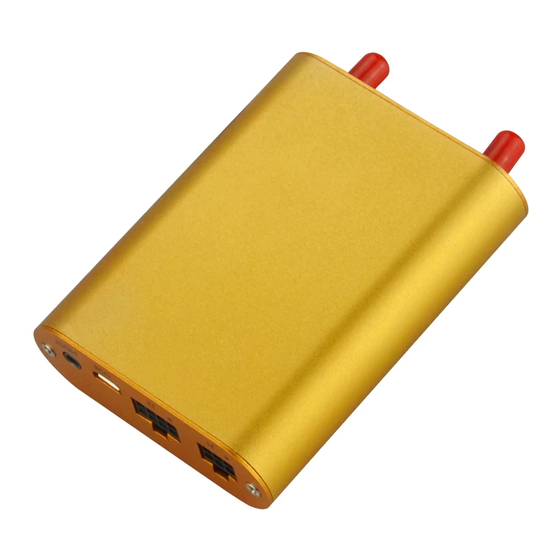

MT600 4G GPS Tracker
User Manual V3.0
Preface
Congratulations on choosing the MT600 4G Vehicle GPS tracker. This manual shows
how to easily program and setup the tracker for best results. Make sure to read this
manual carefully before using this product, so as to avoid delays or confusion with it's
operation. Please note that specifications and instructions are subject to change without
notice to facilitate product improvement. Updates and changes will be integrated into the
latest release. The manufacturer assumes no responsibility for any errors or omissions in
outdated documents.
http://www.mictrack.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mictrack MT600
Summary of Contents for Mictrack MT600
- Page 1 User Manual V3.0 Preface Congratulations on choosing the MT600 4G Vehicle GPS tracker. This manual shows how to easily program and setup the tracker for best results. Make sure to read this manual carefully before using this product, so as to avoid delays or confusion with it’s operation.
-
Page 2: Table Of Contents
MT600 User Manual V3.0 Contents 1. Overview............................. 1 2. Application...........................1 3. Specifications..........................1 4. MT600 and Accessories......................3 5. Unit Diagram..........................3 6. Installation........................... 4 6.1 SIM Card installation.....................4 6.2 LED Indications.......................4 6.2.1 CHG-Charge indicator (RED)................4 6.2.2 SYS-System indicator (BLUE).................5 6.2.3 GPS-GPS indicator (GREEN)................. 5 6.3 Device Button Instruction..................... - Page 3 MT600 User Manual V3.0 7.18.2 Vehicle Towed Alarm (vehicle moves whilst ACC is turned OFF)... 10 7.18.3 ACC OFF & Vehicle Stationary (Upload status is AUTOLOW)..10 7.19 SMS Response ON/OFF..................10 7.20 Unit Phone Calling Control (useful for SIM Card data cost saving)...10 7.21 Set GPRS mileage and trip distance reporting..........
-
Page 4: Overview
MT600 User Manual V3.0 1. Overview The MT600 is the latest technology 4G GPS tracker, fully supporting 4G LTE mobile networks. This device can be used locate, track and monitor any remote target via SMS, PC Computer or Mobile APP. It is commonly used to track and locate individual vehicles, motorbikes or boats, and is a valuable tool for enhanced fleet management. - Page 5 MT600 User Manual V3.0 Specifications Item 4G(blue), GPS(green), Power(red) LED Indicator Sensor 3D acceleration/movement sensor/ temperature sensor Antennas External 4G & GPS antennas GPS Sensitivity -162dBm Positioning Accuracy 2.5m MT600-E (For Europe/Asia/Australia) 4G LTE: B1/B3/B5/B7/B8/B20 3G WCDMA : 850/900/2100MHz 2G: 900/1800MHz...
-
Page 6: Mt600 And Accessories
MT600 User Manual V3.0 4. MT600 and Accessories Optional accessories: 5. Unit Diagram http://www.mictrack.com... -
Page 7: Installation
MT600 User Manual V3.0 6. Installation 6.1 SIM Card installation Insert the SIM card into the SIM card plastic tray. Ensure the SIM card has metal contacts facing up (Diagram #1). Gently slide the SIM Tray into the SIM Slot (Diagram #2). -
Page 8: Sys-System Indicator (Blue)
MT600 User Manual V3.0 6.2.2 SYS-System indicator (BLUE) Status Description Constant ON No SIM Card (or) No Network Reception Vehicle Parked – ACC Power OFF Quick flash Normal Working Mode 6.2.3 GPS-GPS indicator (GREEN) Status Description GPS / Satellites Unavailable – Out of Range Quick flash GPS/Satellite Locked –... -
Page 9: Connection Of Supplied Wiring Loom
MT600 User Manual V3.0 6.5 Connection of supplied wiring loom When installing the device, please connect supplied wiring loom as follows: (or contact us for help) Red: Connect to constant 12V Car Battery(+) Black: Connect to Earth (Chassis) Car battery(-) ... -
Page 10: Deleting Authorized Number
MT600 User Manual V3.0 Note: The defaulted password is 0000. It can authorize up to 3 phone numbers. 7.2 Deleting authorized number SMS Command format: password+number+[command parameter] Note: Command Parameter here is the sequence of the mobile number i.e. -
Page 11: Square Geo-Fence (Setting Of Dimensions And Shape Of Geo-Fence)
MT600 User Manual V3.0 Unit Reply: SET ROUND GEO-FENCE: OFF. 7.7 Square Geo-fence (Setting of dimensions and shape of Geo-Fence) SMS Command format: 006+password+G1,IO/I/O,E/W longitude upper limit+N/S latitude upper limit,E/W longitude lower limit+N/S latitude lower limit. For example: 0060000G1,IO,E114.04540N22.59034,E114.05978N22.59797 Unit Reply: SET SQUARE GEO-FENCE1(IO)OK. -
Page 12: High Temperature Alarm
MT600 User Manual V3.0 location data to the Web Tracking Platform server along with the status description “CLP” 7.13 High Temperature Alarm When the devices internal temperature is high [preset value] it will SMS the authorized phone number, and upload location data to the Web Tracking Platform server along with the status description “HT”... -
Page 13: Vehicle Towed Alarm (Vehicle Moves Whilst Acc Is Turned Off)
MT600 User Manual V3.0 Unit Reply: SET GPS PERIODIC UPLOAD ON. Note : interval time maximum [10,65535]seconds Unit Reply: SET GPS PERIODIC UPLOAD OFF. 7.18.2 Vehicle Towed Alarm (vehicle moves whilst ACC is turned OFF) SMS Command format: #809#password#interval time#[command parameter]## Note: Command Parameter here [1=ON] &... -
Page 14: Set Gprs Mileage And Trip Distance Reporting
MT600 User Manual V3.0 7.21 Set GPRS mileage and trip distance reporting This sets how often [in kilometres] the unit uploads data of “trip distance travelled” back to the Tracking Platform whilst the ACC is switched on. This will affect accuracy and data usage. -
Page 15: Pc Login
MT600 User Manual V3.0 8.3 PC login Web: www.trackits.com Choose “ID No.” Input your device’s ID number and password(default is 123456) http://www.mictrack.com... -
Page 16: Troubleshooting
This can be a common issue, especially when initially setting up a new unit, and the unit fails to reply to a correct SMS command sequence. If you have any questions please contact us info@mictrack.com. http://www.mictrack.com...
