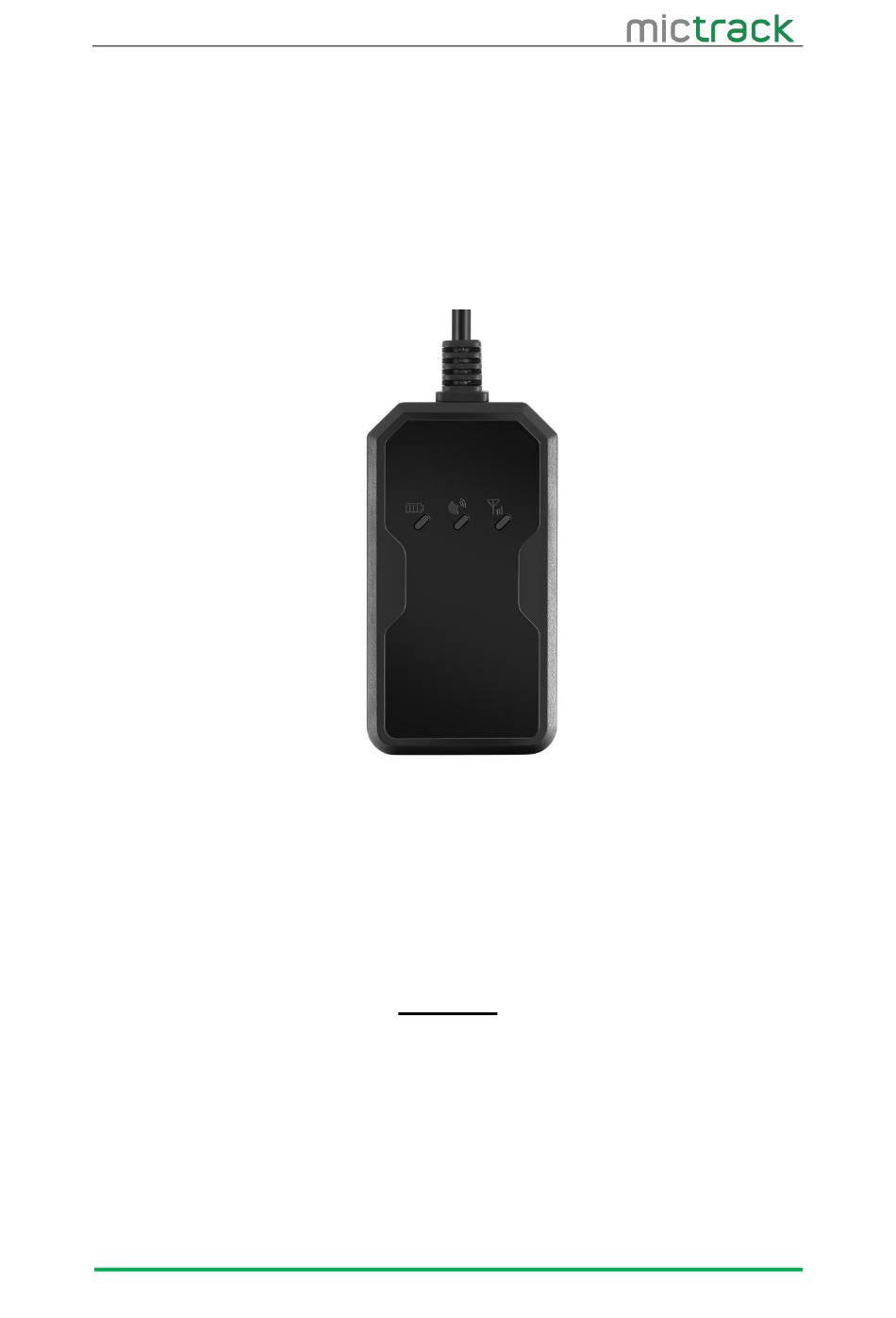

MT550 User Manual V2.0

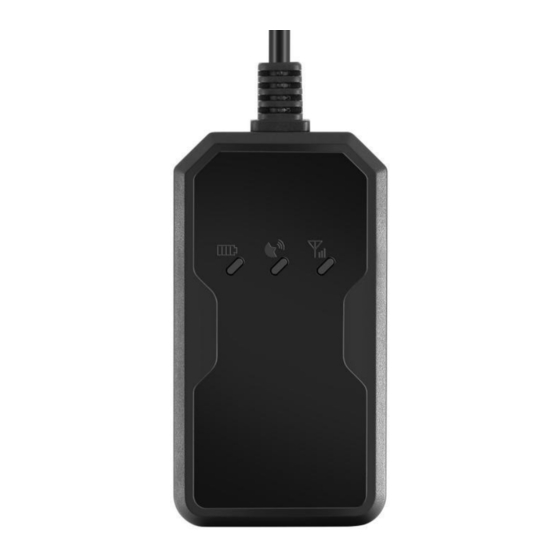

MT550 Cat M1/NB1 GPS Tracker
User Manual V2.0
Preface
Congratulations on choosing the Mictrack MT550 Cat M1/NB1 GPS tracker. This
manual shows how to easily program and setup the tracker for best results. Make sure to
read this manual carefully before using this product, so as to avoid delays or confusion
with it's operation. Please note that specifications and instructions are subject to change
without notice to facilitate product improvement. Updates and changes will be integrated
into the latest release. The manufacturer assumes no responsibility for any errors or
omissions in outdated documents.
http://www.mictrack.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT550 and is the answer not in the manual?

Questions and answers

Summary of Contents for Mictrack MT550

  • Page 1 User Manual V2.0 Preface Congratulations on choosing the Mictrack MT550 Cat M1/NB1 GPS tracker. This manual shows how to easily program and setup the tracker for best results. Make sure to read this manual carefully before using this product, so as to avoid delays or confusion with it’s operation.
  • Page 2: Table Of Contents

    MT550 User Manual V2.0 Contents 1. Overview............................. 1 2. Application............................1 3. Specifications............................. 1 4. MT550 and Accessories........................2 5. Unit Diagram............................3 6. Installation............................3 6.1 SIM Card installation......................3 6.2 Power ON:..........................4 6.3 LED Indications........................4 6.3.1 CHG-Charge indicator (RED).................. 4 6.3.2 SYS-System indicator (BLUE).................4 6.3.3 GPS-GPS indicator (GREEN).................
  • Page 3: Overview

    MT550 User Manual V2.0 1. Overview The MT550 is the world’s first LTE Cat M1/NB1 GPS tracker, supporting LTE Cat.M1/Cat.NB1/EGPRS networks. This device can be used locate, track and monitor any remote target via PC Computer or Mobile APP. It is commonly used to track and locate individual vehicles, motorbikes or boats, and is a valuable tool for enhanced fleet management.
  • Page 4: Mt550 And Accessories

    MT550 User Manual V2.0 Item Specifications FDD LTE: B1/ B2/ B3/ B4/ B5/ B8/ B12/ B13/ B18/ Frequency bands B19/B20/ B26/ B28 TDD LTE: B39 (for Cat.M1 only) GSM: 850/900/1800/1900Mhz Positioning Accuracy Channel 56 Channel Hot start 1s on average...
  • Page 5: Unit Diagram

    MT550 User Manual V2.0 5. Unit Diagram 6. Installation 6.1 SIM Card installation Please read the following before installing the SIM card: Ensure the SIM card has minimum balance  Ensure the SIM card has caller ID and HSPA functions enabled ...
  • Page 6: Power On

    MT550 User Manual V2.0 Ensure the SIM card PIN is disabled, and call forwarding not active  Power off the device before installing the SIM card  To install the SIM card, perform the following operations: Ensure the SIM card has metal contacts facing down.
  • Page 7: Gps-Gps Indicator (Green)

    MT550 User Manual V2.0 6.3.3 GPS-GPS indicator (GREEN) Status Description GPS / Satellites Unavailable – Out of Range Quick flash GPS/Satellite Locked – Normal Mode 6.4 Device Button Instruction Button Description Make button to ON to POWER ON  Power...
  • Page 8: Install The Sos Switch

    MT550 User Manual V2.0 Black: Connect to Earth (Chassis) Car battery(-)  Green: Connect to ACC switched 12V Power  Yellow: Connect to wire of supplied SOS switch  White: Connect to Relay terminal (85)  Brown: Connect to Relay terminal (86) ...
  • Page 9: Configuration & Functions

    MT550 User Manual V2.0 7. Configuration & Functions The LTE CAT M1/NB1 device DO not support SMS and voice function. It only can be Appendix config by USB Cable. All the USB configuration instruction please refer to 7.1 SOS Alarm...
  • Page 10: Appendix

    This can be a common issue, especially when initially setting up a new unit, and the unit fails to reply to a correct SMS command sequence. If you have any questions please do not hesitate to contact us info@mictrack.com. http://www.mictrack.com...
