MT825 User Manual V1.0
MT825 Cat M1 & NB-IoT GPS Tracker
User Manual V1.0
Preface
Congratulations on choosing the Mictrack MT825 CAT M1/NB-IoT GPS tracker. This
manual shows how to easily program and setup the tracker for best results. Make sure to read
this manual carefully before using this product, so as to avoid delays or confusion with it's
operation. Please note that specifications and instructions are subject to change without notice
to facilitate product improvement. Updates and changes will be integrated into the latest
release. The manufacturer assumes no responsibility for any errors or omissions in outdated
documents.
http://www.mictrack.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mictrack MT825
Summary of Contents for Mictrack MT825

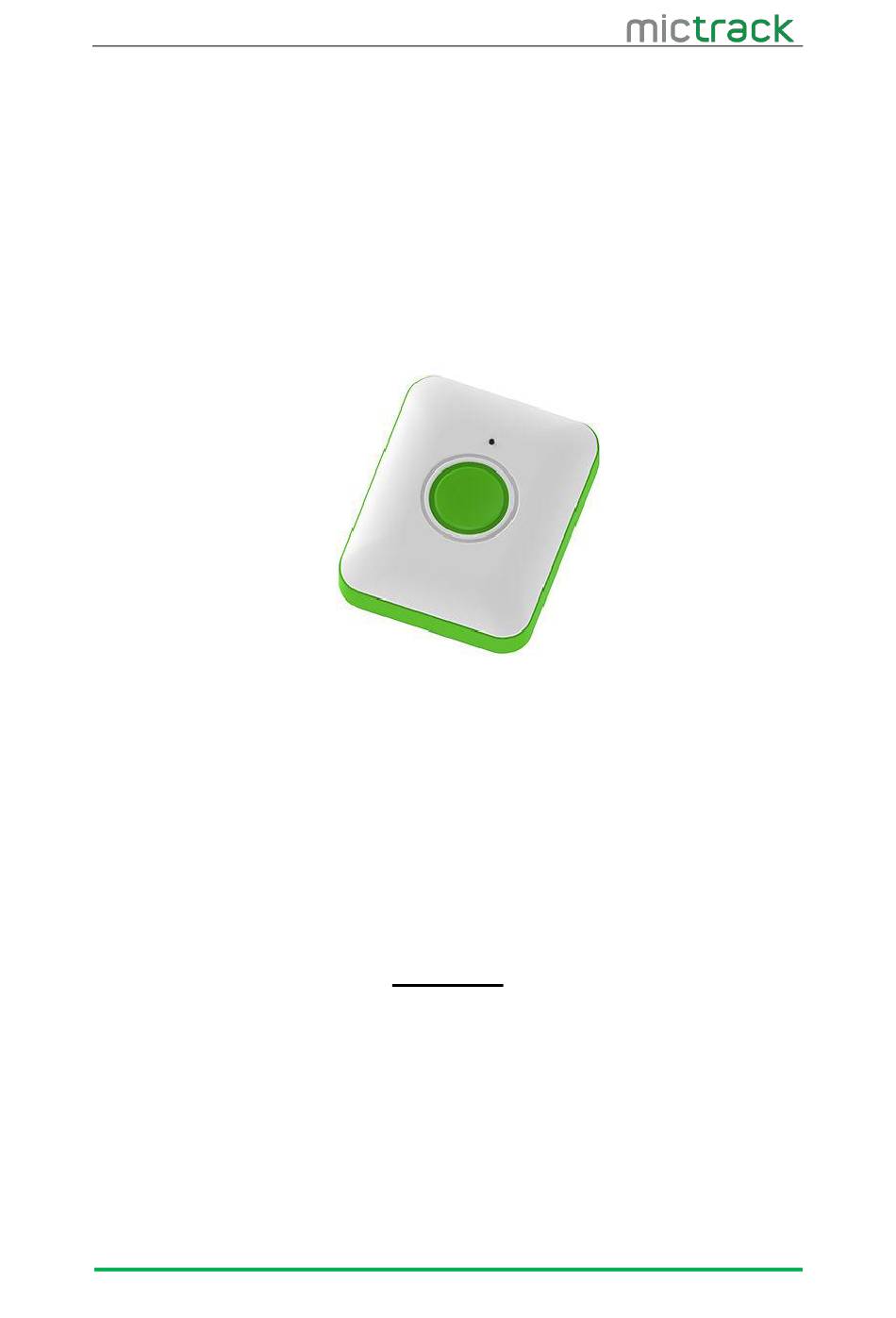

- Page 1 User Manual V1.0 Preface Congratulations on choosing the Mictrack MT825 CAT M1/NB-IoT GPS tracker. This manual shows how to easily program and setup the tracker for best results. Make sure to read this manual carefully before using this product, so as to avoid delays or confusion with it’s operation.
-
Page 2: Table Of Contents
MT825 User Manual V1.0 Contents 1. Overview............................. 1 2. Features............................1 3. Applications..........................1 4. Specifications..........................1 5. MT825 interface........................2 6. In the box...........................3 7. Installation........................... 3 7.1 SIM Card installation.....................3 7.2 LED Indications.......................3 7.2.1 Green indicator....................3 7.2.2 RED indicator...................... 3 8. -
Page 3: Overview
MT825 User Manual V1.0 1. Overview MT825 is a Mini waterproof GPS tracker that use the latest CAT M1 & NB-IoT technology that can provide low power consumption and optimized data transmission with low cost. The parents or pet owners can track the unit via their smart phone even if far away. With the hybrid positioning system GPS and WiFi allow get more precise location. -
Page 4: Mt825 Interface
MT825 User Manual V1.0 Specifications Item Working temperature -20°C to 65°C Cat M1 (LTE-M, eMTC) LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28 LTE TDD: B39 Cellular Bands NB-IoT (CAT NB1): LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28 GSM: 850/900/1800/1900Mhz Positioning GPS, WiFi, LBS Tracking Sensitivity -162 dBm Sensor... -
Page 5: In The Box
MT825 User Manual V1.0 6. In the box 1* MT825 GPS Tracker 1* Magnetic charging cable 1* Quick Start Guide 1* USB Config Cable 1* Pet collar (optional) 1* Lanyard (optional) 7. Installation 7.1 SIM Card installation... -
Page 6: Setup And Configuration
MT825 User Manual V1.0 8. Setup and Configuration If you use NB-IoT SIM card, ONLY can setup the device via USB Config cable(because NB-IoT SIM do not support SMS) If you use Cat M1 SIM card, you can setup the unit via following SMS commands ... -
Page 7: Power Saving Mode
After connected it will Immediately report a data (event 15) to the platform; If the device is still in a vibrating state, MT825 will report to server every 30 seconds/ If there is no vibration for more than 2 minutes, the device will automatically goes to sleep and report a data((event 16) to server. -
Page 8: Logprint
MT825 User Manual V1.0 8.6 Logprint SMS Command format: Logprint, 0,Z# For examples: Logprint, 0,1# Reply: logprint=success! Note: Z=[0,1]. To enable the print log, send command: Logprint,1#, To disable the print log, sent command: Logprint,0# 8.7 OTA SMS Command format: otastart,ip:port,user name,password,firmware name,1# For examples: otastart,173.230.147.117:21,ota,ota,MT825.bin,1#... -
Page 9: Pc Login
MT825 User Manual V1.0 Choose the” Login by Device No., Input server www.trackits.com Input your device’s ID number and password(default is 123456) to login. 9.2 PC login Web: www.trackits.com, Choose “ID No.” Input your device’s ID number and password(default is 123456) to login ... -
Page 10: Troubleshooting
MT825 User Manual V1.0 10. Troubleshooting Issues Caused Solutions 1>The device only reply with Cat M1 sim card and will not reply the Please check the SIM card NB-IoT SIM card status and try again. 2>SIM Card have not active 3>Card balance is not enough...
