MP80 User Manual
MP80 Mini GPS Tracker
User Manual V2.0
Preface
Thank you for choosing the tracker.This manual shows how to operate the device
smoothly and correctly.Make sure to read this manual carefully before using this product.
Please note that specification and information are subject to changes without prior notice
in this manual. Any change will be integrated in the latest release.The manufacturer
assumes no responsibility for any errors or omissions in this document.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP80 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mictrack MP80

Summary of Contents for Mictrack MP80

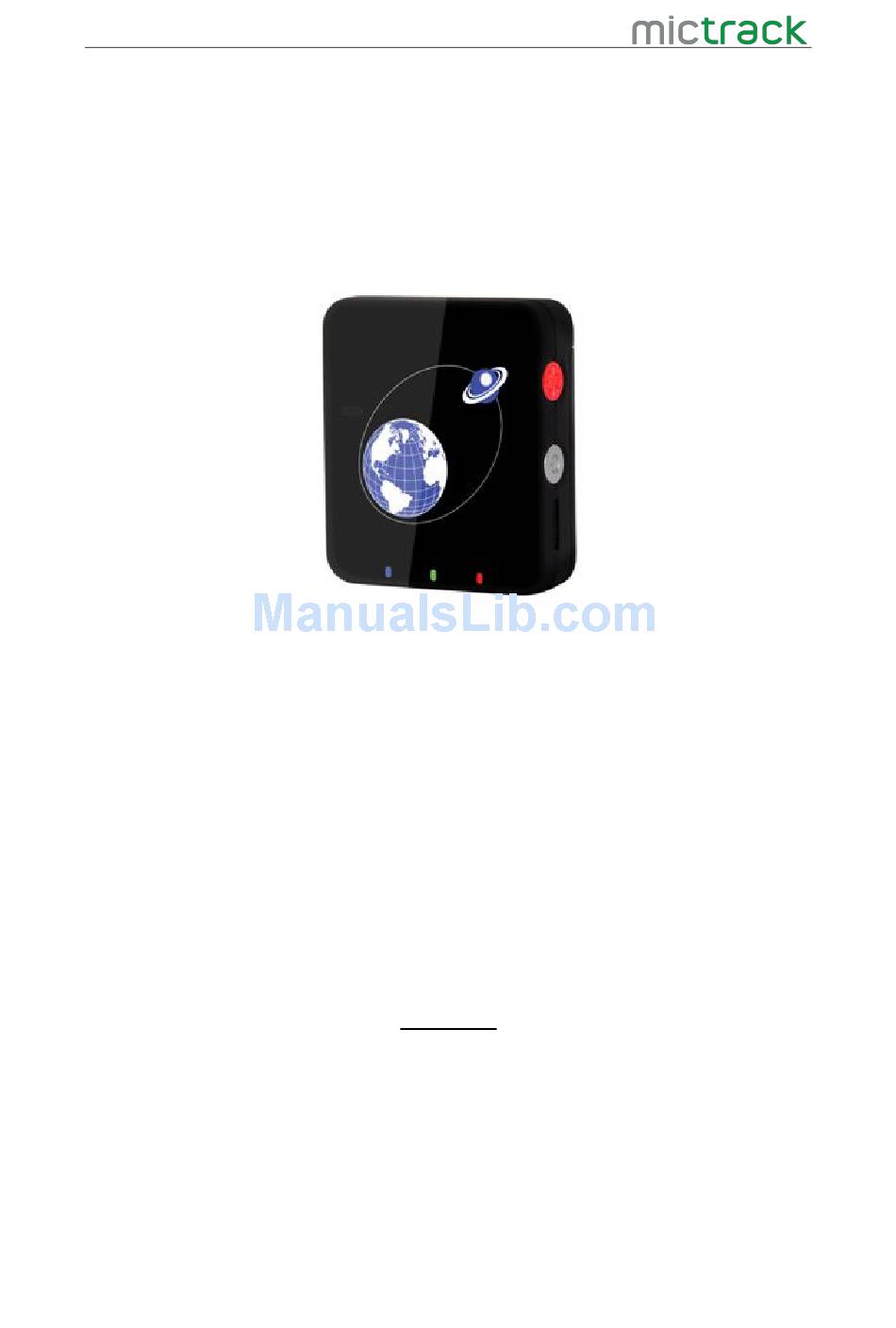

  • Page 1 MP80 User Manual MP80 Mini GPS Tracker User Manual V2.0 Preface Thank you for choosing the tracker.This manual shows how to operate the device smoothly and correctly.Make sure to read this manual carefully before using this product. Please note that specification and information are subject to changes without prior notice in this manual.

  • Page 2: Table Of Contents

    MP80 User Manual Contents 1. Overview..........................1 2. Application..........................1 3. Specifications........................1 4. Hardware Description......................2 4.1 Appearance....................... 2 4.2 LED Indications......................2 4.2.1 Green LED-GPS indicator................2 4.2.2 Blue LED-GSM indicator................2 4.2.3 Red LED-charge indicator................3 4.3 Device Button Instruction..................3 5. Main Operation and Application..................3 5.1 Set Authorization Phone Number...............

  • Page 3: Overview

    MP80 User Manual 1. Overview This device is the latest Mini Personal GPS Tracker.This device can locate and monitor any remote targets by SMS or Internet. It also has two-way voice communication and remote listen-in functions.The unit features excellent and stable work performance.It used for personal(kids/elderly)tracking and fleet management.

  • Page 4: Hardware Description

    MP80 User Manual Item Specifications Backup battery Chargeable 3.7V 700mAh Li-ion battery Charging Voltage Micro USB interface DC 5V GSM/GPS/Charge Weight Dimension 50(L)*43(W)*16(H)mm Standby 8 days 4. Hardware Description 4.1 Appearance 4.2 LED Indications 4.2.1 Green LED-GPS indicator Status Description...

  • Page 5: Red Led-Charge Indicator

    MP80 User Manual 4.2.3 Red LED-charge indicator Status Description Always ON Under charging Light bright Charging completed Flashing Low battery 4.3 Device Button Instruction Button Description Press and hold the button (about 3 seconds) until vibrate one  time to POWER ON.

  • Page 6: Position Mode

    MP80 User Manual For example:**0000*1** Reply:DELETE USER NUMBER 1 OK. 5.3 Position Mode When user want to get accurate positioning information and history trace,it is recommended the GPS mode.When user need general location information and longer standby time,LBS model is better.Users can select the mode via the following two...

  • Page 7: Call Restriction Switch

    MP80 User Manual SMS ON:161+ user password For example:1610000 Reply:SET SEND SMS:ON. Note:If the SMS is turned off during Geo-fences,low battery,SOS,only upload GPRS data and do not reply SMS to user. 5.8 Call Restriction Switch Call restriction OFF:170+password For example:1700000 Reply:SET INCOMING CALLS:OFF.

  • Page 8: Disable The Geo-Fence

    MP80 User Manual Reply:SET ALL SQUARE GEO FENCE: ON. 5.11.2 Disable the Geo-fence Instruction format:310+password For example:3100000 Reply:SET SQUARE GEO FENCE: OFF. 5.12 SOS Alarm When press SOS button for 3 seconds,it will send location to authorization phone number and also upload data to server, the state is “SOS” and also will call the authorization phone number.

  • Page 9: Power Saving Mode

    MP80 User Manual 5.19 Power Saving Mode Format:#807#user password#upload interval time# For example:#807#0000#10## Reply:SET GPS POWER SAVING UPLOAD ON. Note: 1. The interval time range is[10,1000],unit is minute.if the interval is 0 it will disable this mode and reply: SET GPS POWER SAVING UPLOAD OFF.

  • Page 10: Mileage Report

    MP80 User Manual Close command: #122#0000#0## Note:X is speed value, unit is KM/H definition is [0, 999]. 5.24 Mileage report 5.24.1 Set report interval time Format:#141#password#X## Reply:SET GPS MILEAGE STATISTICS:ON/OFF Note:X is the mileages and define is [0,1000] 5.24.2 Clear the Mileage Format:#142#password#T## Reply:SET MILEAGE CURRENT/ALL.
