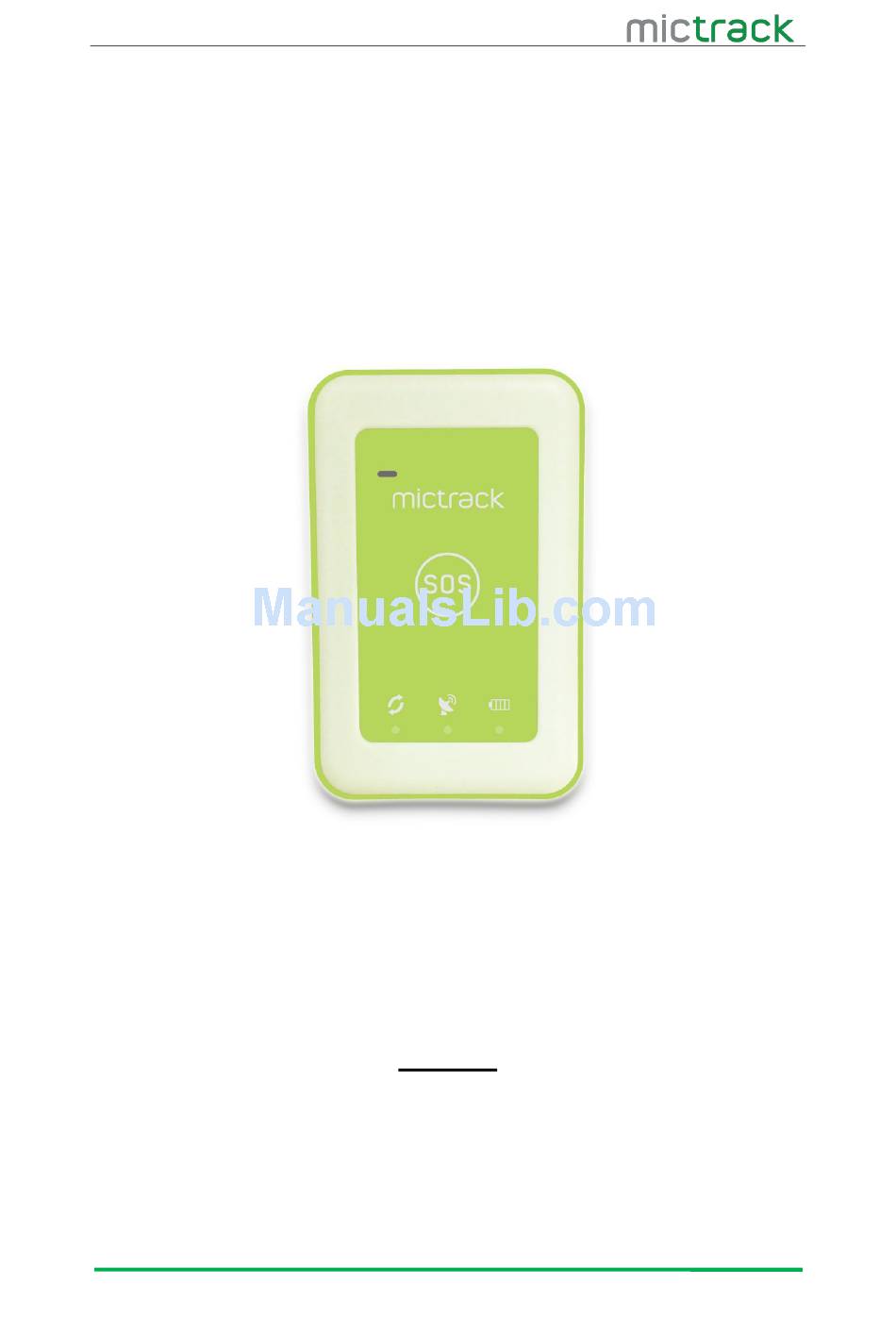

MT510 User Manual
MT510 3G Personal Tracker
User Manual V1.0
Preface
Thank you for choosing the 3G Personal GPS tracker.This manual shows how to
operate the device smoothly and correctly.Make sure to read this manual carefully before
using this product. Please note that specification and information are subject to changes
without prior notice in this manual. Any change will be integrated in the latest release.The
manufacturer assumes no responsibility for any errors or omissions in this document.
http://www.mictrack.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT510 3G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mictrack MT510 3G

  • Page 1 MT510 User Manual MT510 3G Personal Tracker User Manual V1.0 Preface Thank you for choosing the 3G Personal GPS tracker.This manual shows how to operate the device smoothly and correctly.Make sure to read this manual carefully before using this product. Please note that specification and information are subject to changes without prior notice in this manual.
  • Page 2: Table Of Contents

    6.19 Set GPRS Upload Interval Time ..............7 6.20 Power Saving Mode ..................7 6.20.1 Power Saving Mode ON & Device Stop interval time ......7 6.20.2 Power save mode ON&device Move interval time ......8 6.21 Invalid GPS Data Upload ................. 8 http://www.mictrack.com...
  • Page 3 MT510 User Manual 6.22 Mileage report ....................8 6.22.1 Set report interval time ................8 6.22.2 Clear the Mileage..................8 6.22.3 Check the current mileage ..............8 http://www.mictrack.com...
  • Page 4: Overview

     Mileage report 3. Specifications Item Specifications Dimension 89(L)*57(W)*20(H)mm Weight Charging Voltage Micro USB interface DC 5V Backup battery 1600mAh/3.7V Power consumption 60mA standby current MT510-A 850/1900MHz@UMTS 850/900/1800/1900MHz@GSM 3G Frequency bands MT510-T 850/2100MHz@UMTS 850/900/1800/1900MHz@GSM Note: other frequency is optional. http://www.mictrack.com...
  • Page 5: Hardware Description

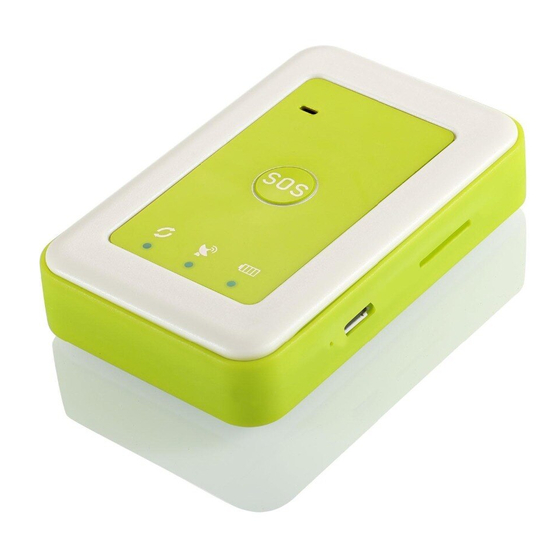

    15s on average Cold start 30s on average Working temperature -20° C to 55° C Humidity 5%~95% non-concretion Antenna Built-in 3G/GPS antenna Sensor 3D acceleration sensor 3G/GPS/CHG SIM Card interface Standard SIM Card Certification 4. Hardware description 4.1 Appearance http://www.mictrack.com...
  • Page 6: First Use

    5.2.3 Charge Indicator (RED) Status Description Always ON Under charging Light bright Changing completed Flashing Low battery 5.3 Device Button Instruction Button Description  Insert the SIM card to POWER ON, take out SIM card to Power Button POWER OFF. http://www.mictrack.com...
  • Page 7: Main Operation And Application

    Reply:SET USER PASSWORD OK. 6.4 Single Locating Instruction format:666+password For example:6660000 Description:Send this SMS command to unit,it will reply SMS as follow: ID:865662000409210 Date:05:36:59 15/08/2015 Fix:A State:SMS http://maps.google.com/maps?q=+22.63146%2c1+114.03701 6.5 Calling Switch Calling OFF:150+password For example:1500000 Reply:SET VOICE CALL:OFF Calling on:151+password For example:1510000 http://www.mictrack.com...
  • Page 8: Sms Response On/Off

    SOS. 6.10 Voice Monitor Disable the monitor : 000+password For example: 0000000 Reply: SET VOICE MONITOR:OFF. Enable the monitor :001+password For example:0010000 Reply:SET VOICE MONITOR:ON. Note: Default is MONITOR OFF 6.11 Round Geo-fence Instruction format:005+password+R+X For example:0050000R1.0 http://www.mictrack.com...
  • Page 9: Enable The Geo-Fence

    Close command: #122#0000#0## SET SPEED LIMIT:OFF. Note : X is speed value, unit is KM/H definition is [0, 999]. 6.15 Set time zone Instruction format:896+password+ +/-HH:MM For example:8960000+08:00 Reply: SET TIME ZONE:+08:00 Note : The default is Greenwich time(UTC). http://www.mictrack.com...
  • Page 10: Set Gprs User Name

    Note : please contact your local mobile operator to get the correct APN. 6.18 Set Server IP and PORT Instruction format:#804#password#IP address(or domain) #port## Example: #804#0000#192.168.1.1#8080## or #804#0000#www.mictrack.com#80## Reply:SET SERVER IP AND PORT OK. 6.19 Set GPRS Upload Interval Time...
  • Page 11: Power Save Mode On&Device Move Interval Time

    Note :T is [0,1].T=0,clear current mileage;T=1,clear total mileage. 6.22.3 Check the current mileage Format:#143#password## For example:#143#0000## Reply: TOTAL GPS MILEAGE:X.X Km CURRENT GPS MILEAGE:X.X Km Note : mileage unit is KM If you have any questions please do not hesitate to contact us info@mictrack.com. http://www.mictrack.com...
