Models - Digital Networks DECserver 708 Installation Manual

Models

The DECserver 708 supports EIA-232-D/V.24/V.28 full modem control on eight 9-pin
male D-connectors. Use this model to connect devices that require full duplex,
asynchronous control (for example: modems).

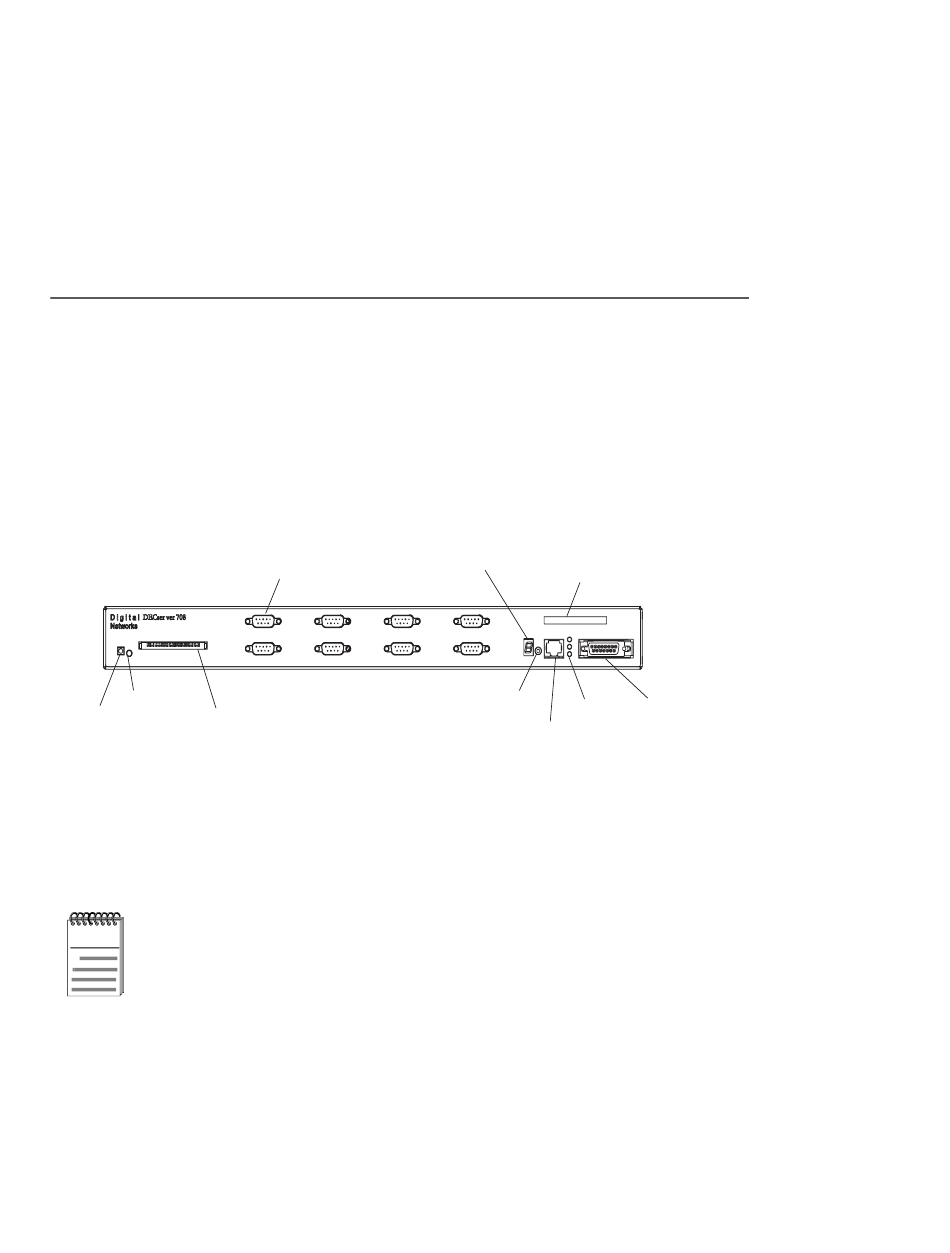

Figure 1–1 shows a front view of the DECserver 708.
Figure 1-1: DECserver 708 Front View
System OK LED
System reset switch Flash Card Slot
Adapters H8585-AB and H8585-AC are not for connection to public networks in
NOTE
Sweden, Germany, or Japan.
9 pin D-sub
Serial Port
Seven Segment
Mac Address
display
Ethernet
Network
select
activity LED
switch Ethernet
10BaseT
connector
Product Introduction 1-3
Models
Standard
Ethernet
connector
