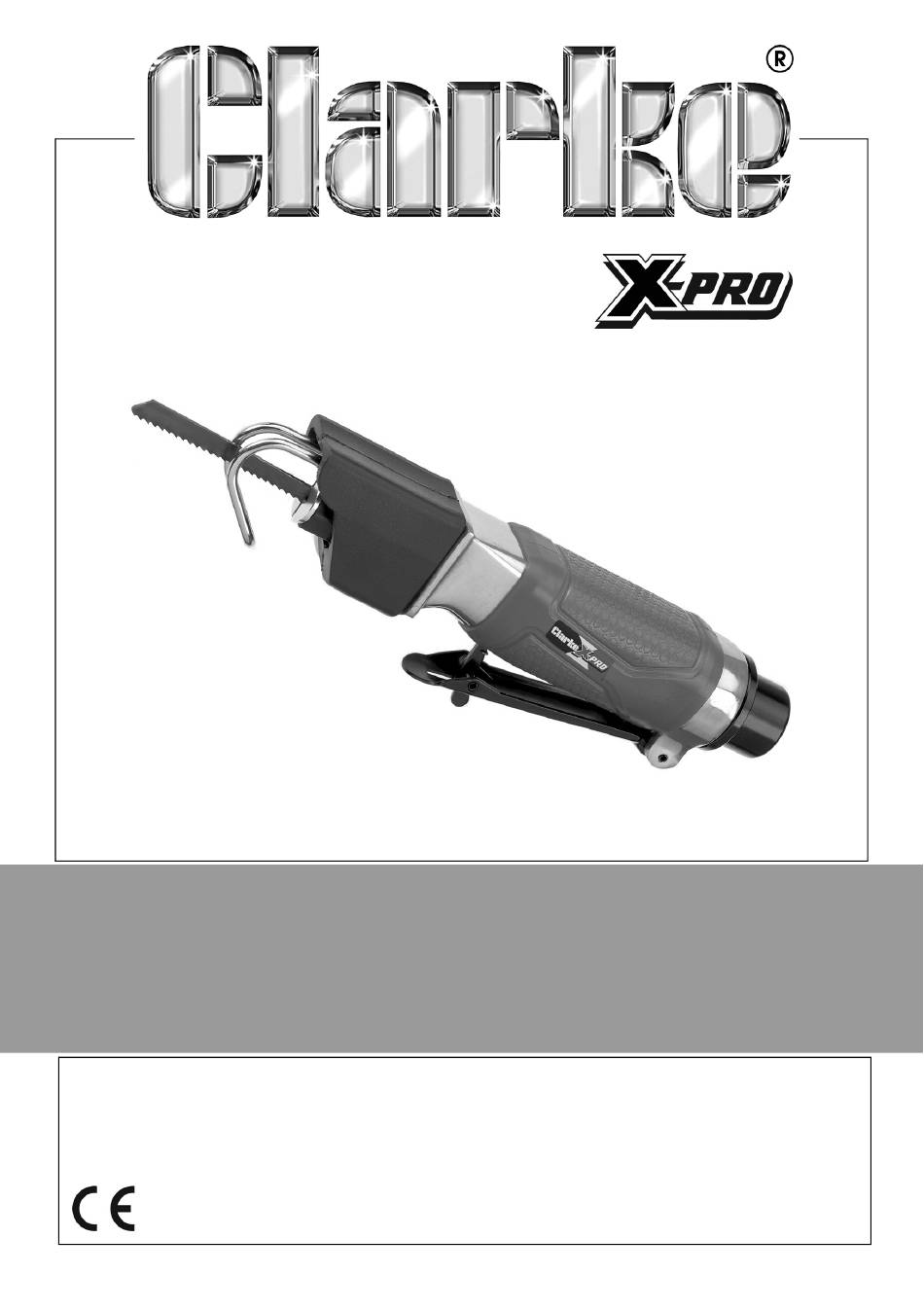

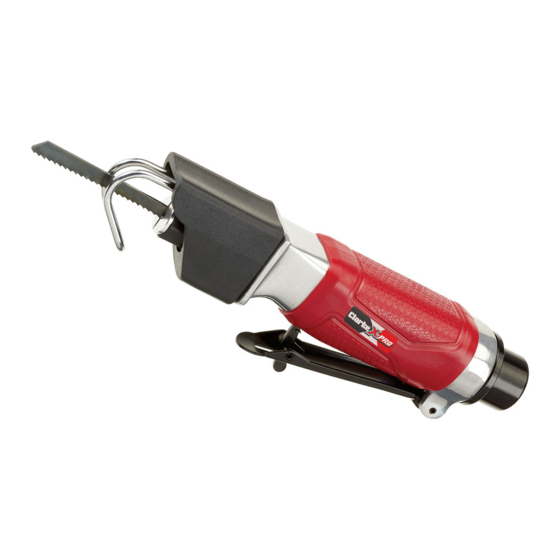

- Page 1 SABRE SAW MODEL NO: CAT167 PART NO: 3120181 OPERATING & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0417...
-
Page 2: Safety Symbols
INTRODUCTION Thank you for purchasing this CLARKE Sabre Saw, suitable for cutting metal, wood, polymers and other materials. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: General Safety Rules
GENERAL SAFETY RULES CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY. WORK ENVIRONMENT 1. Keep the work area clean and tidy. 2. Dress appropriately: - do not wear loose clothing or jewellery. Tie long hair out of the way. - Page 4 • Moving to another work area. • Passing the saw to another person. 10. Never use the saw if it is defective or operating abnormally. 11. Always ensure the saw has stopped before putting it down. 12. The saw should be repaired if required by qualified service personnel. 13.
-
Page 5: Product Description
PRODUCT DESCRIPTION NO DESCRIPTION NO DESCRIPTION Air Inlet Allen Key Adjusting Setscrew Safety Trigger Work Guide 3 x Saw Blades (18,24,32 tpi) Blade Holder The CAT167 sabre saw is a compact and ergonomic tool with rubber protective grip. It features adjustable work guide to set cut depths. The blade holder design makes the saw blade installation and replacement fast and easy. -
Page 6: Compressed Air Requirements
COMPRESSED AIR REQUIREMENTS WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF COMPRESSORS AND A COMPRESSED AIR SUPPLY. • Use only clean, dry, regulated compressed air as a power source. •... -
Page 7: Before Use
• Never exceed the maximum operating pressure for the air tool. It is recommended that air pressure to this tool does not exceed 90 psi (6.2 bar) at the tool when running. Higher pressures and unclean air will shorten the life of the tool due to faster wear and is a possible safety hazard. - Page 8 • Your sabre saw is now ready for use • You can fit a whip hose with a quick fit coupling if required (available from your Clarke dealer.) USEFUL AIRLINE ITEMS FROM THE CLARKE RANGE CAT150 Mini-Oiler:- Part No 3120164 8mm Rubber Whip Hose:-Part No 3120104 CAT58 6mm Recoil Hose with 1/4”bsp connectors (25 feet):-Part No 3110458...
-
Page 9: Operation
OPERATION OPERATING THE SAW 1. Adjust the work guide as required as shown on page 7. 2. Slide the safety lock forward and squeeze the trigger. Allow the saw to reach full speed before use. 3. Release the trigger to stop the saw. - Page 10 STORAGE If the saw is to be stored or is idle for longer than 24 hours, run a few drops of Clarke air-line oil into the air inlet and depress the trigger in order to lubricate the internal parts. When not in use, the saw should be disconnected from the air supply and stored in a dry place out of the reach of children.
-
Page 11: Troubleshooting
2. Motor parts worn. 2. Return to Clarke dealer for repair. 3. Worn or sticking 3. Drip air tool lubricating mechanism due to oil into air inlet. Allow oil lack of lubricant. -
Page 12: Parts Diagram
PARTS DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 13: Component Parts
COMPONENT PARTS Description No Description Cylinder Head Assembly Handle Body Front Dowel Pin Throttle Arbor Bumper Sliding Liner Piston Countersunk Screw Gasket Blade Holder Cylinder Set Screw Muffler Set Screw Rear Dowel Pin Protective Cover Automatic valve Work Guide Valve Body Front gasket Valve Seat 3mm Hex Wrench... -
Page 14: Specification
18/24/32 tpi Please note that the details and specifications contained herein are correct at the time of going to print. However CLARKE International reserve the right to change specifications at any time without prior notice. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 15: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
