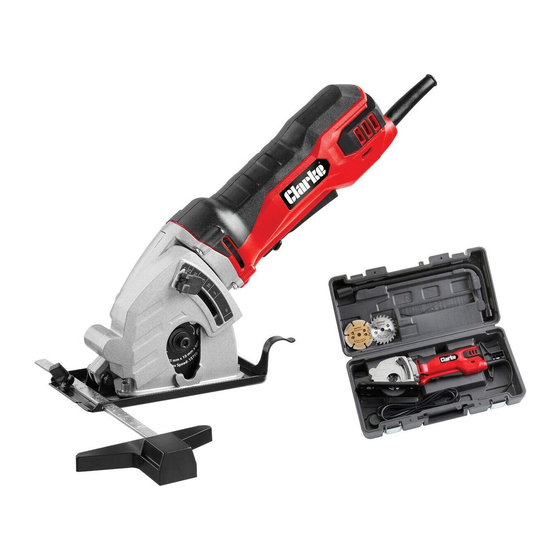

- Page 1 PLUNGE SAW MODEL NO: CPS85 PART NO: 6460230 OPERATION & MAINTENANCE INSTRUCTIONS LS0419 - ISS 1 ORIGINAL INSTRUCTIONS...
- Page 2 CONTENTS The following items should be supplied in the pack. If any parts are missing or damaged, please contact the Clarke dealer where you purchased the tool. • 1 x 550W Plunge Saw • 1 x TCT saw blade 85 x 10 mm, 24T (wood cutting) •...
-
Page 3: Environmental Recycling Policy
In effect, this means that this product must not be disposed of with general household waste. It must be disposed of according to the laws governing Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal facility. SPECIFICATIONS Model Number CPS85 Rated Voltage 230V~50Hz Maximum Depth of Cut 27 mm Blade Dimensions... -
Page 4: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS Read all instructions carefully before you use this product. Pay attention to all sections of this user guide that display warning symbols and notices. WARNING: THIS SYMBOL IS USED THROUGHOUT THE USER GUIDE WHEN THERE IS A RISK OF PERSONAL INJURY. MAKE SURE THAT THESE WARNINGS ARE READ AND UNDERSTOOD AT ALL TIMES. - Page 5 2. Use safety equipment. Always wear eye protection. Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. 3. Avoid accidental starting. Make sure that the switch is in the off position before plugging in.
-
Page 6: Saw Safety Warnings
SAW SAFETY WARNINGS CUTTING PROCEDURES a. Keep hands away from cutting area and the blade. If both hands are holding the saw, they cannot be cut by the blade. b. Do not reach underneath the workpiece. The guard cannot protect you from the blade below the workpiece. -
Page 7: Blade Safety Warnings
comes to a complete stop. Never attempt to remove the saw from the work or pull the saw backward while the blade is in motion or kickback may occur. Investigate and take corrective actions to eliminate the cause of the blade binding. -
Page 8: Safety Instructions For Plunge Type Saws
SAFETY INSTRUCTIONS FOR PLUNGE TYPE SAWS GUARD FUNCTION a. Check the guard for proper closing before each use. Do not operate the saw if the guard does not move freely and enclose the blade instantly. Never clamp or tie the guard so that the blade is exposed. If the saw is accidentally dropped, the guard may be bent. -
Page 9: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS FULLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. This product is provided with a standard 13 amp, 230 volt (50Hz), BS 1363 plug, for connection to a standard, domestic electrical supply. Should the plug need changing, make sure that a plug of identical specification is used. -
Page 10: Setting The Cutting Depth
2. Connect the other end of the dust pipe to your dust extractor. • Switch on the dust extractor while cutting. NOTE: See your local Clarke dealer for our latest range of dust extractors. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 11: Changing The Saw Blade
CHANGING THE SAW BLADE WARNING: ALWAYS DISCONNECT THE SAW FROM THE POWER SUPPLY BEFORE MAKING ADJUSTMENTS. 1. Press and hold the spindle lock button. 2. Loosen the clamping screw using a hex key. 3. Remove the clamping screw, washer and flange. 4. -
Page 12: Operation
OPERATION SWITCHING ON/OFF The On/Off switch is equipped with a Plunge Release Button which is designed to prevent accidents. TO SWITCH ON: Push the Plunge Release Button forward and then press the On/Off switch. TO SWITCH OFF: Release the On/Off switch. CUTTING WITH SAW WARNING: ALWAYS CUT IN A FORWARD DIRECTION. -
Page 13: Setting The Guide Fence
SETTING THE GUIDE FENCE 1. Release the wing nut on the base plate 2. Insert the guide fence into the slot. 3. Retighten the wing nut. CUTTING SHEET METAL/CERAMICS We recommend you learn to use the tool by cutting wood before attempting to cut anything tougher. -
Page 14: Cleaning And Maintenance
CLEANING AND MAINTENANCE WARNING: DISCONNECT THE PLUNGE SAW FROM THE MAINS SUPPLY BEFORE CLEANING. WARNING: WEAR PROTECTIVE GLOVES WHEN HANDLING THE SAW BLADE. CLEANING • Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure. -
Page 15: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
