Magnetic Strip Reader (MSR)

The built-in magnetic stripe reader (MSR) has a three-track bi-
directional encryption-capable magnetic read head. A single swipe reads
information from all three tracks.
MSR functions as an unencrypted MSR until an encryption key is injected
into the read head by a designated Infinite Peripherals key injection
facility. Contact your Infinite Peripherals account representative for
information.
1. To activate the MSR functionality, press either Scan button.

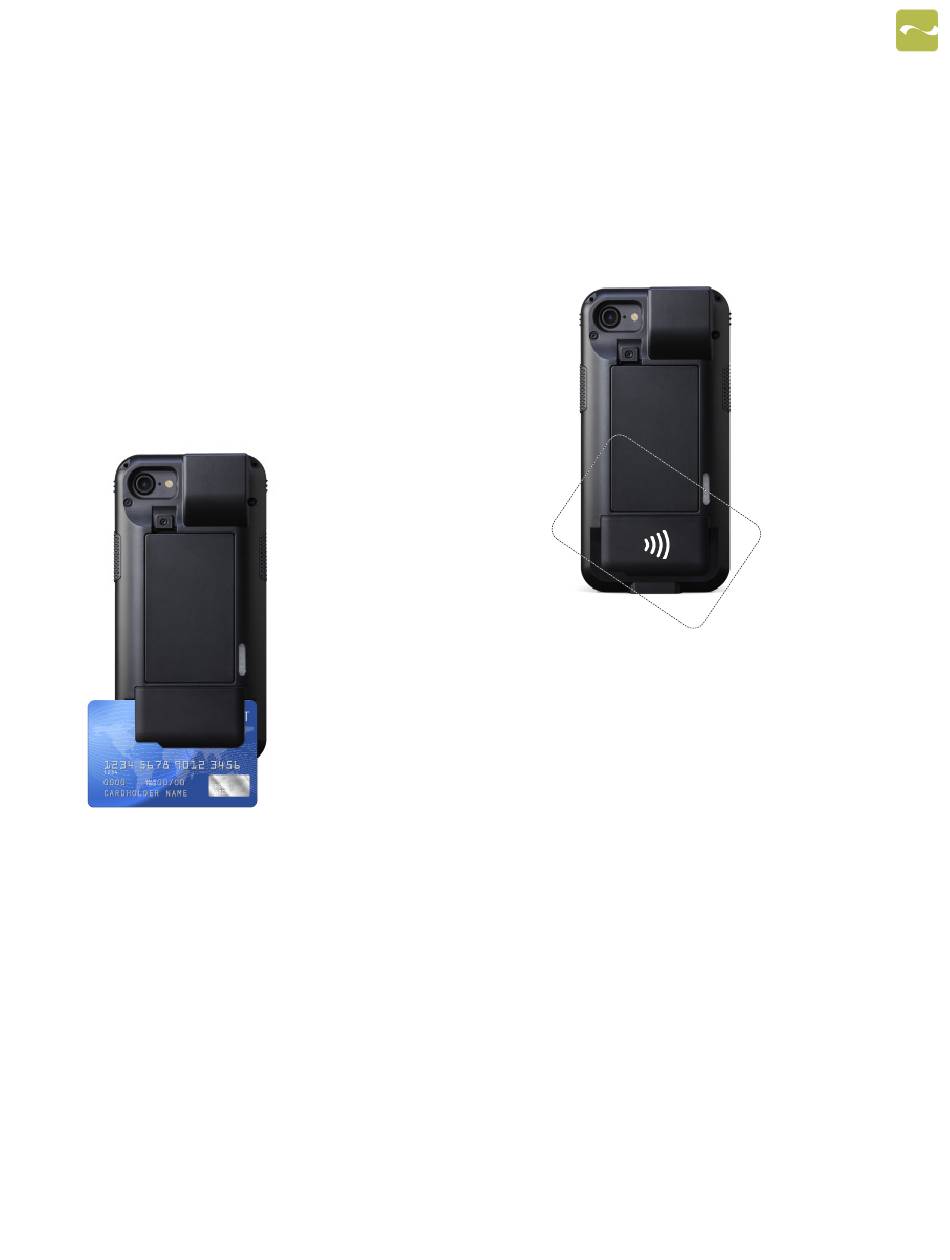

2. With the magnetic strip face up, swipe the card through one
end of the card slot to the other end.
Note
:
Keep the edges of the card flat on the inner edge of the reader. This ensures the
magnetic stripe passes over the read head evenly.

Contactless Card Reader (RFID)

The optional RFID tag/card reader incorporates several RFID formats
depending on the model of your Linea Pro 7.
1. To activate the unit, press either Scan button.
2. Place the RFID tag/card over the receiver/transmitter as
indicated by the RFID label. The data is sent from the unit to to
the iOS device.
Note:
Keep the face of the card/tag flat, with the receiver/transmitter as close as
possible. Depending on the tpe of tag/card, it may be necessary to make direct
contact with the surface of the RFID receiver for proper reading and writing.
