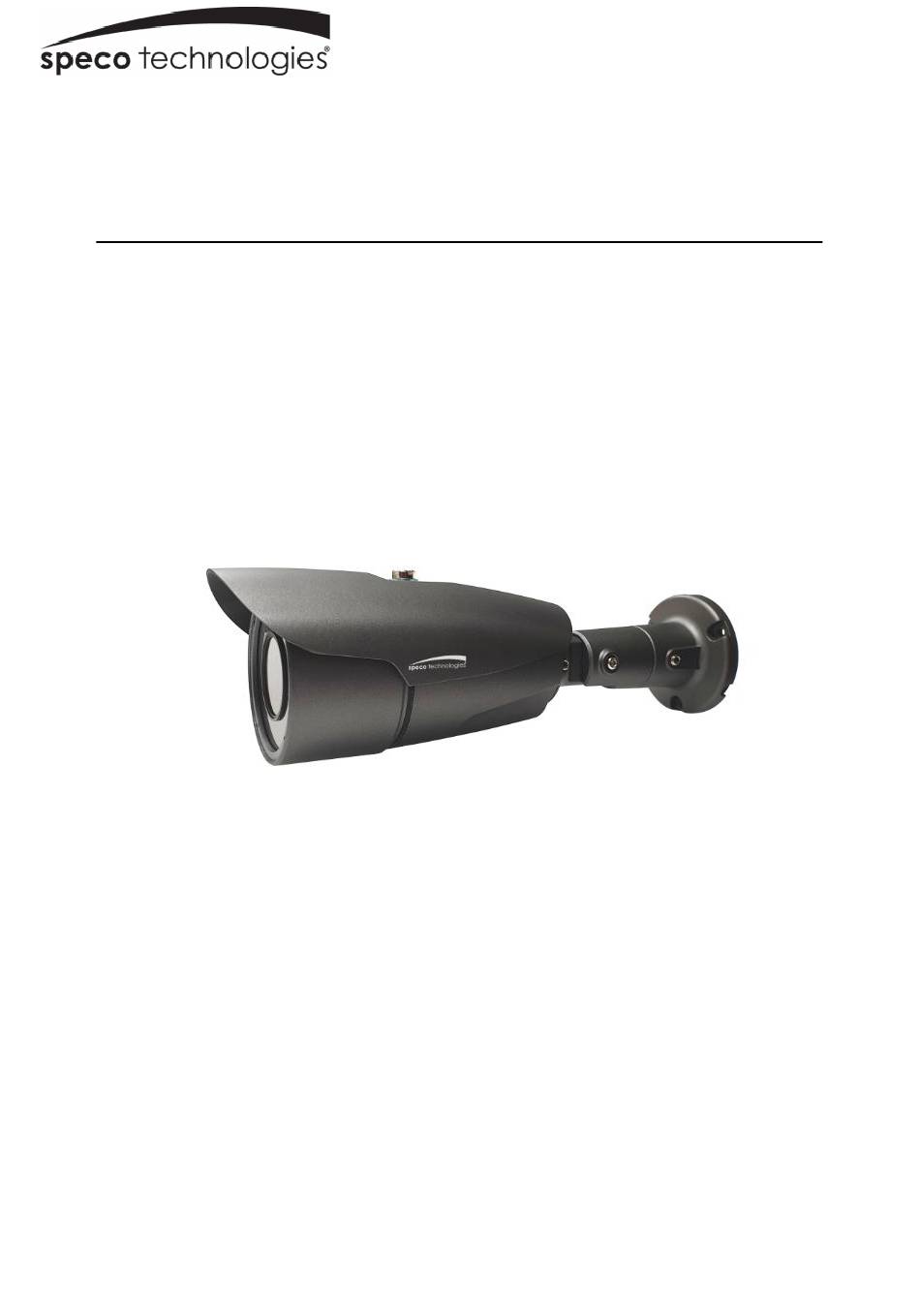

IP Bullet IR Camera
QUICK INSTALLATION GUIDE
O2B6M
Please read this manual carefully before installation and operation of the product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the O2B6M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Speco O2B6M

  • Page 1 IP Bullet IR Camera QUICK INSTALLATION GUIDE O2B6M Please read this manual carefully before installation and operation of the product.
  • Page 2 Thank you for purchasing this product. This guide is designed to be a reference tool for the product. Please read it carefully before operating the product and retain it for future reference. Should you require any technical assistance, please contact Speco Technologies Technical Support. CAUTION...
  • Page 3: Limitation Of Liability

     If any liquid or solid matter gets into the housing, immediately disconnect the camera from power supply and have it checked by your authorized dealer before reusing.  Avoid installing the camera at extremely hot or cold places.  If you are not a certified person, never try to dismantle the camera. To avoid electric shock, never remove the screws or covers.
  • Page 4: Specification

     Supports CBR (Constant Bit Rate) and VBR (Variable Bit Rate) modes  Supports Tampering-Alarm in VA (Video Analytics) function  Controllable frame rate  Privacy Masking up to 8 areas  Supports IEEE 802.3af Power over Ethernet injectors, mid- and end-spans ...
  • Page 5: Name And Function Of Each Part

    Operating -10 degree ~ 50 degree Celsius (-14F ~ 122F) Temperature Environment Storage -20 degree ~ 60 degree Celsius (-4F ~140F) Temperature Software Included Software IP Scanner (Windows only) Package Package Contents Network Camera, Use Manual, External Power Adaptor(option) ※ Specifications are subject to change without prior notice for improvement. 2.
  • Page 6: Name And Function

    Tapping screw (Ø4 x 30) x 4 Plastic anchor x 4 Screw PH (M4 x 8) x 3 Screw PH (M4 x 12) x 4 2.2 Name and Function ITEM DESCRIPTION Power Connector DC12V Network and POE (Power over Ethernet) and LAN cable POE Connector Lens 3 ~ 12mm Vari-focal Motorized Megapixel Lens...
  • Page 7 Plastic anchor x 3 (A) L-Wrench Tapping screw (Ø4 x 30) x 3  Wall ① Drill three screw holes on the wall plate to fix three plastic anchors (supplied) in the holes. ② Fix the plastic anchors in the holes. ③...
  • Page 8: 3-Axis Adjustment

    Ceiling Tile Plastic anchor x 4 Junction Base Sponge Junction Box Assembly Tapping screw (Ø4 x 30) x 4 Top Adapter Plate Top Rubber Finish with Super X Camera Ass'y PH (M4 x 8) x3 PH (M4 x 12) x4 3.2 3-Axis Adjustment Panning 360°...
  • Page 9 LAN Switch Router Internet Remote Access Local Access E-Mail / FTP 3.3.2 Connecting to the Network Open up IP Scanner. IP Scanner can search for the device on the local network. Please note that only devices that are on the same subnet can be discovered. The device is set to DHCP mode by default.
  • Page 10: Dimension (Mm)

    Enter the IP address here 2) Enter the user name and password when prompted. 3) Default user name is admin and password is 1234. 4) If prompted for installation of the Active-X plug-in, allow the installation. Active-X is needed to view video from Internet Explorer.
