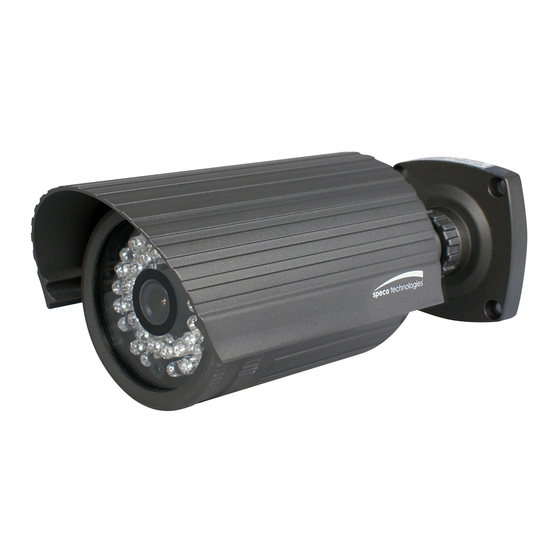

Speco ONSIP O2B5 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
O
O
2
2
B
B
5
5
U
U
s
s
e
e
r
r
'
'
s
s
M
M
a
a
n
n
u
u
a
a
l
l
ONSIP O2B5
Rev.1.1 (Sep,2013)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ONSIP O2B5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Speco ONSIP O2B5

Summary of Contents for Speco ONSIP O2B5

  • Page 1 ’ ’ ONSIP O2B5 Rev.1.1 (Sep,2013)
  • Page 2 ’ ’ D i r e c t i o n s D i r e c t i o n s D i r e c t i o n s D i r e c t i o n s Be careful not to cause any physical damage by dropping or throwing the camera.

  • Page 3: Revision History

    ’ ’ Caution Any changes or modifications in construction of this device which are not explicitly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Revision History Date Revision Details Sep 13 , 2013 First manual revision creation.

  • Page 4: Table Of Contents

    ’ ’ Contents Contents..................4 1. Introduction ................5 1.1. Overview ....................5 1.2.

  • Page 5: Introduction

    ’ ’ 1. Introduction 1.1. Overview The O2B5 is a state-of-the-art mega-pixel, dual-codec (H.264, MJPEG) IP/network camera built with embedded software and hardware technology. It enables real time transmission of synchronized video of up to 1080p and audio data. Remote clients can connect to O2B5 for real time video/audio data through various client solutions running on PC, PDA or mobile phones.

  • Page 6: Specifications

    Web Viewer Internet Explorer 8 and up Client & Viewer Speco NVR (Windows) Dynamic IP support DDNS support Speco DDNS (free of charge) Video/Audio stream encryption ID and Password protection Security IP filtering for restricting administrative access Sync to PC...

  • Page 7: Applications Of O2B5

    ’ ’ 1.3. Applications of O2B5 Security surveillance (buildings, stores, manufacturing facilities, parking lots, banks, government facilities, military, etc.) Remote monitoring (hospitals, kindergartens, traffic, public areas, etc.) Teleconference (Bi-directional audio conference). Remote Learning, Internet broadcasting Weather and environmental observation Rev.1.1 (Sep,2013)

  • Page 8: Product Description

    Quick installation guide Guide 2.2. Product Preview VMS Software O2B5 IP Installer (Speco NVR) PC software to view and record PC software to locate IP cameras on the A/V streaming data transmitted Weather proof (Megapixel) the network and assign IP from IP camera.

  • Page 9: Physical Description

    ’ ’ 2.3. Physical description 2.3.1. External View Sun Visor IR LED 3 Axis Bracket Figure 2-1. External view of O2B5 2.3.2. Dimensions Figure 2-2. Dimensions Rev.1.1 (Sep,2013)
  • Page 10 ’ ’ 2.3.3. Connector information Audio Out Power 12VDC Sensor in Audio In RJ-45 Ethernet Figure 2-3. Connector information 2.3.4. Micro SD card and Factory default switch Factory default switch Micro SD card slot Figure 2-4. Factory Default switch and Micro SD card slot Rev.1.1 (Sep,2013)

  • Page 11: Functional Description

    ’ ’ 2.4. Functional Description Power Power input for supplying 12V 1A DC power. Caution: If O2B5 is powered by PoE, do not plug in DC Jack with active DC power into DC power connector. Audio (MIC/LINE) IN Connect external audio source or microphone. Audio (Line) Out Connect speakers with built in amplifier.

  • Page 12: Accessories For Installation

    ’ ’ Factory Default Switch A switch provided for returning the IP camera to factory default state. Unscrew the cover to access the switch. Press the switch about 5 seconds while power is applied. Factory default switch Figure 2-5. Factory Default Switch 2.5.

  • Page 13: On Site Installation

    ’ ’ 3. On Site Installation Use cables and conduits that are suitable for the installation. Close attention should be paid to the installation so that no moisture is allowed to penetrate into the unit through the cables or conduits during the lifetime of the product.

  • Page 14: Micro Sd-Card

    ’ ’ 3.2. Micro SD-card 1. Disassemble the sun visor Figure 3-2. Disassemble Sun Visor 2. Unscrew lens cover Figure 3-3. Unscrew Lens Cover 3. Insert micro SD card in slot Insert Micro SD-card Micro SD-card slot Figure 3-4 Insertion of Micro SD card Rev.1.1 (Sep,2013)

  • Page 15: Getting Started

    ’ ’ 4. Getting Started Brief information for the initial operation of O2B5 is provided in this chapter. 4.1. PC System Requirements Audio/Video streaming data received from O2B5 can be displayed or stored in a PC running client programs. Minimum requirements of the PC is described below: Minimum Requirements Recommended Specifications Intel Core i3 3Ghz...

  • Page 16: Quick Installation Guide

    ’ ’ 4.2. Quick Installation Guide 1. Connect PC and O2B5 to network. 1) Prepare a PC to run programs for the installation and video connection 2) In the case of using PoE, connect the PC and O2B5 to the network using one of the following ways. If your LAN Switch does not support standard PoE, connect O2B5 as shown in dotted line in Figure 4-1.
  • Page 17 ’ 2. Install Speco-NVR Speco-NVR is a multi-channel VMS program for the IP camera. Install Speco-NVR on remote PC to connect to these products. It is needed to assign connection information to Speco-NVR program before connection. Insert the CD provided with product into the PC and install Speco-NVR.
  • Page 18 ’ ’ Click on the field in (3) for sorting and rearranging the list. Select network mode that best suits from the drop down list in (5). You can choose either Static or ADSL and Auto (DHCP), respectively. If ADSL and Auto are selected, the fields in (6) are deactivated.
  • Page 19 Note : Active-X module should be installed on your PC before actual connection. If your PC is not connected to the internet, you cannot download Active-X module. Most convenient way of installing the Active-X module is installing Speco-NVR which is available from the CD or the website.
  • Page 20 SAVE button. You can see the live video when you click the live view button as below. When you exit Speco-NVR, you have to input the ID/PW, admin/1234. Details for Speco-NVR can be found in [Speco-NVR User’s Guide].
  • Page 21 ’ ’ 4. Additional settings through connection to the Admin Page All parameters of the camera are factory default out of the box. For a more sophisticated target application, parameters need to be changed through the admin page. The admin page can be connected through ”http://IP_address:HTTP_port_number”/admin.htm ID and password of the administrator are required.

  • Page 22: Troubleshooting

    ’ ’ 5. Troubleshooting 5.1. No power is applied In case of Standard PoE (Power over Ethernet) Power supply through standard PoE is possible only when the following conditions are met. 1. Standard PoE is supported on the product. 2. The LAN switch supports standard PoE. Make sure that both the IP camera and the LAN switch support standard PoE (IEEE 802.3af) In case of DC adapter If PoE is not applied, the power and network connection should be made through separate cables.

  • Page 23: Cannot Connect To The Video

    ’ ’ 5.2. Cannot connect to the Video Check the status of the network connection through PING test. Try the following on your PC: Start > Run > Cmd > Ping IP address (Ex : Ping 172.16.42.51) If “Reply from ~”...

  • Page 24: Windows Vista Or Windows 7

    5.3. Windows Vista or Windows 7 Windows Vista and Windows 7 users need to configure UAC (User Access Control) and Privilege Level for proper recording and still video capture in Speco-NVR and Web Viewer. <Windows Vista> 1. UAC (User Access Control) configuration 1) Double-click “User Accounts”...
  • Page 25 ’ ’ <Windows 7> 1. UAC (User Access Control) configuration 1) Double-click “User Accounts” in control panel 2) Double-click “Change User Account Control setting” 3) Set to “Never notify” Rev.1.1 (Sep,2013)
  • Page 26 ’ ’ 2. Privilege Level Control 1) Select “NVR” icon on the desktop 2) Click right mouse button and select “properties” 3) Check “Privilege Level” in “Compatibility” tab Rev.1.1 (Sep,2013)

  • Page 27: Technical Assistance

    ’ ’ 5.4. Technical Assistance If you need any technical assistance, please contact your dealer. For immediate service please provide the following information. Model name MAC address and Registration number Purchase date Description of the problem Error message Appendix A – Important Notice in Exchanging (micro)SD-card (micro)SD card is a non-volatile memory device for storing video and audio data on the product.
