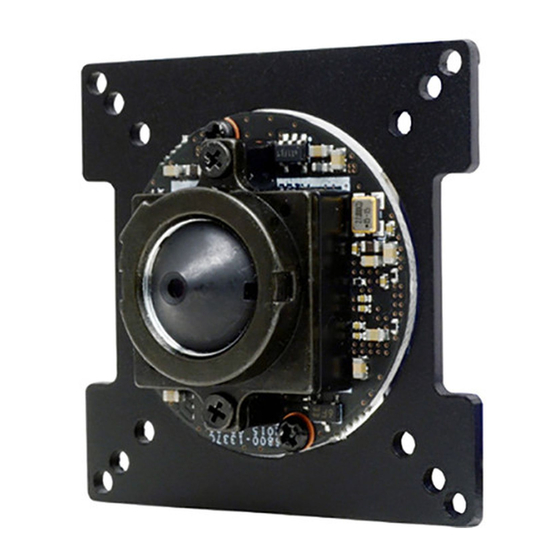

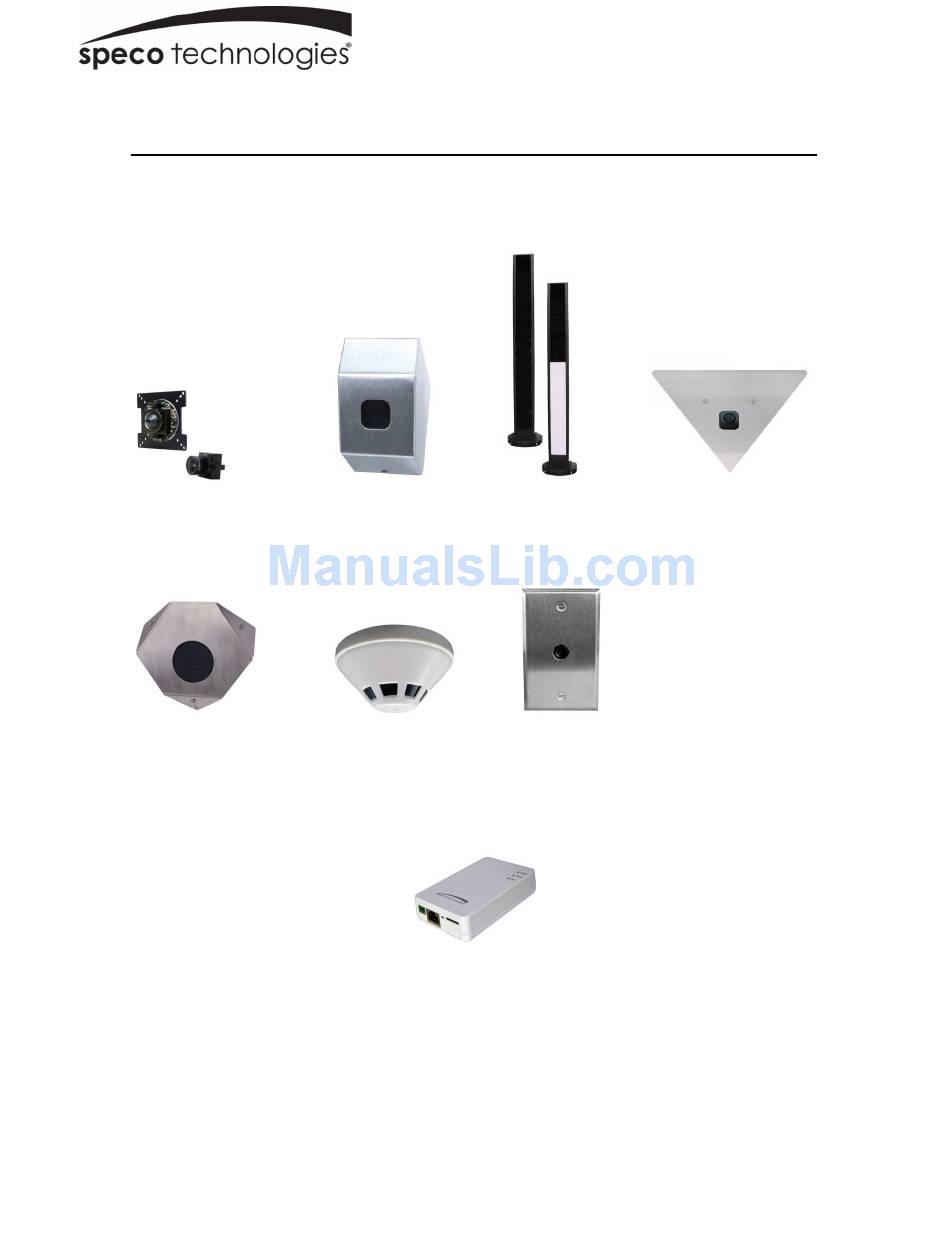

- Page 1 Intensifier® IP Specialty Cameras QUICK INSTALLATION GUIDE O2iBD3/O2i695/O2iTC23/O2i605CM/ O2i607CM/O2i562/O2i675 Please read this guide carefully before installation and operation of the product.
- Page 2 Thank you for purchasing this product. This guide is designed to be a reference tool for the product. Please read it carefully before operating the product and retain it for future reference. Should you require any technical assistance, please contact Speco Technologies Technical Support. CAUTION...
-
Page 3: Limitation Of Liability
PRECAUTIONS Please read the manual carefully before the installation in order to set up the camera correctly and to obtain the best picture quality. Installation and services should only be carried out by an authorized personnel according to local safety regulations. -
Page 4: Product Overview
1. PRODUCT OVERVIEW Key Features 2.0 Mega pixel 1/2.8" SONY progressive scan CMOS image sensor for excellent image quality Specialty housing design for specific applications 2.9mm wide angle lens or 3.6mm pinhole lens (for O2i562 only) Support for corridor view (in H.264) Integrated motion detection with pre- and post-alarm image / video buffering Supports CBR (Constant Bit Rate) and VBR (Variable Bit Rate) modes Supports Tampering-Alarm... - Page 5 Dynamic IP SPECO DDNS (Free of Charge) Password protection Network Security User access log HTTPS encryption Supported Protocol HTTP, HTTPS, DNS, RTSP, RTP, TCP, UDP, ICMP, DHCP Intelligent Video Motion detection 12 x 12 blocks System Alarm Trigger Motion detection, External Input (NO / NC Type)
-
Page 6: Name And Function Of Each Part
2. NAME AND FUNCTION OF EACH PART 2.1 Main Unit ITEM DESCRIPTION DC12V Caution : If O3FB56M is powered by PoE, do not Power Connector plug in DC Jack with active DC power into DC power connector. Network and POE POE (Power Over Ethernet) and LAN cable Connector Reset... -
Page 7: Sensor Input
Sensor Input Connect external alarm sensor. Examples of sensing devices are infrared sensor, motion sensor, heat / smoke sensor, magnetic sensor, etc. Connect the two wires of the sensor to “Sensor Input”. The sensor type (NC/NO) can be set in camera setup after logging in. Multiple sensor devices can be connected in parallel. -
Page 8: Installation And Connection
3. INSTALLATION & CONNECTION 3.1 Install Camera Housing and Connect to Main Unit Install camera housing as necessary first. Connect the cable from the camera to the main unit. Main unit will provide power to the camera unit. Install the main unit out of reach. 3.3 Install Micro SD Card SD Card SD card... - Page 9 3.4 INSTALLATION EXAMPLE 3.4.1 Installation Example LAN Switch LAN Switch Router Router Internet Internet Remote Access Remote Access Local Access Local Access E-Mail / FTP 3.4.2 Connecting to the Network Open up IP Scanner. IP Scanner can search for the device on IP Scanner can search for the device on the local network.
- Page 10 3.4.3 Accessing the Camera or video server’s Homepage 1) Open the browser and input network camera address in the address bar or double click the device in IP Scanner. Input your IP address here 2) Please input your user name and password when prompted. 3) Default user name is admin and password is 1234.
