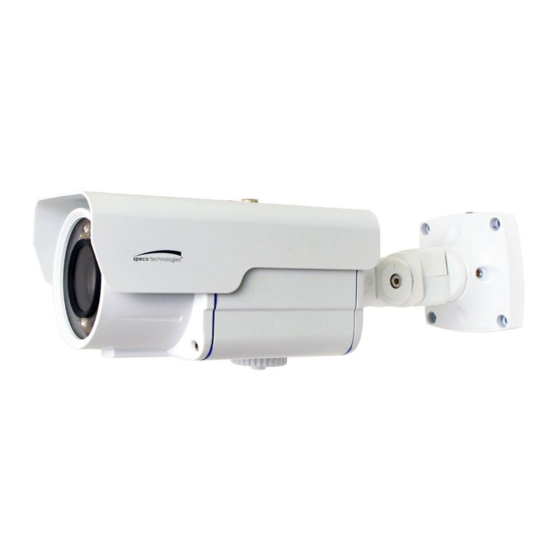

O2LPR67 User's Manual
Network Camera Manual
(O2LPR67)
Rev 1.0 (Nov. 2016)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the O2LPR67 and is the answer not in the manual?

Questions and answers

Related Manuals for Speco O2LPR67

Summary of Contents for Speco O2LPR67

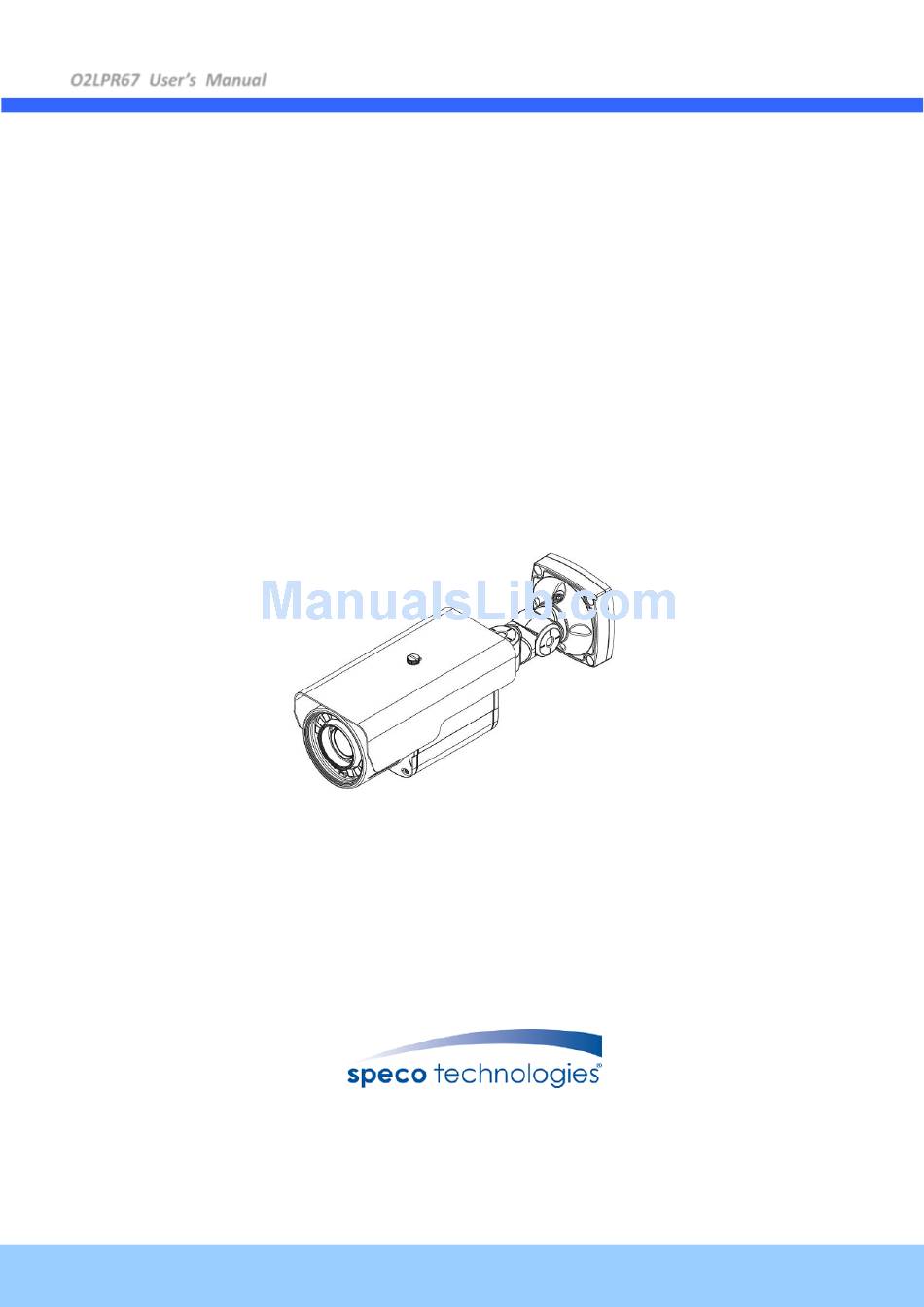

  • Page 1 O2LPR67 User’s Manual Network Camera Manual (O2LPR67) Rev 1.0 (Nov. 2016)
  • Page 2 O2LPR67 User’s Manual Directions Be careful not to cause any physical damage by dropping or throwing the camera. Especially keep the device out of reach from children. Do not disassemble the camera. No after service is assumed when disassembled. Use only the power adapter provided with the camera.

  • Page 3: Revision History

    O2LPR67 User’s Manual Caution Any changes or modifications in construction of this device which are not explicitly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Revision History Date Revision Details October, 17 2016 First manual revision creation.

  • Page 4: Table Of Contents

    Contents ........................4 1. Introduction ......................5 1.1. Overview ............................ 5 1.2. Specifications ..........................6 1.3. Applications of O2LPR67 ......................7 2. Product Description ....................8 2.1. Contents ............................. 8 2.2. Product Preview ......................... 8 2.3. Physical description ........................9 2.4.

  • Page 5: Introduction

    It enables real time transmission of synchronized video of up to 1080p and audio data. Remote clients can connect to O2LPR67 for real time video/audio data through various client solutions running on PCs and smartphones. Real time 2-way communication is available through the bidirectional audio communication feature.

  • Page 6: Specifications

    O2LPR67 User’s Manual 1.2. Specifications LENS Lens Type 5mm~50mm Motorized Lens Lens Iris Control CAMERA Image Sensor 1/3” 2Mega Sensor Minimum Illumination 0 lux(IR LEN ON) Scanning Mode Progressive Scan Dynamic Range (WDR) 108dB (True WDR) Electronic Shutter Auto / Manual(1/30~1/10000), Anti-Flicker, Slow Shutter(1~1/15sec,off)

  • Page 7: Applications Of O2Lpr67

    IR LED ON : 750mA ( MAX 950mA ) Approval FCC, CE, IP66 Specifications are subject to change without notice. 1.3. Applications of O2LPR67  Security surveillance (buildings, stores, manufacturing facilities, parking lots, banks, government facilities, military, etc.)  Remote monitoring (hospitals, education, traffic, public areas, etc.) ...

  • Page 8: Product Description

    O2LPR67 User’s Manual 2. Product Description 2.1. Contents The product package contains the following: Contents Description Image Remarks Main Body O2LPR67 Screw TS T1, 4EA, Screw M5X10, 4EA Tools and Mounting Screws L Wrench 1EA, Core 1EA Software & User’s Guide...

  • Page 9: Physical Description

    O2LPR67 User’s Manual 2.3. Physical description 2.3.1. External View Figure 2-1. External view of O2LPR67 2.3.2. Dimensions Figure 2-2. Dimensions Rev 1.0 (Nov. 2016)
  • Page 10 O2LPR67 User’s Manual 2.3.3. Connector information ① ② ③ ④ ⑤ ⑥ 1. Network Port 2. BNC Video Out 3. Power In 4. Ground 5. Audio In/Out 6. Alarm In/Out Figure 2-3. Connector information Rev 1.0 (Nov. 2016)

  • Page 11: Functional Description

    2.4. Functional Description  Power Power input for supplying 12V 1A DC power. Caution: If O2LPR67 is powered by PoE, do not plug in DC Jack with active DC power into DC power connector.  Audio (MIC/LINE) IN Connect external audio source or microphone.

  • Page 12: Accessories For Installation

    Figure 2-5. Factory Default Switch 2.5. Accessories for installation Figure 2-6. Accessories for installation of O2LPR67 On Site Installation Use cables and conduits that are suitable for the installation. Close attention should be paid to the installation so that no moisture is allowed to penetrate into the unit through the cables or conduits during the lifetime of the product.

  • Page 13: Installation

    Brief information for the initial operation of O2LPR67 is provided in this chapter. 4.1. PC System Requirements Audio/Video streaming data received from O2LPR67 can be displayed or stored in a PC running client programs. Minimum requirements of the PC are described below:...
  • Page 14 O2LPR67 User’s Manual Minimum Requirements Recommended Specifications Intel Core i3 Intel Core i5 Main Memory Operating System Windows XP Windows 7,8 (64bit) Web Browser Internet Explorer 8 Internet Explorer 8 or higher Video RAM 256MB or more Video RAM 1GB...

  • Page 15: Quick Installation Guide

    1) Prepare a PC to run programs for the installation and video connection 2) In the case of using PoE, connect the PC and O2LPR67 to the network using one of the following ways. If your LAN Switch does not support standard PoE, connect O2LPR67 as shown in dotted line in Figure 4-1.
  • Page 16 O2LPR67 User’s Manual 2. Install IP Scanner IP Scanner is a utility to discover IP cameras on the local network. The camera is set to DHCP mode out of the box. Follow the sequence below to access the camera settings Install IP Scanner on the PC that will be used on the same local network as the IP camera.
  • Page 17 3. Remote video connection to O2LPR67 1) Connection through Web Viewer The web viewer offers the simplest way to connect to the O2LPR67. For video connection, enter the IP address of O2LPR67 in the Internet Explorer address bar as: Port 80 (default) can be [e.g.] Port 80...
  • Page 18 O2LPR67 User’s Manual Rev 1.0 (Nov. 2016)

  • Page 19: Troubleshooting

    O2LPR67 User’s Manual 5. Troubleshooting 5.1. No power is applied  In case of Standard PoE (Power over Ethernet) Power supply through standard PoE is possible only when the following conditions are met. 1. Standard PoE is supported on the product.

  • Page 20: Cannot Connect To The Camera

    O2LPR67 User’s Manual 5.2. Cannot connect to the camera Check the status of the network connection through PING test. Try the following on your PC: Start > Run > Cmd > Ping IP address (Ex : Ping 172.16.42.51) If “Reply from ~”...

  • Page 21: Technical Assistance

    O2LPR67 User’s Manual 5.3. Technical Assistance If you need any technical assistance, please contact Speco’s technical support. Please provide the following information. 1. Model name 2. MAC address 3. Purchase date 4. Description of the problem 5. Error message Rev 1.0 (Nov. 2016)
