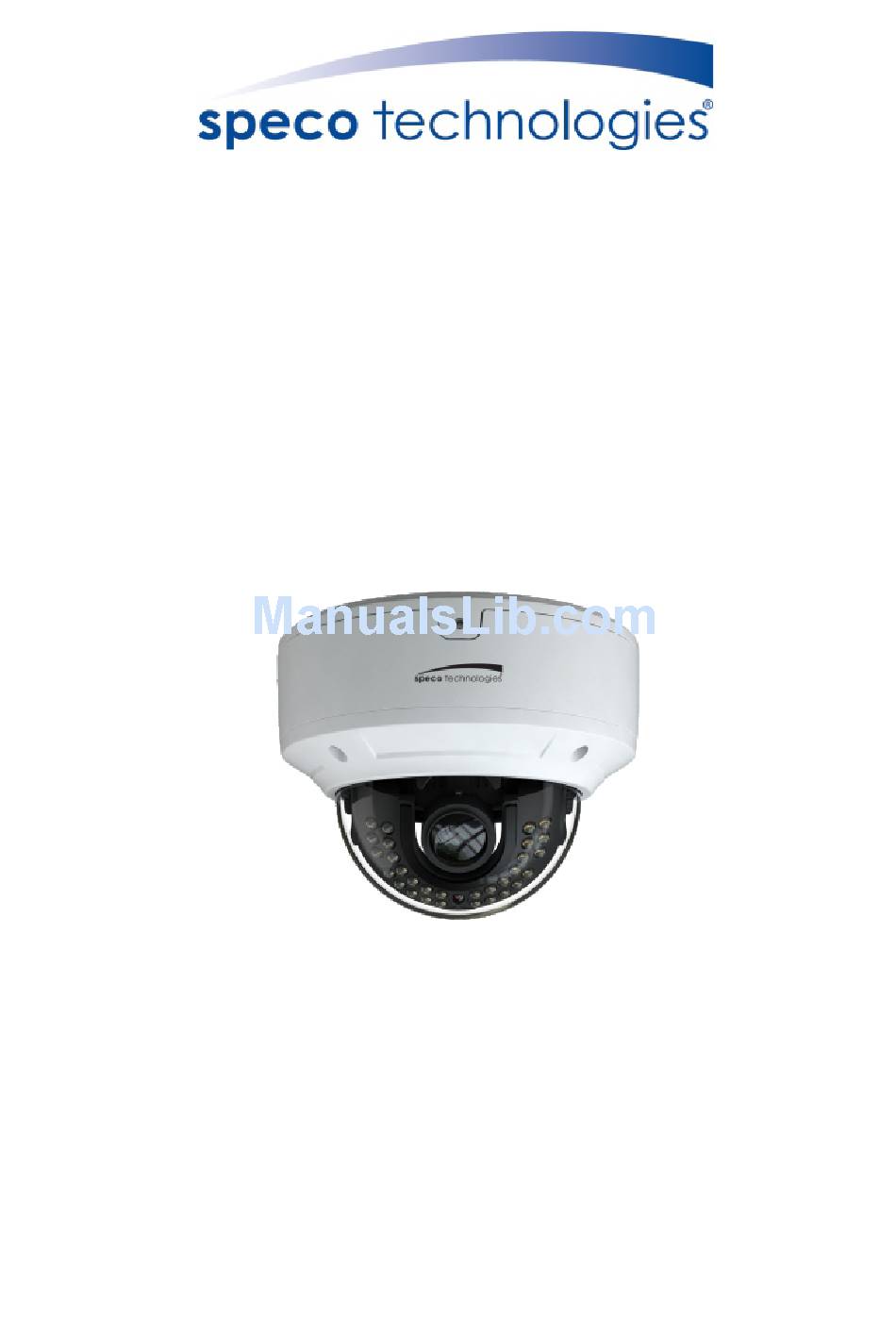

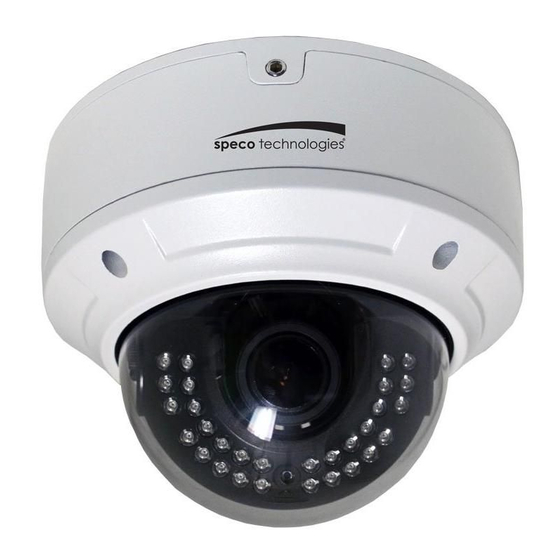

- Page 1 Quick Start Guide O2VLD6...
- Page 2 Warning and Caution ■ If the product does not work properly, please contact your dealer or the nearest service center. Never attempt to disassemble the camera yourself. Any unauthorized changes or modifications could void the warranty. ■ Do not allow water or liquid intrusion into the camera. ■...
- Page 3 Camera Quick start guide 4 tapping screws PA 4×25 ×4 Water proof cap Plastic plug Sponge Drill template Adapter Plate Screwdriver Overview Overview Mounting Base MIC IN Cable Network Cable Power Cable...
- Page 4 DC12V * 1 It is recommended to install the water-proof cap for outdoor installations. * 2 DC 12V power supply is not required if a PoE switch or injector is used to power the camera. ► Connecting Network Cable ① Loosen the nut from the main element. ②...
- Page 5 Installation * Before you start, please make sure that the wall or ceiling is strong enough to withstand three times the weight of the camera. ① Install junction box onto the wall by using the screws provided. ② Install the adapter plate onto the junction box as shown below.
- Page 6 ③ Loosen the screws to open the lower dome and then loosen the lock screw to remove the mounting base. Lock Screw Mounting Base Lower Dome ④ Mount the mounting base to the adapter plate. Sponge Mounting Base ⑤ Connect the cables and fix the dome to the mounting base with the lock screw.
- Page 7 ⑥Three-axis Adjustment-Before adjustment, preview the image of the camera on a monitor and then adjust the camera according to the figure below to get an optimum angle. ⑦ Adjust the Focus and Zoom screw to get a clear image. Tilt 0°~77° Zoom Pan 0°~360°...
- Page 8 ③ In the device list, you can view the IP address, model number, and MAC address of each device. Select the applicable device and double click to open up the web viewer. You can also manually enter the IP address in the address bar of the web browser. The login interface is shown above.
