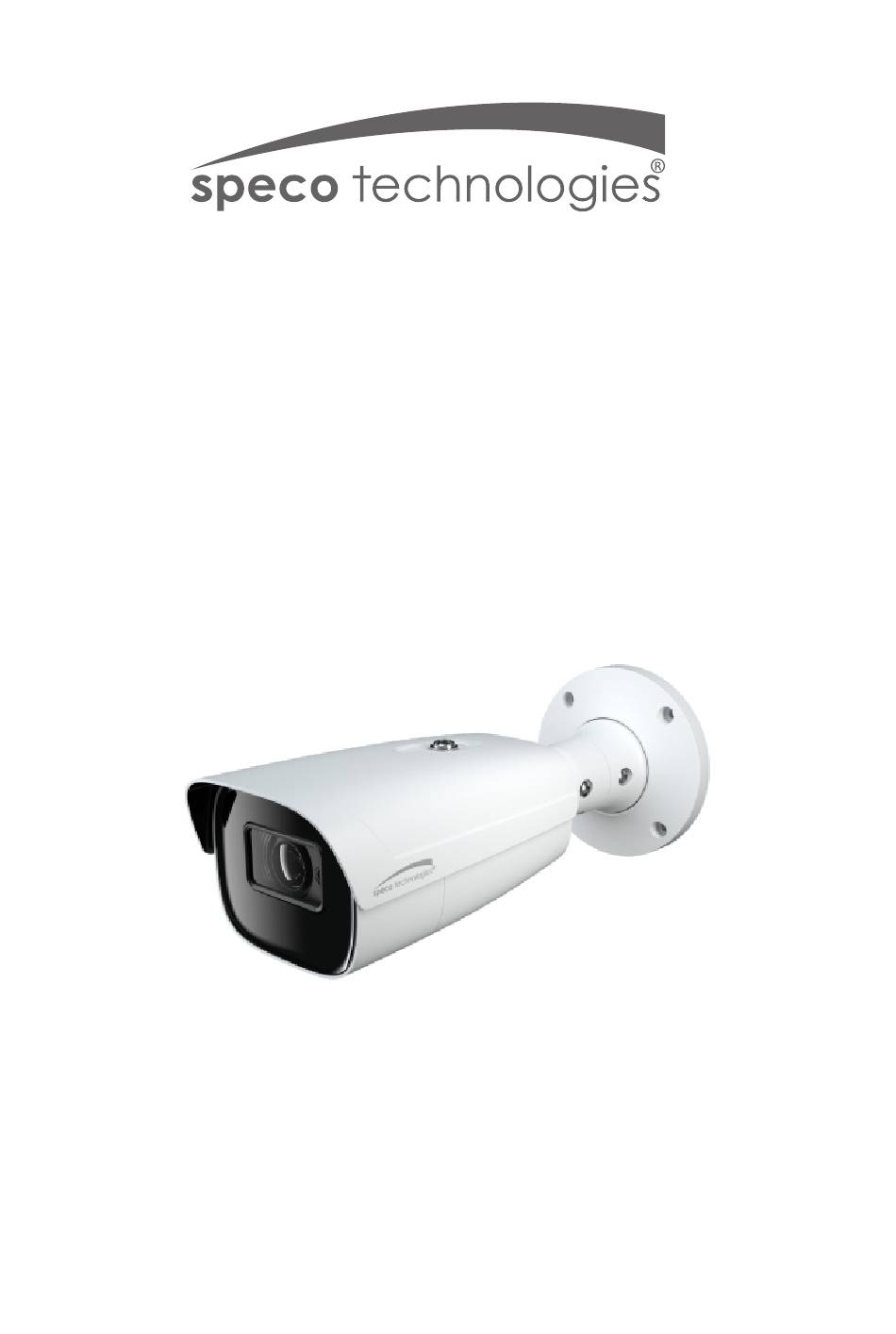

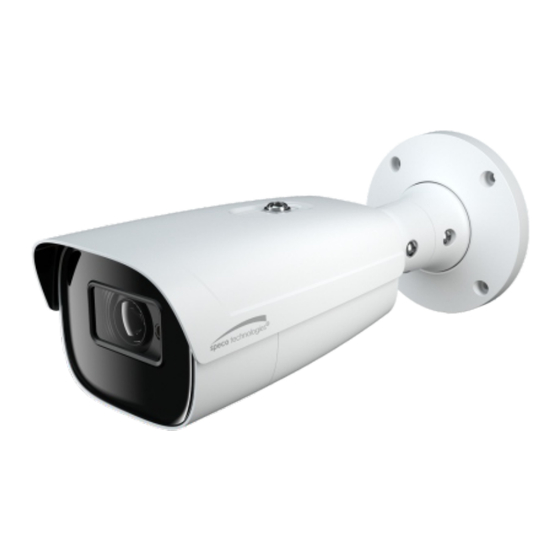

- Page 1 Quick Start Guide O2BLP2M...
- Page 2 This owner's manual is designed to be a reference tool for your system. Please read this manual carefully before operating the unit and retain it for future reference. Should you require any technical assistance, contact Speco Technologies Tech Support at 1-800-645-5516 Important Safeguards and Warning 1.
- Page 3 Technologies reserves the right to modify these without notice and without incurring any obligation. Speco Technologies is not liable for any loss caused by improper operation. Note: Before installation, check the package and make sure that all components are included.
- Page 4 4 Screws CVBS&DC 4 Screws 8 Plastic screw (6.5×38mm) (PM 4×10mm) anchors IN cables 4 Screws (PA 4×25mm) Junction box 4 Rubber o-rings for screws 1Screw (PWM3×5mm) Overview Overview Ethernet Connector* Audio Input (MIC) Audio Output (HP) CVBS Video Output Alarm Input/Output Wiegand interface RS 485...
-
Page 5: Connecting Network Cable
1--ALARM-COM 2--ALARM_OPEN 3--ALARM_IN 4--ALARM_GND 1--WIEGAND_D1 2--WIEGAND_D0 3--GND Card reader RS485T+ RS485T- RS 485 screen DC12V * It is recommended to install the water-proof connector for outdoor installations. Connecting Network Cable ① Loosen the nut from the main element. ② Run the network cable (without RJ 45 connector) through both elements. -
Page 6: Installation
Installation * Before you start, please make sure that the wall or ceiling is strong enough to withstand three times the weight of the camera. Open the mounting base and the upper cover of the junction box. Mounting base Upper cover Attach the drill template of the junction box to the place where you want to install the junction box and then rill the screw hole and calbe hole on the wall according to the drill template. - Page 7 4× 6.6mm PM 4×10mm ⑤ Route the cables through the cable hole and connect the camera. Then install the camera onto the mounting base of the junction box. ⑥ Three-axis Adjustment-Before adjustment, preview the image of the camera on a monitor and then loosen the set screws to adjust the camera according to the figure below to get an optimum angle.
- Page 8 Configuration requirements of camera and surrounding area Note: The following installation requirements are based on optimum conditions, your license capture rate may vary depending on lighting, position, license plate designs and other factors. The monitoring image shall try to cover the lane, entering/exiting vehicles and these vehicles' plate number shall be always seen in the video.
- Page 9 The depression angle of the camera shall range from 15° to 20°. If the camera is installed on the side of the road, the pan angle of the camera shall range from 0° to 20°. If the camera is installed right above the middle of the road, the pan angle of the camera shall range from -10°...
- Page 10 ② Install IP Scanner from the CD and run it after installation.Or download from https://www.specotech.com/ip-scanner/ 5C:F2:07:24:68:B9 O2BLP2M ③ In the device list, you can view the IP address, model number, and MAC address of each device. Select the applicable device and double click to open up the web viewer.
- Page 11 The login interface is shown above. Default user name is admin and password is 1234. After logging in, follow directions to install applicable plugins if prompted.
