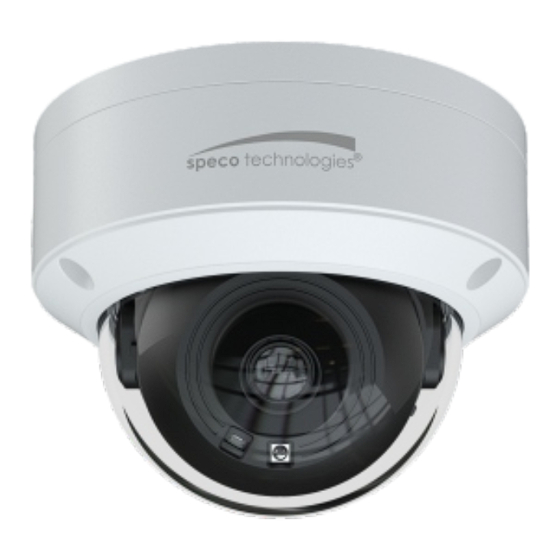

Speco O2VD2 Quick Start Manual
Hide thumbs Also See for O2VD2:

Advertisement

Quick Links

Quick Start Guide
O2VD2

Advertisement

loading
Need help?

Need help?

Do you have a question about the O2VD2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Speco O2VD2

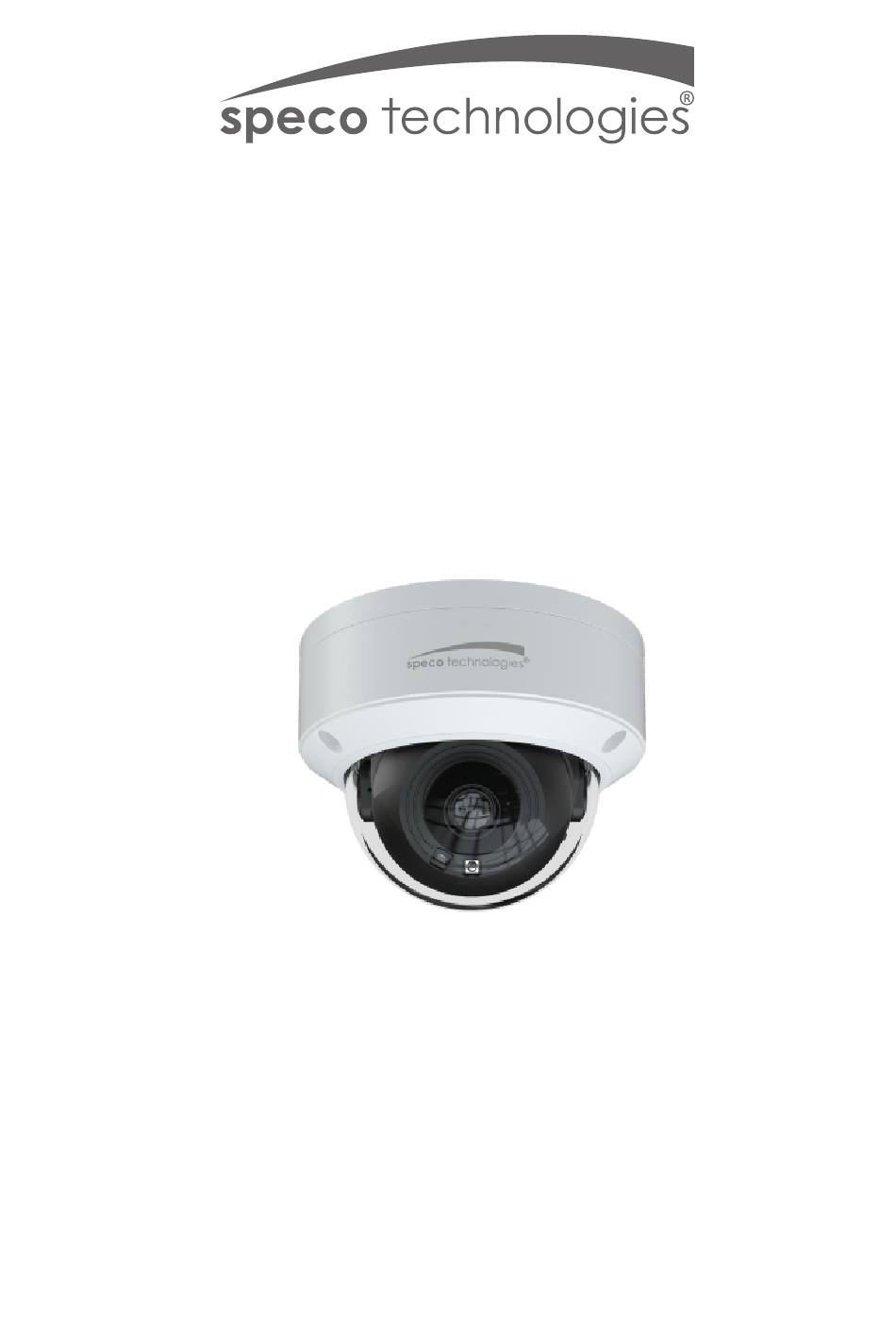

  • Page 1 Quick Start Guide O2VD2...
  • Page 2 This owner's manual is designed to be a reference tool for your system. Please read this manual carefully before operating the unit and retain it for future reference. Should you require any technical assistance, contact Speco Technologies Tech Support at 1-800-645-5516 Important Safeguards and Warning 1.
  • Page 3 Technologies reserves the right to modify these without notice and without incurring any obligation. Speco Technologies is not liable for any loss caused by improper operation. Note: Before installation, check the package and make sure that all components are included.
  • Page 4 Camera Quick start guide 3 Plastic screw anchors 3 Screws (PA 4×25mm) Screwdriver Drill template Overview Overview Ethernet connector (PoE) Power connector (3.5mm) audio input connector Micro SD Card Slot...
  • Page 5: Connecting Network Cable

    External microphone DC12V * It is recommended to install the water-proof connector for outdoor installations. Connecting Network Cable ① Loosen the nut from the main element. ② Run the network cable (without RJ 45 connector) through both elements. Then crimp the cable with RJ 45 connector. ③...
  • Page 6: Installation

    Installation * Before you start, please make sure that the wall or ceiling is strong enough to withstand three times the weight of the camera. ① Attach the drill template to the place where you want to fix the camera and then drill the screw holes and the cable hole on the wall according to the drill template.
  • Page 7 ③ Route and connect the cables. Then secure the camera to the ceiling or wall with the screws provided. 3× ④ Three-axis adjustment. Before adjustment, view the image of the camera on a monitor and then adjust the camera according to the figure below to get Pan 0°~355°...
  • Page 8 ⑤ Install the lower dome back to the camera and fasten it with screws. Finally, remove the protection film softly. Web Operation and Login IP Scanner can search for the device on the local network. ● Operation ① Make sure that the camera and the PC are connected to the same local network.
  • Page 9 5C:F2:07:24:58:9A O2VD2 ③ In the device list, you can view the IP address, model number, and MAC address of each device. Select the applicable device and double click to open up the web viewer. You can also manually enter the IP address in the address bar of the web browser.
