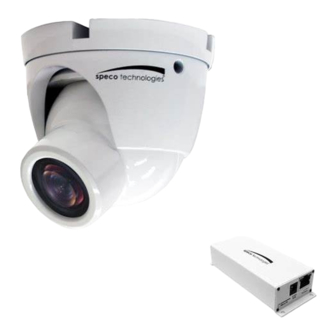

- Page 1 O2iMT61 O2iMT61 ® Intensifier IP Full Full HD Megapixel Indoor/Outdoor xel Indoor/Outdoor Miniature ature Turret IP Camera...
- Page 2 ’ ’ Directions Be careful not to cause any physical damage by dropping or throwing the camera. Especially keep the device out of reach from children. Do not disassemble the camera. No after service is assumed when disassembled. Use only power adapters compatible with the unit. Be careful to prevent moisture or water penetration into the unit.
- Page 3 ’ ’ Revision History Date Revision Details Feb 25 , 2014 First manual revision creation. Rev.1.0 (Feb. 2015)
-
Page 4: Table Of Contents
Quick Installation Guide ........................17 4.2.1. Connect PC and O2iMT61 to network..................17 4.2.2. Install Speco-NVR and set IP parameters on O2iMT61 ............17 4.2.3. Remote video connection to O2iMT61 ..................19 4.2.4. Additional settings through connection to the Admin Page ............21 Troubleshooting ............................ -
Page 5: Introduction
It enables real time transmission of synchronized video of Full HD resolution and audio data. Remote clients can connect to ONSIP O2iMT61 for the real time video/audio data through various client solutions running on PC, PDA or mobile phones. Real time 2-way communication is available through bidirectional audio communication feature. -
Page 6: Specifications
’ ’ 1.2. Specifications Camera Image sensor Progressive scan 1/3 inch CMOS 2M pixels Full resolution 1,920 x 1,080 pixels (Full HD) Sync System Internal Lens 2.9mm fixed (3.6mm, 6mm optional) Day & Night AUTO, DAY, NIGHT Sensitivity Intensifier Max – 0.0005 Lux Back Light Compensation ON / OFF White Balance... - Page 7 Network Protocol - RTP, RTSP, SDP, HTTP, SMTP, FTP, DHCP, UPnP - NTP, DNS, DynDNS Dynamic IP Speco DDNS (free of charge) - User ID & Password protection, IP address filtering Security - Digest Authentication, User Access Log - RTSP streaming with proprietary format for control information...
-
Page 8: Applications Of O2Imt61
’ ’ 1.3. Applications of O2iMT61 Security surveillance (buildings, stores, manufacturing facilities, parking lots, banks, government facilities, military, etc.) Remote monitoring (hospitals, kindergartens, traffic, public areas, etc.) Teleconference (Bi-directional audio conference). Remote Learning, Internet broadcasting Weather and environmental observation Rev.1.0 (Feb. 2015) -
Page 9: Product Description
2.1. Contents The product package contains followings : contains followings : Contents Description Remarks Remarks O2iMT61 O2iMT61 O2iMT61 main and camera units Screws (1 type) Screws (1 type) Anchors (1 type) Anchors (1 type) Accessories L-type wrench type wrench Cable bracket Cable bracket and Screw Software &... -
Page 10: Physical Description
’ ’ 2.3. Physical description 2.3.1. External View Figure 2-1. External view of O2iMT61 2.3.2. Dimensions Unit : mm Figure 2-2. Dimensions Rev.1.0 (Feb. 2015) -
Page 11: Front And Rear View Of Encoder Box
’ ’ 2.3.3. Front and Rear view of Main Unit Main Unit Cable bracket screw hole Description Description Line Output Line Output Ground MIC/Line Input Line Input Figure 2-3. Front view Relay Output Relay Output Relay Output Output Sensor Input Sensor Input (+) Connect Connect Camera... -
Page 12: Functional Description
Power input for supplying 12V DC power. Caution : If O2iMT61 O2iMT61 is powered by PoE, do not plug in DC Jack with active DC is powered by PoE, do not plug in DC Jack with active DC power into DC power connector. - Page 13 ’ ’ Sensor Input Connect external alarm sensor. Examples of sensing devices are infrared sensor, motion sensor, heat/smoke sensor, magnetic sensor, etc. Connect the two wires of the sensors to “Sensor Input”. The sensor type (NC/NO) can be set in admin page. Multiple sensor devices can be connected in parallel. NO/NC Type Open Collector Type Photo Coupler...
-
Page 14: On Site Installation
’ ’ 3. On Site Installation Use cables and conduits that are suitable for the installation. Particular attention should be paid in the installation so that no moisture is allowed to penetrate into the unit through the cables or conduits during the life time of the product. - Page 15 ’ ’ 5. Fix the connecting wire from the camera to the main unit by using the cable bracket. 6. Connect the power cable and LAN cable to the main unit.
-
Page 16: Getting Started
Brief information for first time operation of O2iMT61 is provided in this chapter. 4.1. PC Requirement Audio/Video streaming data received from O2iMT61 can be displayed or stored in a PC running client programs. Minimum requirement of the PC is described below:... -
Page 17: Quick Installation Guide
2. In the case of using PoE, connect the PC and In the case of using PoE, connect the PC and O2iMT61 to the network using one of the following ways. to the network using one of the following ways. - Page 18 ’ ’ Follow the sequence below for setting the IP parameter Follow the sequence below for setting the IP parameter Run ONSIP installer Click (1) in ONSIP installer window.> Double click on (2) > Fill in (4) > make a selection in (5) > Fill (1) in ONSIP installer window.>...
-
Page 19: Remote Video Connection To O2Imt61
1. Connection through Web Viewer Web Viewer offers simplest way of video connection to Web Viewer offers simplest way of video connection to O2iMT61. For video connection, enter the IP . For video connection, enter the IP address of O2iMT61 in the URL window of Internet Explorer as:... - Page 20 When you exit Speco-NVR, you have to input the ID/PW, admin/1234. Details for Speco NVR, you have to input the ID/PW, admin/1234. Details for Speco-NVR can be found in NVR can be found in [Speco-NVR User’s Guide].
-
Page 21: Additional Settings Through Connection To The Admin Page
’ ’ 4.2.4. Additional settings through connection to the Admin Page All parameters of the camera are factory default out of the box. For a more sophisticated target application, parameters need to be changed through the admin page. The admin page can be connected through “http://IP_Address:Port_Number/admin.htm”... -
Page 22: Troubleshooting
’ ’ 5. Troubleshooting 5.1. No power is applied In case of Standard PoE (Power over Ethernet) Power supply through standard PoE is possible only when the following conditions are met. 1. Standard PoE is supported on the product. 2. The LAN switch supports standard PoE. Make sure that both the IP camera and the LAN switch support standard PoE (IEEE 802.3af) In case of DC adapter If PoE is not applied, the power and network connection should be made through separate cables. -
Page 23: Cannot Connect To The Video
’ ’ 5.2. Cannot connect to the Video Check the status of the network connection through PING test. Try the following on your PC : Start > Run > Cmd > Ping IP address (Ex : Ping 172.16.42.51) If “Reply from ~” message is returned ( in the figure below), the network connection is in normal ①... -
Page 24: Windows Vista Or Windows 7
Windows Vista and Windows 7 users need to configure UAC (User Access Control) and Privilege Level for proper recording and still video capture in Speco proper recording and still video capture in Speco-NVR and Web Viewer. <Windows Vista> 1. UAC (User Access Control) configuration . - Page 25 ’ ’ <Windows 7> 1. UAC (User Access Control) configuration 1. UAC (User Access Control) configuration 1) Double-click “User Accounts” in control panel click “User Accounts” in control panel 2) Double-click “Change User Account C click “Change User Account Control setting” 3) Set to “Never notify”...
- Page 26 ’ ’ 2. Privilege Level Control 1) Select “NVR” icon on the desktop 2) Click right mouse button and select “properties” 2) Click right mouse button and select “properties” 3) Check “Privilege Level” in “Compatibility” tab 3) Check “Privilege Level” in “Compatibility” tab...
-
Page 27: Technical Assistance
’ ’ 5.4. Technical Assistance If you need any technical assistance, please contact If you need any technical assistance, please contact technical support. For immediate service please . For immediate service please provide the following information. Model name 1 . 1 . 1 . 1 . MAC address and Registration number MAC address and Registration number 2 . -
Page 28: Appendix A - Important Notice In Exchanging Sd Card (Micro Sd)
’ ’ Appendix A – Important Notice in Exchanging SD Card (Micro SD) SD Card is a non-volatile memory device for storing video and audio data on the product. Note that continuous recording to the SD Card will cause the memory cell to wear out, eventually resulting in failure. When you plug out the SD Card for replacement or other purpose, follow the steps below in order to prevent data loss or crash of the SD Card.
