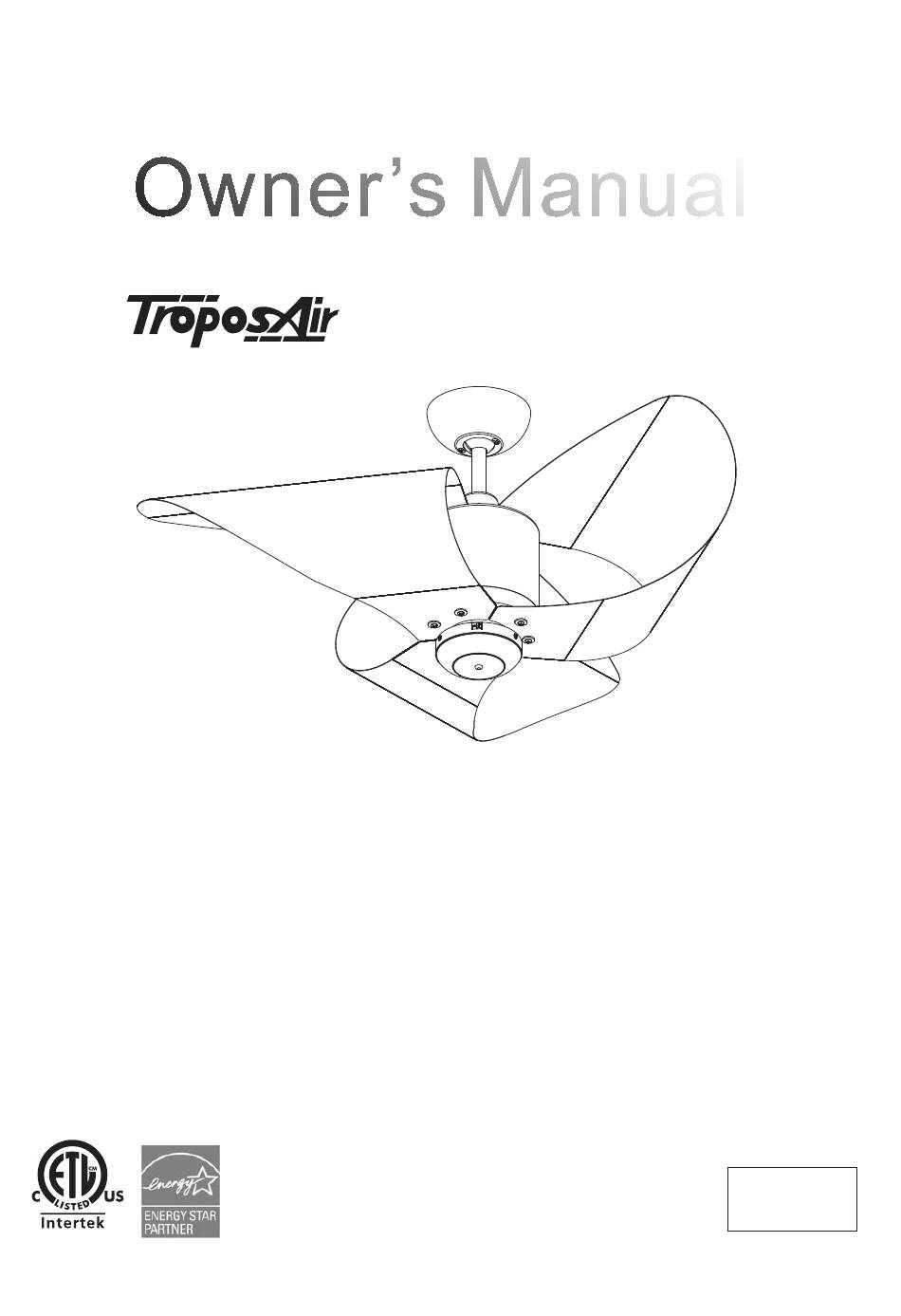

Owner's Manual
The L.A.
This instruction contains 6 pages:
Page 1: Foreword
Page 2: Unpack and inspect parts contained
Page 3:
Page 4:
Wire Connection and Canopy installation
Page 4~5: Blade installation
Page 6: Remote
3110124
Toll Free: 1-855-676-7247
WARNING : Read and follow these instructions carefully and be mindful of all warnings shown throughout.
3LA44
Net weight
6.0 KGS.
13.2 LBS.
Advertisement
Table of Contents
Related Manuals for TroposAir 3LA44
Summary of Contents for TroposAir 3LA44
- Page 1 Owner’s Manual The L.A. 3LA44 This instruction contains 6 pages: Page 1: Foreword Page 2: Unpack and inspect parts contained Page 3: Hanging system installation Page 4: Wire connection and Canopy installation Page 4~5: Blade installation Page 6: Remote Net weight 6.0 KGS.
- Page 2 READ AND SAVE THESE INSTRUCTIONS WARNING : TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO PERSONS, PLEASE OBSERVE THE FOLLOWING : 1]. To ensure the success of the installation, be sure to read the instructions and review the diagrams thoroughly before beginning.
- Page 3 Unpack and inspect fan carefully to be certain all contents are included. Mounting Bracket Downrod Canopy Yoke cover Wires Blade Fan Assembly Hardware Bag For Mounting Bracket: Flat Washer x2 Spring Washer x2 Machine Screw x2 Wood Screw x2 For Wire Connection: Wire Nut x 3 For Blade Installation: Blade Screw x 13...
-
Page 4: Hanging The Fan
WARNING: blades should be at least 7 feet from floor Note 1: Note 2: Note 3: Turn off power at breaker Use metal outlet box suitable CAUTION: for fan support. box to avoid possible Do not fold blades with heavy electrical shock. - Page 5 2. WIRE CONNECTION Making electrical wire connection Follow diagram below and make sure that all exposed wires are secured inside wire nuts or terminal block. Note : Wires from house may vary in color and may not include ground wire ( green ). *White wire from house to white wire from fan *Black wire from house to black wire from fan *Ground wire from house to green wire from downrod and from mounting bracket...
- Page 6 Blade end with "This side up" label should be attached Once aligned, fasten the blade end onto TOP side to the TOP side of fan motor (facing toward ceiling). of fan motor with blade screws from hardware bag. Make sure embossed spot on motor is properly CAUTION: To avoid possible noise, do not fully aligned with positioning hole on blade.
- Page 7 5:REMOTE INSTALLATION 5A. Initial Settings (Back side of Transmitter) 1. Code setting on TRANSMITTER. Remove battery cover. FAN code setting: There are 4 switches for 16 possible code combinations just in case your house has other fans installed with the same codes. You may change your code switches by using a small screwdriver or ball point pen to slide each code switch firmly up or down.
