Egholm Park Ranger 2150 Operator's Manual

Grass collector
Hide thumbs Also See for Park Ranger 2150:
Table of Contents

Advertisement

Quick Links

Download this manual
O
'
peratOr
s manual

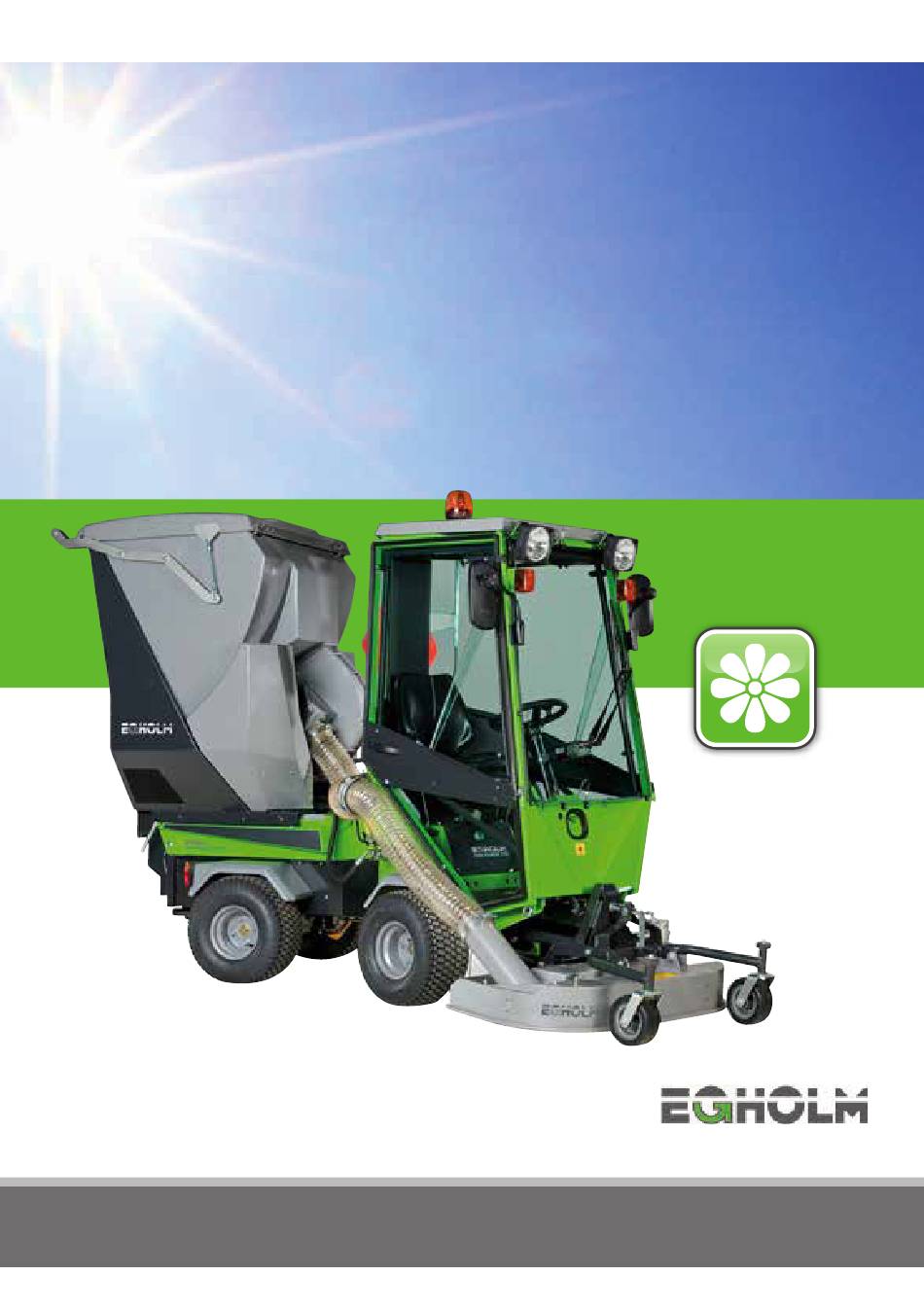

GRASS COLLECTOR
Park Ranger 2150

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Park Ranger 2150 and is the answer not in the manual?

Questions and answers

Related Manuals for Egholm Park Ranger 2150

Summary of Contents for Egholm Park Ranger 2150

  • Page 1 GRASS COLLECTOR Park Ranger 2150...
  • Page 2 Reservations: As it is the Egholm policy to make continuous improvements, we reserve the right to alter the specifications and equipment at any time without prior notice. Egholm accepts no liability for errors or omissions in the operator’s manual.

  • Page 3: Table Of Contents

    5.1 Wearing parts - Park Ranger 2150 Hopper for Grass Collecting ......

  • Page 4: General Information

    The cab of the Park Ranger 2150 is approved as a roll- over protection structure. (ROPS) It is recommended that this cab is fitted for operation in areas with a Ensure that no-one stands in the working area high risk of tipping.
  • Page 5 Do not get too close to the hopper: Make sure there is no one close to the machine when it is in use. Lowering the hopper Attaching the hopper to the machine Operator’s Manual – Park Ranger 2150 Grass Collector...
  • Page 6 Never stand behind the hopper WARNING during tipping. Do not empty the hopper without a front-mounted attachment The cover opens automatically. (Picture 2) Never empty the hopper without a front- mounted attachment Operator’s Manual – Park Ranger 2150 Grass Collector...

  • Page 7: Ec Declaration Of Conformity

    · has been manufactured in conformity with the provisions of the Machinery Directive, Directive 2006/42/EC · has been manufactured in conformity with the provisions of Directive 2000/14/EU Place: Lemvig, Denmark Date: Signature: Knud Olsen, Senior Engineer Operator’s Manual – Park Ranger 2150 Grass Collector...

  • Page 8: Technical Data

    1800 mm Hydraulic oil: Texaco Rando HDZ 46 or equivalent Airflow turbine 1500 m Air speed 70 km/h Recommended operating speed (depending on conditions) 6-10 km/h Specifications may be changed without prior notice. Operator’s Manual – Park Ranger 2150 Grass Collector...

  • Page 9: Operator's Manual

    Loosen the securing screws from the pallet. (Picture 2) Lift the stand for attaching/detaching the hopper of the brackets to remove it from the hopper. (Picture 3) Fixing hardware Stand for attaching/detaching the hopper Operator’s Manual – Park Ranger 2150 Grass Collector...

  • Page 10: Assembling The Stand For Attaching/Detaching The Hopper

    Fold it down in reverse order and hang it on the hopper. Warning! The hopper must never be emptied with the stand for attaching/detaching the hopper hanging from the hopper! Bag with bolts Mounted bolts Operator’s Manual – Park Ranger 2150 Grass Collector...
  • Page 11 (Picture 2 and 3) Position the hopper on the assembled stand. (Picture 4) Stand for attaching/detaching the hopper Rear lifting eye Front lifting eye Position the hopper on the stand for attaching/detaching the hopper Operator’s Manual – Park Ranger 2150 Grass Collector...

  • Page 12: Assembling The Rotary Mower And Hopper/ The Leaf Suction Unit And Hopper

    (Picture 2) Assemble and disassemble the leaf suction unit in accordance with the operator’s manual for the leaf suction unit. Operator’s Manual – Park Ranger 2150 Grass Collector...
  • Page 13 (Picture 3) 6) Stop the engine and apply the handbrake 7) Push the stand with the hopper over the bonnet of the Park Ranger 2150 and leave approx. 5 cm of the hopper to project to the rear. New radiator grille 8) Lower the hopper slowly over the machine.
  • Page 14 Oil overflow hoses on connector D-3 Connector D-1 to the snap coupling on the hopper. (Female snap coupling on the rotary mower or the leaf suction unit). (Picture 4) Connector D-2 Snap coupling on the hopper Operator’s Manual – Park Ranger 2150 Grass Collector...
  • Page 15 (Picture 4) b) Machines with cab – the bracket on cabin. (See picture 3) Secure hydraulic hoses - left side Suction hose Hose clip Secure the suction hose in the strap bracket Operator’s Manual – Park Ranger 2150 Grass Collector...
  • Page 16 The rotary mower and hopper are now ready to cut grass and collect clippings or the leaf suction unit is now ready to collect leaves! Removing the hopper: Hydraulic hoses Connector C Follow the procedure for fitting in reverse order. Operator’s Manual – Park Ranger 2150 Grass Collector...

  • Page 17: Checks Before Start-Up

    Check that the grass filter is clean so that expelled air can escape. (Picture 3) Check tyre pressure. Check and adjust tyre pressure to 1.5 bar (22 psi) Low tyre pressure increases the risk of roll-overs. Operator’s Manual – Park Ranger 2150 Grass Collector...
  • Page 18 D slowly in towards the seat. The lever remains in this position. To stop the rotary mower/leaf suction unit and turbine, push the lever slowly back to the neutral position. (Picture 3) Lever C Lever D Operator’s Manual – Park Ranger 2150 Grass Collector...

  • Page 19: Grass Collector Start-Up

    4. Start the rotary mower/leaf suction unit and grass collector by pulling lever D slowly in towards the seat. Lever D (Picture 2) 5. Set throttle to the full-speed position (see operator's manual for the basic machine) Operator’s Manual – Park Ranger 2150 Grass Collector...

  • Page 20: Emptying The Hopper

    Warning: Danger of fire! Please note: When you empty the contents of the hopper in a heap on the ground, the exhaust pipe of the machine is extremely hot and can ignite flammable material. Operator’s Manual – Park Ranger 2150 Grass Collector...
  • Page 21 Note: There is a risk of crushing while the hopper is being emptied. Make sure that no one stands near the machine when it is emptying. Make sure the hopper is fully lowered after emptying! Operator’s Manual – Park Ranger 2150 Grass Collector...

  • Page 22: Useful Tips

    (especially if the grass is wet). This helps to straighten and empty the hose. If cutting performance is not optimal (different heights of grass), you are driving too fast. For optimal cutting results, drive slowly. Operator’s Manual – Park Ranger 2150 Grass Collector...

  • Page 23: Service And Maintenance

    (See section 3.1 Cleaning the grass filter, points a-c) Important! Do not use a high-pressure cleaner on seals, as this may cause loss or damage. Operator’s Manual – Park Ranger 2150 Grass Collector...

  • Page 24: Maintenance

    Cleaning the air intake on the machine: There are air intakes on both sides and rear of the machine. Clean air intake filters every day or as required. (Picture 4) Side air intake filter, right Operator’s Manual – Park Ranger 2150 Grass Collector...
  • Page 25 Place the filter in the filter bracket opening and squeeze the filter levers into the two rubber fittings. (Picture 4) Pull out the filter lever Lift free the air intake filter Bracket opening Rubber fittings Operator’s Manual – Park Ranger 2150 Grass Collector...
  • Page 26 Dismount the rear air intake filter by pulling out the locking arms and clean them with water or compressed air. Refit the air intake filter and the hopper. Stand for attaching/detaching the hopper Locking arm Operator’s Manual – Park Ranger 2150 Grass Collector...
  • Page 27 Lubricate the cylinder head as required and at least once a week. Tip the hopper to maximum height. Apply universal grease using a grease gun. Lubricating nipple at top Lubricating nipple at bottom Operator’s Manual – Park Ranger 2150 Grass Collector...
  • Page 28 3.1 to gain access to the hinges. (Picture 2) Cover connection rods Lubricating cover hinges Lubricate the cover hinges once a week using WD40 or a similar product. (Picture 3) Grass filter hinges Cover hinges Operator’s Manual – Park Ranger 2150 Grass Collector...

  • Page 29: Troubleshooting

    Check the air intake filters, side filter and rear filter. Clean if necessary. (Picture 3) 5. Mowing grass too fast can result in blockages. Reduce mowing speed. Side air intake filter Rear air intake filter Operator’s Manual – Park Ranger 2150 Grass Collector...

  • Page 30: Hydraulic Diagram

    Service and maintenance 3.4 Hydraulic diagram Operator’s Manual – Park Ranger 2150 Grass Collector...

  • Page 31: Conditions

    The warranty period for the materials and manufacture of the grass collector is 12 months from the date of purchase. In case of errors or defects on the machine within the warranty period, Egholm will carry out the necessary repairs at no charge for materials and working hours in accordance with the terms and conditions listed below.

  • Page 32: Complaints

    2. Remove the plastic and rubber parts and dispose of them in accordance with the applicable environmental legislation. 3. After the parts mentioned have been removed, the machine is ready to be handed over to an approved scrap merchant. Operator’s Manual – Park Ranger 2150 Grass Collector...

  • Page 33: Wearing Parts

    Wearing parts 5.1 Wearing parts - Park Ranger 2150 Hopper for Grass Collecting E40201290 Turbine E09808870 Turbine Cover E40102670 Cover E50001877 Seal E50000375 Deflector plate E50000387 Grass filter E50000032 Hose Clip E50000039 Suction hose - long E50000036 Suction hose connector E50000372 Suction hose - short Operator’s Manual –...

  • Page 34: Notes

    Notes Operator’s Manual – Park Ranger 2150 Grass Collector...
  • Page 35 Notes Operator’s Manual – Park Ranger 2150 Grass Collector...
  • Page 36 Egholm A/S Transportvej 27 DK-7620 Lemvig T. +45 97 81 12 05 F. +45 97 81 12 10 www.egholm.eu info@egholm.dk 90100000-02 EN...
