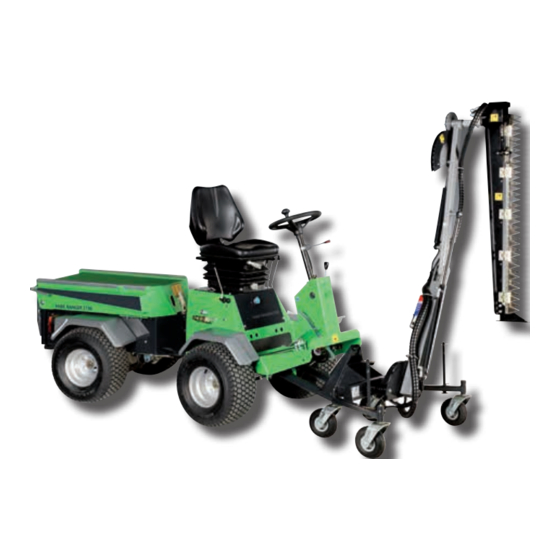

- Page 1 Operator´s manual Hedge cutter Park Ranger 2150...
- Page 2 Reservations As it is the Egholm policy to make continuous improvements, we reserve the right to alter the machine’s specifications and equipment at any time without notice. Egholm accepts no liability for errors or omissions in the operator’s manual.
-
Page 3: Table Of Contents
5.1 Wearing Parts - Park Ranger 2150 Hedge cutter ....... . -
Page 4: General Information
General information... -
Page 5: Safety
Do not drive on slopes with an incline of more attached. Low tyre pressure increases than 10° the risk of roll-overs. (Picture 3) Transport Only transport the Hedgecutter when packed in transportation position. (Picture 4) Packed in transportation position Operator’s Manual Park Ranger 2150 Hedge cutter... -
Page 6: Ec Declaration Of Conformity
Unless otherwise agreed in writing between the operator, customer and Egholm, Egholm is the data originator (data originator) of all data generated by the machine and attachments during use. -
Page 7: Technical Data
Hydraulic oil ....... . Texaco Rando HDZ 68 or equivalent Specifications may be changed without prior notice. Information plate (Picture 1+2) Type plate Type plate Cutter Operator’s Manual Park Ranger 2150 Hedge cutter... -
Page 8: Operator's Manual
Operator´s manual... -
Page 9: Assembly / Disassembly
Mount the cutter knife in the square hole, M10 bolt Tighten the allen bolt. Check the cutter can not The hydraulic hoses must be guided move at all from the cutter arm square pipe. below the cutter arm square pipe Operator’s Manual Park Ranger 2150 Hedge cutter... - Page 10 3. Raise the A-frame using lever A on the left-hand side of the Basic machine until the Hedge cutter is freely suspended above the ground. (Picture 4) Support strut lowered 4. Switch off the engine. Locking Lever A Operator’s Manual Park Ranger 2150 Hedge cutter...
- Page 11 Put the protective caps on the snap couplings to protect them from dirt. Fit the hydraulic hoses to connectors Fit the hydraulic hose to connector D Support strut up Operator’s Manual Park Ranger 2150 Hedge cutter...
-
Page 12: Before Start-Up
Lock the Hedge cutter in the raised position using the transport lock. This prevents the attachment from lowering inadvertently during transport. Always have the hedge cutter packed in transport position during transport Transport lock in locked position Packed in transportation position Operator’s Manual Park Ranger 2150 Hedge cutter... -
Page 13: Start-Up
2. (Picture 3+4) Make sure no one is standing close to the machine while it is in use. Lever D A B C Lever A Lever B Wheels on surface Operator’s Manual Park Ranger 2150 Hedge cutter... -
Page 14: Setting Trimmer Position
1. Activate Lever B until the cutting bar reaches the required position. 2. To trim at higher horizontal/vertical positions: Activate Lever C to move the cutting arm upwards. Use Lever B to reposition the cutting bar. Cutting arm Cutting arm Operator’s Manual Park Ranger 2150 Hedge cutter... - Page 15 Tips! Reach Boom adjustment If a long side-reach is required, tilt the boom to the side where trimming is to be done. (Picture 4) Locking pin Arm to right Operator’s Manual Park Ranger 2150 Hedge cutter...
- Page 16 The cutting bar is then raised higher up the hedge, so that the same section is trimmed all the way to the top. (Picture 1) Operating speed Depending on the conditions, an operating speed of 1–3 km/h is recommended. Operator’s Manual Park Ranger 2150 Hedge cutter...
-
Page 17: Service And Maintenance
Service and maintenance... - Page 18 Defective blades must be replaced immediately. This ensures effective trimming and reduces wear and tear on the Hedge cutter. Blade replacement must only be carried out by an authorised Egholm dealer Lubricating nipples Operator’s Manual Park Ranger 2150 Hedge cutter...
-
Page 19: Conditions
Conditions... -
Page 20: Warranty
The warranty period for the materials and manufacture of the Hedge cutter is 12 months from the date of purchase. In case of errors or defects on the machine within the warranty period, Egholm will carry out the necessary repairs at no charge for materials and working hours in accordance with the terms and conditions listed below. -
Page 21: Complaints
2. Remove the plastic and rubber parts and dispose of them in accordance with the applicable environmental legislation. 3. After the parts mentioned have been removed, the machine is ready to be handed over to an approved scrap merchant. Operator’s Manual Park Ranger 2150 Hedge cutter... -
Page 22: Wearing Parts
Wearing parts... -
Page 23: Wearing Parts - Park Ranger 2150 Hedge Cutter
Wearing parts 5.1 Wearing Parts - Park Ranger 2150 Hedge cutter E90601370 Complete blade set E90601050 Blade tooth E90601060 Rivet E90601410 Complete upper blade E90601420 Complete lower blade E01100330 Wheel E90601030 Knife guide E02901080 Lubricant spray E90601100 Skid Operator’s Manual Park Ranger 2150 Hedge cutter... -
Page 24: Notes
Notes Operator’s Manual Park Ranger 2150 Hedge cutter... - Page 25 Notes Operator’s Manual Park Ranger 2150 Hedge cutter...
- Page 26 Notes Operator’s Manual Park Ranger 2150 Hedge cutter...
- Page 27 Notes Operator’s Manual Park Ranger 2150 Hedge cutter...
- Page 28 Egholm A/S Transportvej 27 7620 Lemvig, Denmark T.: +45 97 81 12 05 www.egholm.eu - info@egholm.dk...
