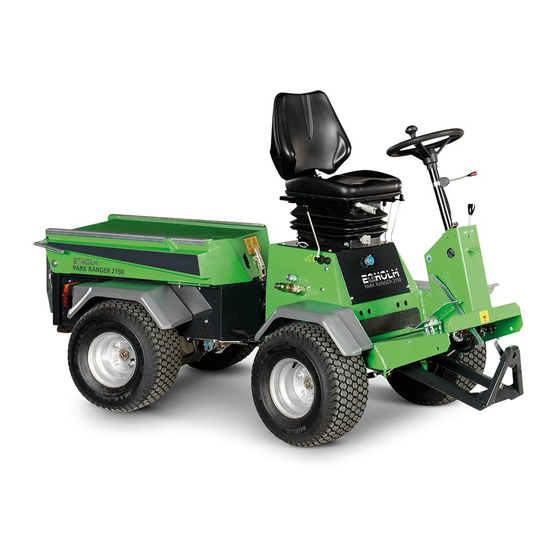

Park Ranger 2150

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Park Ranger 2150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Egholm Park Ranger 2150

Summary of Contents for Egholm Park Ranger 2150

  • Page 1 Operator´s manual Weed brush Park Ranger 2150...
  • Page 2 Introduction Dear Customer Congratulations with your new Egholm product The Park Ranger 2150 is a Danish designed and manufactured product, which offers a very flexible way of maintaining outdoor areas. Optimal use of your Park Ranger 2150 Weed brush To ensure optimal performance of your Park Ranger 2150 Weed brush, please read this manual carefully before using the machine.

  • Page 3: Table Of Contents

    5.1 Wearing parts - Park Ranger 2150 Weed brush ....... .

  • Page 4: General Information

    General information...

  • Page 5: Safety

    We recommend that you avoid driving Max. 10° with a higher engine speed than Do not drive on slopes with an incline of necessary to reduce noise and energy more than 10° consumption. Operator’s Manual Park Ranger 2150 Weed brush...

  • Page 6: Ec Declaration Of Conformity

    Unless otherwise agreed in writing between the operator, customer and Egholm, Egholm is the data originator (data originator) of all data generated by the machine and attachments during use.

  • Page 7: Technical Data

    Revolutions ......114/min. N.B! Specifications may be changed without prior notice. Side view Typeplate Front view Operator’s Manual Park Ranger 2150 Weed brush...

  • Page 8: Operator's Manual

    Operator´s manual...
  • Page 9 1. Unpack the Weed brush and lift it off the pallet. (lifting point is the pipe below the top hydraulic cylinder). (Picture 2) Weed brush delivered on a pallet wrapped in plastic. Lifting point Operator’s Manual Park Ranger 2150 Weed brush...

  • Page 10: Assembly/Disassembly

    6. Use the rubber ring to attach the hydraulic Locking handle - locked hoses under the running board to ensure that they run correctly across the screen. (Picture 4) Lever A B-connector The hoses are fastened with a rubber strap Operator’s Manual Park Ranger 2150 Weed brush...
  • Page 11 Mount the small hoses from the Weed brush then mount the small hoses directly on the Basic on the hopper connectors machine C connectors. Attaching the hydraulic hoses from the hopper to C connector Mount hydraulic hoses to D connectors Operator’s Manual Park Ranger 2150 Weed brush...
  • Page 12 2.2) 4. Release the pressure from the hydraulic hoses. Then simply reverse the procedure for assembling the unit. Rubber ring mounted on Weed brush bracket Hose fixed to cabin with rubber mount Operator’s Manual Park Ranger 2150 Weed brush...

  • Page 13: Start-Up

    N.B! When turning, the rear of the machine swings out, so there is a risk of crushing or collision. Lever A The machine must be in motion while the brush is rotating. Operator’s Manual Park Ranger 2150 Weed brush...

  • Page 14: Emptying The Hopper

    This will result in pressure being applied to the front part of the brush: - Move lever B down into position 2. (Picture 2) To tilt the Weed brush backwards - Move lever B up to position 1. (Picture 2) Operator’s Manual Park Ranger 2150 Weed brush...
  • Page 15 2. Remove the forked bolt. (Picture 3) 3. Turn the fork end in towards the wearing rail. (Picture 3) The shorter the threaded section, the more the wearing rail will be raised. The forked bolt The fork end Operator’s Manual Park Ranger 2150 Weed brush...

  • Page 16: Service And Maintenance

    Service and maintenance...
  • Page 17 5. Remove the centre brush. To fit the new centre brush, reverse the procedure. You can order new centre brushes Loosen the nuts holding the oil motor in from an authorised Egholm distributor. place, 2 pcs Operator’s Manual Park Ranger 2150 Weed brush...

  • Page 18: Troubleshooting

    4. Reconnect the suction hose. When collecting heavy material Iff you are using the machine to collect heavy material such as sand, make sure to empty the hopper from becoming unstable on account of excess weight. Operator’s Manual Park Ranger 2150 Weed brush...

  • Page 19: Conditions

    Conditions...

  • Page 20: Warranty

    The warranty period for the materials and manufacture of the Weed brush is 12 months from the date of purchase. In case of errors or defects on the machine within the warranty period, Egholm will carry out the necessary repairs at no charge for materials and working hours in accordance with the terms and conditions listed below.

  • Page 21: Complaints

    2. Remove all plastic and rubber parts and dispose of. 3. After the parts mentioned have been removed, the machine is ready to be handed over to one of your local approved scrap merchants. Operator’s Manual Park Ranger 2150 Weed brush...

  • Page 22: Wearing Parts

    Wearing parts...

  • Page 23: Wearing Parts - Park Ranger 2150 Weed Brush

    Wearing parts 5.1 Wearing parts - Park Ranger 2150 Weed brush E01103210 Hard brush E01103020 Centre brush E01103060 Soft Weed brush E09701110 Rail E02709010 Rubber ring Operator’s Manual Park Ranger 2150 Weed brush...

  • Page 24: Notes

    Notes Operator’s Manual Park Ranger 2150 Weed brush...
