Egholm Park Ranger 2150 Operator's Manual

Suction sweeper
Hide thumbs Also See for Park Ranger 2150:
Table of Contents

Advertisement

Quick Links

See also: Operator's Manual
O
´
peratOr
s manual
SUCTION SWEEPER
Park Ranger 2150

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Park Ranger 2150 and is the answer not in the manual?

Questions and answers

Related Manuals for Egholm Park Ranger 2150

Summary of Contents for Egholm Park Ranger 2150

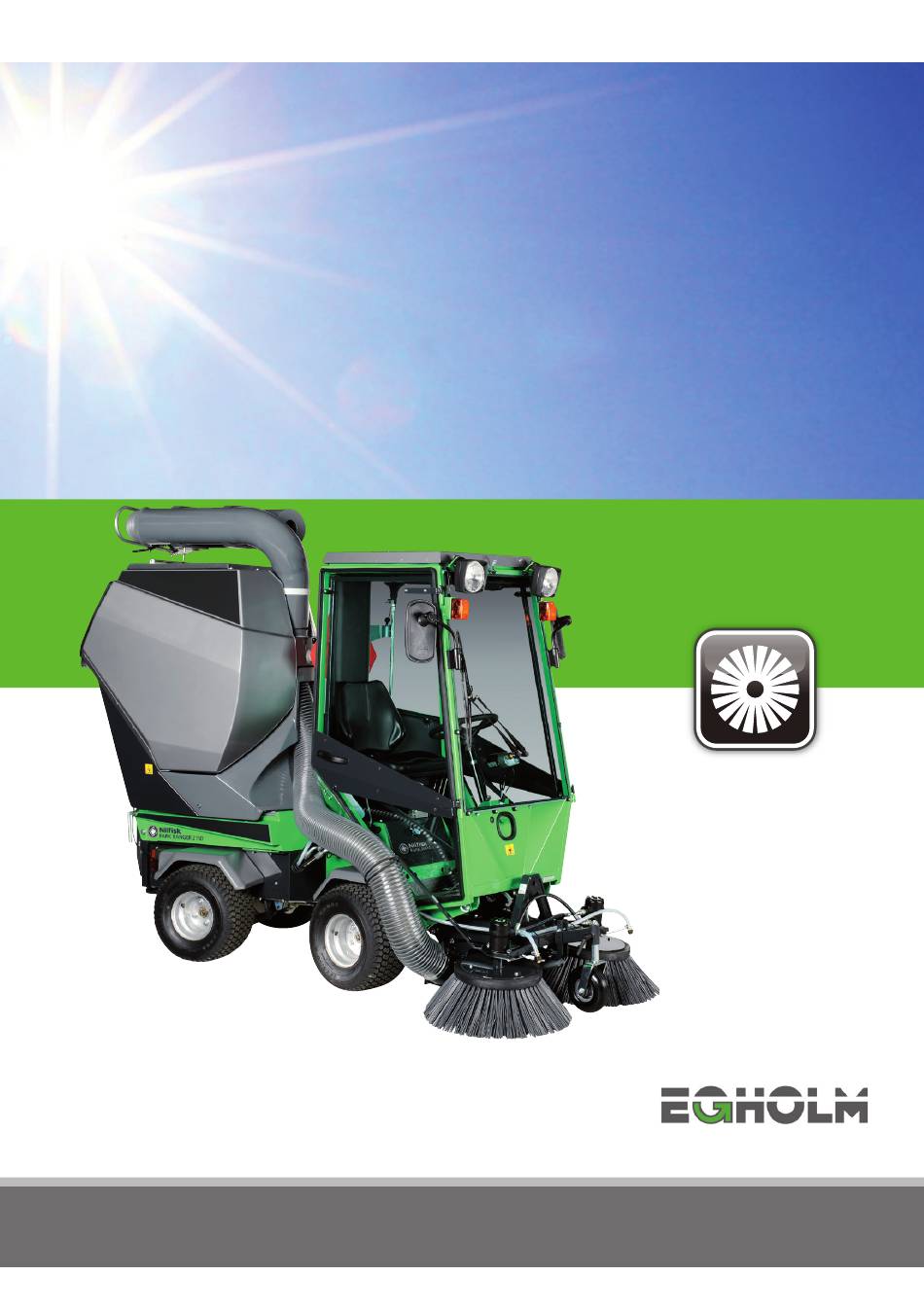

  • Page 1 ´ peratOr s manual SUCTION SWEEPER Park Ranger 2150...

  • Page 2: Introduction

    Introduction Dear Customer Congratulations with your Egholm product The Park Ranger 2150 is a Danish designed and manufactured product, which offers a very flexible way of maintaining outdoor areas. Optimal use of your Park Ranger 2150 suction sweeper To ensure optimal performance of your Park Ranger 2150 suction sweeper, please read this manual carefully before using the machine.

  • Page 3: Table Of Contents

    5.1 Wearing parts - Park Ranger 2150 suction sweeper ....... .

  • Page 4: General Information

    In order to reduce both noise level and energy consumption, it is recommended to avoid excessive motor speeds. Avoid damage to your hearing Wear ear protectors Always wear approved ear protectors when using the machine. (Picture 4) Operator´s Manual Park Ranger 2150 Suction sweeper...
  • Page 5 “angled” b. That there is sufficient space for the open back cover. The cab of the Park Ranger 2150 is approved as a roll-over protection structure. (ROPS) It is recommended that this cab is fitted for operation in areas with a high risk of tipping.

  • Page 6: Eu Declaration Of Conformity

    · DS/EN 13019 Machines for road surface cleaning – Safety requirements The Park Ranger 2150 fitted with the FH 2100 cab (ROPS approved) · has been tested at the Danish Institute of Agricultural Sciences at Bygholm...

  • Page 7: Technical Data

    Clearing area at 5-8 km/h 5,000-8,000 m Water capacity 1 water jet approx. 2½ hours 3 water jets approx. 1½ hours Hydraulic oil Texaco Rando HDZ 46 or equivalent Attention Specifications may change without notice. Operator´s Manual Park Ranger 2150 Suction sweeper...

  • Page 8: Operator´s Manual

    Fold it down in reverse order and hang it on the hopper. Attention! The hopper must never be emptied when the hopper frame is hanging on the suction sweeper! Two bolts on the hopper frame Operator´s Manual Park Ranger 2150 Suction sweeper...

  • Page 9: Assembly/Disassembly

    6. Fasten the hydraulic hoses with a rubber ring to a catch under the footboard in order to ensure that the hoses lie correctly over the guard. (Picture 3) Fasten with rubber ring Operator´s Manual Park Ranger 2150 Suction sweeper...
  • Page 10 3. Mount the fittings for the spray jet with the bolt. (Picture 2) Mount the fittings with the bolt 4. Tighten the bolt to 45 Nm. 5. The arm is now fixed and ready for use. Operator´s Manual Park Ranger 2150 Suction sweeper...
  • Page 11 E-outlets. (Picture 3) Important! Before starting The hydraulic hoses must be connected to the E-outlets of the three-way-valve before starting or there will be pressure in the couplings. Secure with safety split E-outlet Operator´s Manual Park Ranger 2150 Suction sweeper...
  • Page 12 8. Connect the 12 Volt plug on the right side of the machine. D-outlets Water hose 9. Fit the 2 hydraulic hoses to the D-outlet on the right side of the machine. (Picture 3) 10. Connect the water hose. (Picture 3) Operator´s Manual Park Ranger 2150 Suction sweeper...
  • Page 13 13. If the sweeper unit is equipped with additional side brush, lead the hydraulic hoses along the right side of the Attach the suction hose to the suction mouth machine and connect with the E-outlets. (Picture 3) C-outlets E-outlets Operator´s Manual Park Ranger 2150 Suction sweeper...
  • Page 14 Reduce the suction power and pull down the remote vac hose from the storage case on the top of the hopper. The remote vac hose is now ready for use. (Picture 4) Remote vac hose in use Operator´s Manual Park Ranger 2150 Suction sweeper...
  • Page 15 Dismounting the additional side brush Like fitting, just in reverse order. (Page 11) If sweeping is to be continued after having dismounted the additional side brush, connect the two hydraulic hoses in front of the brushes. Operator´s Manual Park Ranger 2150 Suction sweeper...

  • Page 16: Important Before Starting

    Stop the engine immediately in case of unbalance or vibrations in the filter or the turbine. A level switch ensures that the water Pre-start test - pull wire pump stops automatically when the water tank is empty. Operator´s Manual Park Ranger 2150 Suction sweeper...

  • Page 17: Start-Up

    Operator´s Manual 2.4 Start-Up 1. Start the engine. (Refer to the instruction manual for Park Ranger 2150 basic unit) 2. Switch the power output on, the water pump will start and the overload alarm will sound if overload in the hopper. (Picture 1) Power outlet button 3.
  • Page 18 Do not drive on slopes with an incline of more than 10°. (Picture 2) Máx. 10° Do not drive on slopes with an incline of more than 10° Operator´s Manual Park Ranger 2150 Suction sweeper...

  • Page 19: Hopper Discharge

    (Picture 3) 8. Start the engine. 9. Switch output power on before sweeping continues. (Picture 2) Hopper discharge Empty the hopper every day after use. Operator´s Manual Park Ranger 2150 Suction sweeper...

  • Page 20: Adjustment

    Basic Adjustment of the Suction Nozzle Adjustment follows through the two bolts on the top of the housing. The distance between the surface and the suction nozzle should be approx. 25 mm. (Picture 2) 20 20 Operator´s Manual Park Ranger 2150 Suction sweeper...
  • Page 21 (Picture 4) 6. Empty the hopper. Tighten the locknut on the calibration screw. (Only possible when the hopper is There should be 10 cm down to the sand raised). Calibration screw 21 21 Operator´s Manual Park Ranger 2150 Suction sweeper...
  • Page 22 1. Loosen the nuts for adjusting the fittings. of additional side brush 2. Adjust the brush angle as follows: -Shorten the fittings to raise the brush front -Extend the fittings to lower the brush front. (Picture 1) Operator´s Manual Park Ranger 2150 Suction sweeper...

  • Page 23: Service And Maintaince

    Cleaning the turbine The rotary filter should be replaced by normal wear and tear or when it can no longer be cleaned. New filters can be acquired from an authorized Egholm distributor. Turbine replacement We recommend always letting an authorized Egholm distributor replace the turbine.

  • Page 24: Maintenance

    5. Install the new roller brush in reverse order and retighten the bolt. New roller brush can be ordered from an authorized Egholm distributor. Attention! Make sure to remove possible bands, strings etc. twisted round the roller brush. Operator´s Manual Park Ranger 2150 Suction sweeper...
  • Page 25 2. Remove the hose from the water tank. Water filter replacement 3. Loosen the two clips. 4. Remove the filter. New filter can be ordered from an authorized Egholm distributor. (Picture 3) 5. Fit the new filter in reverse order. Operator´s Manual Park Ranger 2150 Suction sweeper...

  • Page 26: Troubleshooting

    7. Defect pump. (Picture 2) 8. A fuse for the pump has blown. (Refer to the instruction manual for the Park Ranger 2150 basic unit) 9. Water hoses are leaky or fitted incorrectly. New pump and filters can be acquired from an authorized Egholm distributor.
  • Page 27 2. Dirt sticking to the filter hairs, the punched plate or the turbine. (Page 23) 3. The filter hairs or the turbine have been damaged. New filter, punched plate and turbine can be ordered from an authorized Egholm distributor. Operator´s Manual Park Ranger 2150 Suction sweeper...
  • Page 28 Blue on pin 31, red on pin 49 and yellow on pin 49a. (As on picture 3) Speaker Ensure connector is connected to the speaker. (Picture 4) 5. Contact your distributor for service/fault-finding. Check the pins on the relay Ensure connector is connected to speaker Operator´s Manual Park Ranger 2150 Suction sweeper...

  • Page 29: Conditions

    The warranty period for the materials and manufacture of this suction sweeper is 12 months from the date of purchase. In case of errors or defects on the machine within the warranty period, Egholm will carry out the necessary repairs at no charge to the customer, including materials and working hours, in accordance with the terms and conditions listed below.

  • Page 30: Complaints

    2. Remove the plastic and rubber parts and dispose of them in accordance with the applicable environmental legislation. 3. After the aforementioned parts have been removed, the machine is ready to be handed over to a local approved scrap merchants. Operator´s Manual Park Ranger 2150 Suction sweeper...

  • Page 31: Wearing Parts

    Wearing parts 5.1 Wearing parts - Park Ranger 2150 suction sweeper 09922730 Rotary fan grill 20204080 Centre brush 20204090 Flap for vacuum head 2150 09709600 Rotary filter 20203990 Spray holder tank 01100330 Support wheel 04703080 Vacuum hose 150 mm 01402100 Side-brush water sprayer...
  • Page 32 Wearing parts 5.1 Wearing parts - Park Ranger 2150 suction sweeper 09700330 Rubber rear edge Operator´s Manual Park Ranger 2150 Suction sweeper...

  • Page 33: Notes

    Notes Operator´s Manual Park Ranger 2150 Suction sweeper...
  • Page 34 Notes Operator´s Manual Park Ranger 2150 Suction sweeper...
  • Page 35 Notes Operator´s Manual Park Ranger 2150 Suction sweeper...
  • Page 36 Egholm A/S Transportvej 27 DK-7620 Lemvig T. +45 97 81 12 05 F. +45 97 81 12 10 www.egholm.eu info@egholm.dk 90101331-01 UK...
