ECO ETS – ASSEMBLY BUDDY
AUTOMATIC SWING DOOR DRIVE
 SYSTEM TECHNOLOGY FOR THE DOOR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ETS Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Eco ETS Series

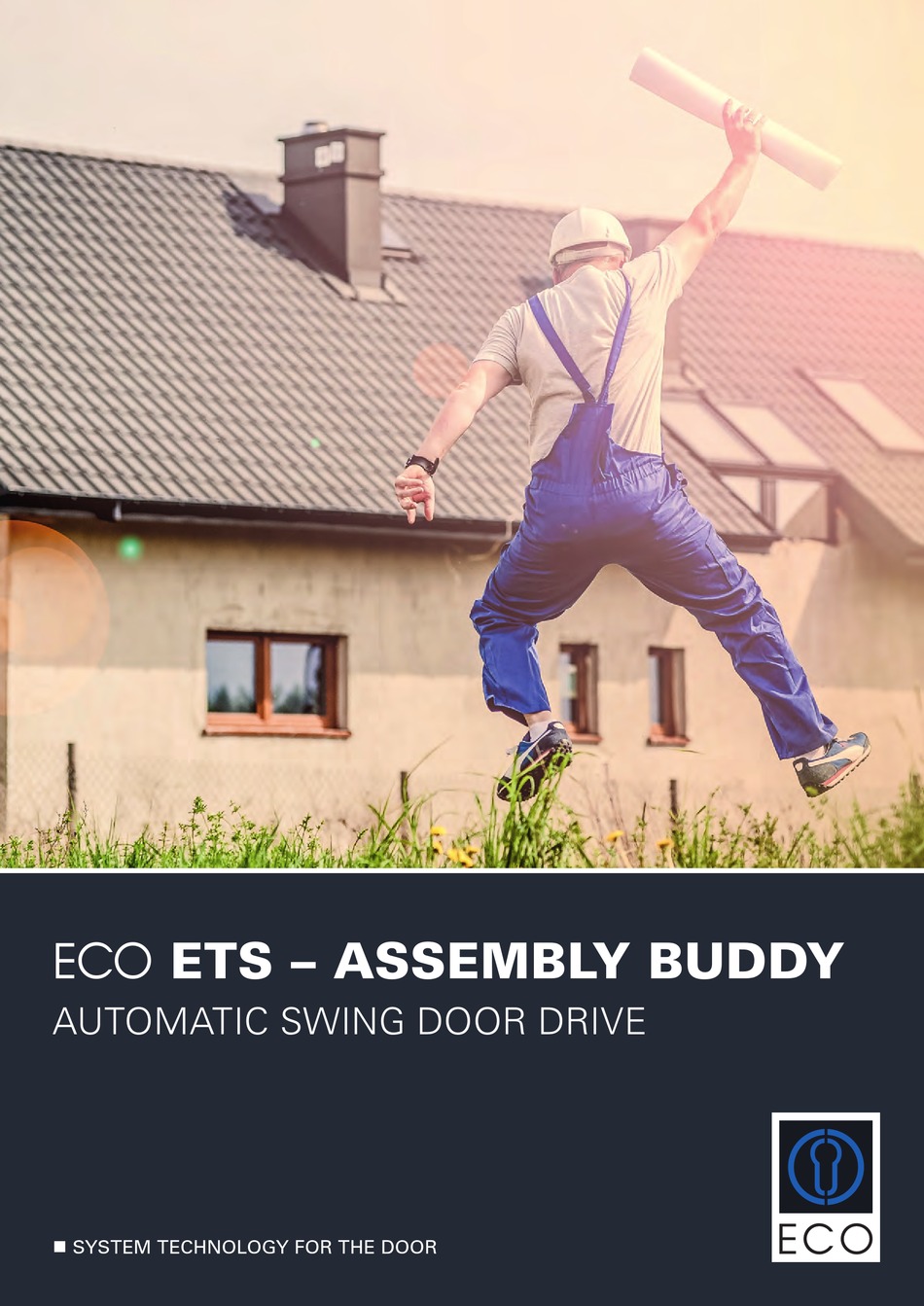

  • Page 1 ECO ETS – ASSEMBLY BUDDY AUTOMATIC SWING DOOR DRIVE  SYSTEM TECHNOLOGY FOR THE DOOR...
  • Page 2 ECO ETS – Assembly Buddy ELECTROMOTIVE SWING DOOR DRIVES ECO ETS Single-leaf swing door drives for standard and external doors Types of doors Tests / standards d i n 18650 e n 16005 ETS 42 ETS 73 (EN 2 – 4) (EN 3 –...
  • Page 3 Double-leaf drives for fire and smoke protection doors Types of doors Tests / standards ETS 64-R IRM-SRI Double-leaf drives Double-leaf drives for fire protection doors (complete sets) for standard and external doors ETS 64-R IRM-SRI (NG) ETS 42-2 ETS 64-R IRM-SRI (GSD) ETS 73-2 ETS 64-R IRM-SRI (GSZ)
  • Page 4 We won‘t leave you alone. From now on, you’ll always have him by your side, the functional ECO ETS – Assembly Buddy. And if we were not able to answer all your questions, please do not hesitate to contact us.
  • Page 6 ECO ETS – Assembly Buddy SHORT MANUAL ETS 73 AND ETS 64 1. Position the motor plug Depending on the application (mounting variant) the position of the motor plug must be adapted. See table: ETS 73 Montage- und Betriebsanleitung 4.8 Schliessfeder-Vorspannung einstellen Die Schliessfeder ist bei Auslieferung auf Mass X* = 26 mm vorgespannt.
  • Page 7: Mounting Variants

    3. Area for the latching function The mechanical latching speed can be adjusted via Poti (on the board, blue). the door has to close safely when it is currentless. Raise the latching spped if needed (see point 2). Important! Potentiometer Potentiometer Zuschlag latching speed...
  • Page 8 ECO ETS – Assembly Buddy SHORT MANUAL ETS 73 AND ETS 64 ETS 42 Montage- und Betriebsanleitung 5. Commissioning INBETRIEBNAHME Warnung: Während dem Einrichtvorgang, welcher nur durch Sachkundige durchgeführt werden darf, sind die Sicherheitseinrichtungen (Radar, Sensor, ...) ausgeschaltet! Vor Beginn des Einrichtvorganges muss sichergestellt werden, dass sich keine Personen Procedure oder Gegenstände im Gefahrenbereich des Türflügels befinden, um Verletzungen oder Beschädigungen zu vermeiden! 1. Switch on drive on the side cap (Power-up). Joystick First acknowledge the fire alarm for the fire protection variants.
  • Page 9 Procedure 10. Chose set up procedure (Teach) and confirm with OK. Teach 11. Start the set up procedure (Teach) and confirm with OK. Teach 12. The set up procedure starts automatically after 10 seconds (or directyl by moving the joystick Teach1 , without OK).
  • Page 10 ECO ETS – Assembly Buddy ETS 42 Montage- und Betriebsanleitung b) Bei Normalgestänge RS und SHORT MANUAL Gleitgestänge RG drückend: Antriebsmodul (mit der  Bezeichnung PUSH zum Chassisprofil (B) gerichtet) ETS 42 an den beiden vormon- tierten Schrauben (C) einhängen. Die Position der Bedieneinheit (E) muss vor- her entsprechend angepasst werden. ETS 42 Montage- und Betriebsanleitung 1. Mounting drive 4.11...
  • Page 11: Operating Modes

    fällt, ist der Antrieb mit einer Mit Hilfe des kann die Motordämpfung (kurz vor der so eingestellt werden, dass die Druckfeder genügend ins Türschloss zu drücken. Vorgehen: 90° und danach schliessen lassen. Falls nicht ins Schloss fällt, (auf der Steuerung) Zuschlag- dämpfung einstellen.
  • Page 12 ECO ETS – Assembly Buddy CABLE PLAN ECO ETS 73 MASTER ECO ETS 64-R MASTER...
  • Page 13: Cable Plan

    CABLE PLAN ECO ETS 64-R WITH 24V/48V SIGNAL...
  • Page 14 ECO ETS – Assembly Buddy CABLE PLAN ETS 42 Key lock External operating mode switch As option: Feedback motor lock Softswitch El Fb NO/NC Electronic lock currentless currentless unlocked locked Emergency open / close / stop Security presence stop according to ANSI acc.
  • Page 15 CABLE PLAN ECO ETS 73 OPTIONAL PRINT...
  • Page 16 ECO ETS – Assembly Buddy CABLE PLAN ETS 73 ETS 64 ETS 42 BEA 4 SAFE (SENSOR BAR) Terminals on drives Module cable Module 2 Module 3 Module 1 On hinge side: Function "stop" indicator lamp = red (Test output 1)
  • Page 17 CABLE PLAN ETS 73 ETS 64 ETS 42 BEA FLATSCAN LZR (LASER SENSOR)
  • Page 18 ECO ETS – Assembly Buddy CABLE PLAN ETS 73 ETS 64 ETS 42 ESCAPE ROUTE TERMINAL ”OFFLINE” WITH ETS, SURFACE HOLDING MAGNET AND E-STRIKE 230V AC Power supply Netzteil Netzteil 24VDC 24VDC 24VDC 24VDC (NOT) (NOT) Green D-BEDIX - D-BEDIX -...
  • Page 19 CABLE PLAN ETS 73 ETS 64 ETS 42 ESCAPE ROUTE TERMINAL ”OFFLINE” WITH ETS, MOTOR LOCK AND SURFACE HOLDING MAGNET 230V AC Netzteil Netzteil Netzteil 24VDC 24VDC 24VDC 24VDC (NOT) (NOT) Green D-BEDIX - D-BEDIX - D-BEDIX - D-BEDIX - White D-BEDIX + D-BEDIX +...
  • Page 20: Motor Locks

    ECO ETS – Assembly Buddy CABLE PLAN MOTOR LOCKS WITH DIRECT CONNECTION OF THE COIL...
  • Page 21 CABLE PLAN MOTOR LOCKS WITH OWN EVALUATION CONTROL...
  • Page 22 ECO ETS – Assembly Buddy CABLE PLAN MOTOR LOCKS WITH SEPARATE EVALUTATION CONTROL AND POWER SUPPLY...
  • Page 23: Modes Of Operation

    ETS 64-R Montage- und Betriebsanleitung OPERATION BEDIENUNG TS 64-R Montage- und Betriebsanleitung TS 64-R Montage- und Betriebsanleitung 7.1 Hauptschalter 7.3 Betriebsarten 7.3 Betriebsarten TS 64-R Montage- und Betriebsanleitung TS 64-R Montage- und Betriebsanleitung Der Antrieb wird mit einem eingebauten Hauptschalter (A) ausgeliefert. Mit diesem kann die Stromversorgung zum Antrieb un- Folgende Betriebsarten sind mittels Programmwahltaster anwählbar: TS 64-R...
  • Page 24 ECO ETS – Assembly Buddy CONNECTIONS Product Connections Illustration Terminals 27 - 30 E-Strike (FS/RS) Currentless locked Terminals 27 - 31 E-Strike E-Strike for escape routes Currentless unlocked Dead bolt switch contact NC contacts from RSK to terminals 28 and 32 (RSK) In the “Config menu”...
  • Page 25 Product Connections Illustration Control panel Bedix Bedix Cable specification shielded cable U72M or EIB-Y(St)Y 2x2x0,8 mm, twisted wires Note: Always use a seperate cable for the Bedix and connect all wires. Double if necessary Radio transmitter Transmitter Receiver and receiver blue black (COM) + (1)
  • Page 26: Drive Parameters

    ECO ETS – Assembly Buddy SETTINGS DRIVE PARAMETERS (PARAMETER) Parameter Description Setting range Default Velocity open (velocity open) 0…14 (5…50 °/s) Velocity close (velocity close) 0…14 (5…0 °/s) TOEx Hold open time opening element inside / outside (time hold opening element inside/outside) 0…60 s...
  • Page 27 SETTINGS MULTI-LEAF SYSTEMS (DOUBLE DOOR) Parameter Description Setting range Default DubleD Roll for closing sequence control (Master/Slave) and Sluice-side (A/B) MastrA SlaveA MastrB SlaveB AoSeq Opening sequence delay angle (slave) 0…110 ° 20 ° (only visible if DoubleD is active) AcSeq Closing sequence delay angle (Master) 0…110 °...
  • Page 28 ECO ETS – Assembly Buddy SETTINGS CONFIGURATION (CONFIG) Parameter Description Setting range Default Servo Support for manual opening. KEY opens automatically. Adjustable in 5 steps, depen- ding on leaf width and leaf weight. 1…5 APuGo Release angle Push&Go (angle push & go) OFF, 2…10 °...
  • Page 29 Parameter Description Setting range Default Unlock Impulse/permanent unlock (impulse unlock) IMPULS IMPULS PERMAN UnloCl Retract (unlock) the motor lock before closing and lock it when the door leaf is INACTI INACTI closed. PERMAN EL-Fb Feedback of electronic lock (electric lock feed back) N.O.
  • Page 30: Error Codes

    ECO ETS – Assembly Buddy ERROR CODES (DISPLAY) MISBEHAVIOUR WITH ERROR-NO Drive Description Cause Solution Testing time Reaction Encoder Canal A + B lost  Check encoder connection While driving  Check motor cable Short of A + B  Rotation direction of the motor doesn’t Disruptions correspond with the linkage.
  • Page 31 Operating Description Cause Solution Testing time Reaction Fullteach Parameter Ao, Rod, Invers Proceed Teach When changing required or dAxis changed the drive configu- ration Minimum opening angle Check locking / electronic lock During the Teach not reached Halfteach Parameter Vo changed Proceed complete, unobstructed When changing required...
  • Page 32: Safety Elements

    ECO ETS – Assembly Buddy ERROR CODES (DISPLAY) FAILURE WITH ERROR NUMBER Safety elements Description Cause Solution Testing time Reaction SER Test SER Test signal unsuccessful  SER short against ground Before closing  Check wiring of sensor or bridge SER too slow ...
  • Page 33  Falls If defective: Relaisprint 1 Replace or remove from configuration Radio print  Note:  Deleting the error 60 Fire protection see mounting instruction ECO ETS  print (Chapter 13.7.1) Closing sequence control / Sluice Description Cause Solution...
  • Page 34 ECO ETS – Assembly Buddy...
  • Page 36 ECO Schulte GmbH & Co. KG Iserlohner Landstraße 89 D-58706 Menden Telephone +49 2373 9276 - 0 Telefax +49 2373 9276 - 40 info@eco-schulte.de www.eco-schulte.de GO DIGITAL I‘m also digital.  bit.ly/2MhlcAR  SYSTEM TECHNOLOGY FOR THE DOOR...
