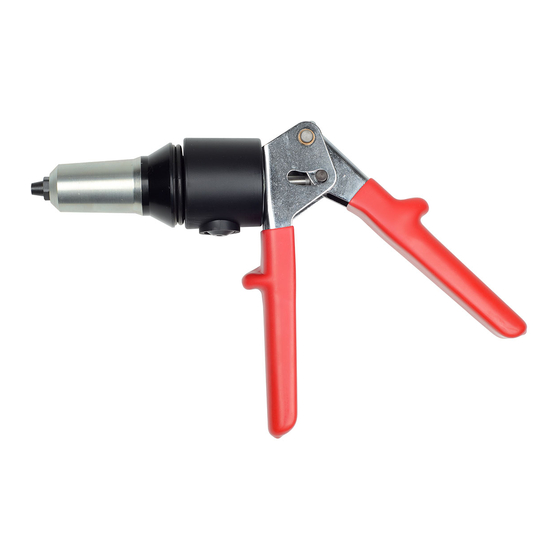

Huck HK-150 Instruction Manual

Installation tool
Hide thumbs
Table of Contents

Advertisement

Quick Links

HK-150 (HK1058)
Installation Tool
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HK-150 and is the answer not in the manual?

Questions and answers

Jerry Ylitalo
March 20, 2025

I need the part number for the "Pull Up Stud for a 10-32 Insert

0

Related Manuals for Huck HK-150

Summary of Contents for Huck HK-150

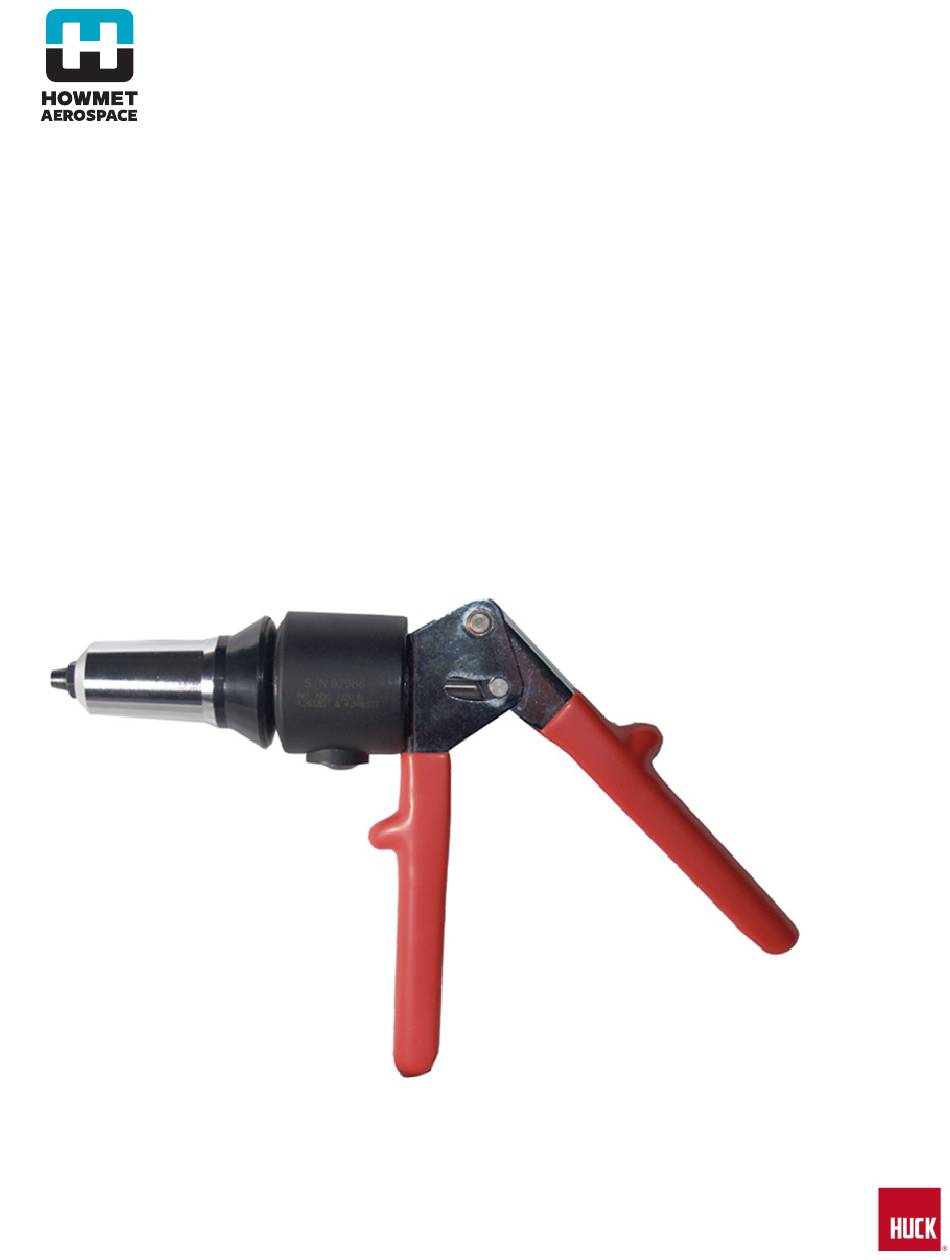

  • Page 1 HK-150 (HK1058) Installation Tool Instruction Manual...
  • Page 2 HK-150 Series Tools Arconic Fastening Systems and Rings (HK1058)

  • Page 3: Table Of Contents

    HK-150 Series Tools Arconic Fastening Systems and Rings (HK1058) ontents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 afety .

  • Page 4: Afety

    Reasonable care of installation tools by operators is an important factor 3. Huck equipment must be maintained in a safe in maintaining tool efficiency, eliminating downtime, working condition at all times. Tools and hoses...

  • Page 5: P Rinciple Of O Peration

    RIVETER IS DESIGNED FOR INTERMITTENT DUTY AND MAINTENANCE WORK ONLY. The HK-150 is a hydraulic tool designed to set from 1/8 inch up to and including 1/4 inch diameter steel, stainless steel, aluminum and plastic rivets by changing only the nose piece. The HK-150 has a rated pull pressure of over 3,500 lbs and one handed operation gives access to tight areas.
  • Page 6 The HK-150 has a .625 inch work travel and will set most rivets in one cycle. If the tool reaches the end of its travel before the rivet breaks, DO NOT continue pumping the handles on the tool. Release the tool by pressing RELEASE Button and then squeezing the handles.

  • Page 7: Perating I Nstructions

    HK-150 Series Tools Arconic Fastening Systems and Rings (HK1058) PeratIng nstructIons (continued) RIVET PINTAIL (INSIDE NOSE PIECE) RIVET BODY PUMP HANDLE WORK PIECE Figure 2 Ivet IntaIl eMoval HANDLES (SQUEEZE) Rivet Pintail Removal: Rivet Pintail Removal Once Rivet is installed, Pintail must be removed.

  • Page 8: J Aw I Nstallation And R Emoval

    HK-150 Series Tools Arconic Fastening Systems and Rings (HK1058) nstallatIon and eMoval The jaws are installed at the factory and should only need to be removed for periodic inspection and cleaning. To remove the jaws unscrew the NOSE TUBE from the tool in a counterclockwise direction...
  • Page 9 HK-150 Series Tools Arconic Fastening Systems and Rings (HK1058) nstallatIon and eMoval (continued) When jaws are in place, insert jaw holder into spring, being sure to keep large end of jaw holder pointing downward. SPRING JAW HOLDER THREE JAW SYSTEM...

  • Page 10: T Ool M Aintenance

    Apply a small amount of lubricant to the Jaws and inside of Jaw Holder prior to assembly. 7. The HK-150 should not be used at temperatures below 35°F unless it is first brought to room temperature and 2. To ease Nose Tube and Nose Piece installation, extend cycled several times.

  • Page 11: Roubleshooting

    HK-150 Series Tools Arconic Fastening Systems and Rings (HK1058) roublesHootIng Problem Solution 1.) Rivet pintail is stuck in tool First Step: Lightly tap nose against a hard surface while after breaking squeezing HANDLES and pressing down the RELEASING BUTTON with tool pointing downward Pintail should then fall out, see fig.

  • Page 12: Ptional Ccessories

    HK-150 Series Tools Arconic Fastening Systems and Rings (HK1058) PtIonal ccessorIes NOSE PIECES JAWS 202156 1/8” for Trim Molding Pop Rivets 202122 Two Piece Jaws 202159 3/32” & 1/8” Pop Rivets 202929 Three Piece Jaws 202190 1/8” Stand Off Pop Rivets 202158 5/32”...

  • Page 13: Iveter To N Utsetter C Onversion I Nstructions

    HK-150 Series Tools Arconic Fastening Systems and Rings (HK1058) onvertIng a Iveter to a utsetter The HK-150 can be converted from Tool Body Jaw Holder a riveter to a nutsetter by changing Nose Tube Iveter several of the nose components. No...

  • Page 14: 90 D Ay W Arranty

    HK-150 Series Tools Arconic Fastening Systems and Rings (HK1058) 90 d HK-150 r arranty on Iveter All Arconic Fastening Systems tools and parts have been carefully tested and checked at the factory and are guaranteed to be free from defects in material and workmanship, subject to the following conditions.
  • Page 15 . repair and suitable for their intended purpose. Huck shall not be liable for any loss or damage resulting THERE ARE NO WARRANTIES WHICH EXTEND from delays or nonfulfillment of orders owing to strikes, BEYOND THE DESCRIPTION ON THE FACE HEREOF.
  • Page 16 Howmet Fastening Systems’ written quotations, acknowledgments, and/or purchase orders. It is recommended Huck is a trademark of Howmet Aerospace Inc. and/or its subsidiaries. © that the user secure specific, up-to-date data and information regarding each application and/or use of such products.

This manual is also suitable for:

Hk1058
